700271-0001 Rev. G 05/13 1
1 Introduction
The DIGITIZE Electronic Telegraph Transmitter, 16 Zone (DET-16) is a solid-state
microprocessor coder for use over telegraph hard wire. The DET-16 is designed to operate
with a loop current from 50 mA to 750 mA.

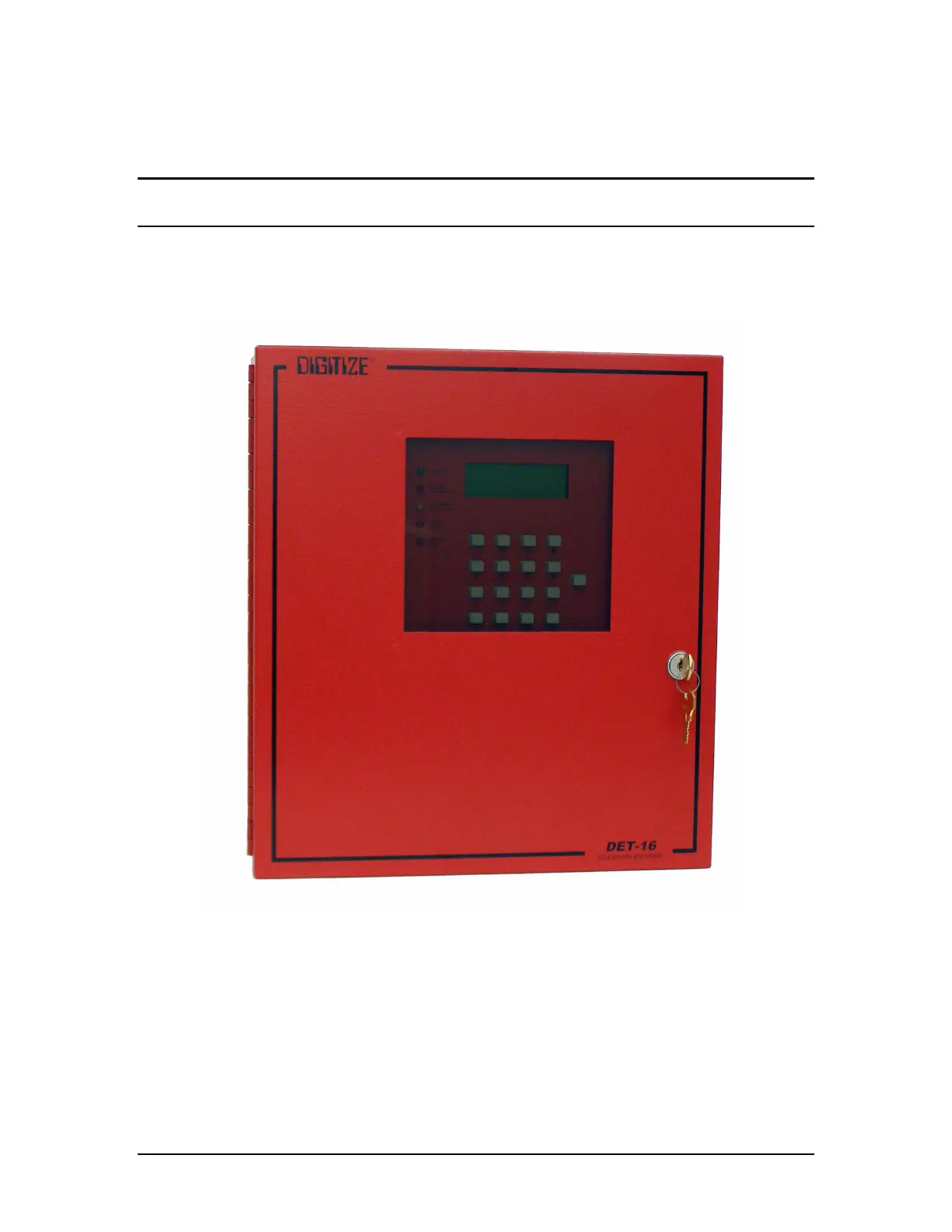

DET-16 Telegraph Transmitter
1.1 System Description
The DIGITIZE DET-16 is a Telegraph Transmitter for Fire and Security Alarms. The unit
has up to 16 End of Line (EOL) resistor zones and includes a CAM lock, AC transformer,
LCD Display with keypad, standby battery and built-in charger. The unit is housed in a steel
enclosure and is suitable for mounting in convenient, out of the way locations on an interior
wall. The DET-16 can be used on the same loop with mechanical Fire Alarm Boxes.
