Introduction Digitize Inc.
700271-0001 Rev. G 05/13 3

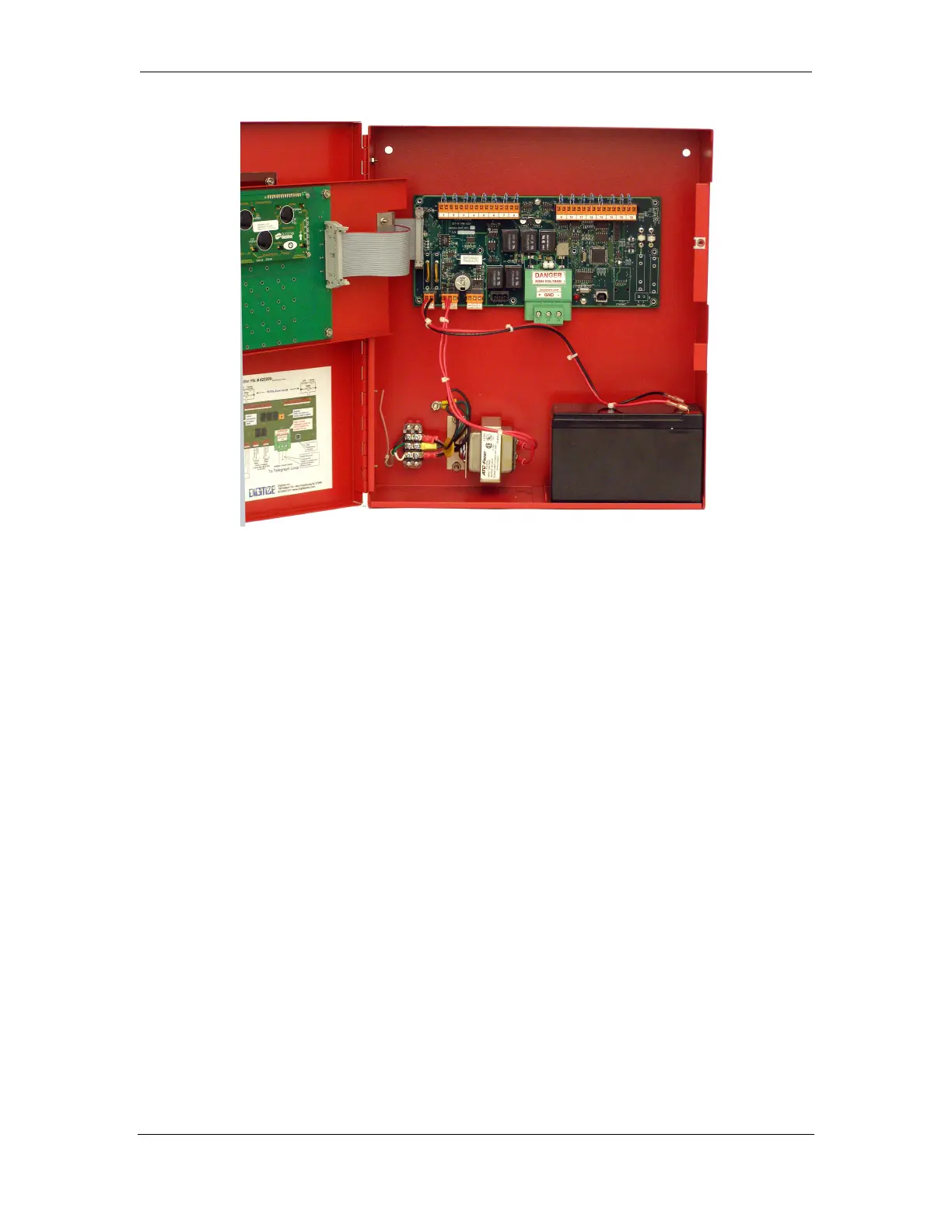

DET-16 Controller Bd. in Enclosure
1.2 Specifications
AC Power In 115 VAC 50/60 Hz @ 250 mA Max.
EOL Inputs 16 Supervised 4.7k Ohm End of Line Resistor Inputs
Telegraph Relay Outputs 1 Form C (SPDT) contacts rated for 6 Amps max. @ 24 VDC or
120 VAC.
Alarm Output Contacts 1 Form C (SPDT) contacts rated for 6 Amps max. @ 24 VDC or
120 VAC.
Trouble Output Contacts 1 Form C (SPDT) contacts rated for 6 Amps max. @ 24 VDC or
120 VAC.
Display 4 line x 20 character, 5 x 7 dots with yellow LED backlight.
Viewing Area: 76 mm Wide x 25.2 mm High.
Keypad 4 x4 Conductive Rubber Switchpad
LED Indicators Alarm (Red), Trouble (Yellow), Loop Problem (Yellow),
Watchdog (Red), AC/DC Input (Green)
Beeper 2,200 ± 300 hz. @ 85 dB.
Ethernet 10/100BASE-T Ethernet – Auto-Sensing
USB USB version 2.0
Standby Battery 7.5 Amp Hour Sealed Lead Acid, Digitize PN 900414-0004
Panel Size 13.5” wide x 15” high x 4“ deep
Construction Electro Galvanized Steel chassis, plastic front bezel
System Weight approx. 18 lbs. including 7.5 amp hour battery.
