Orange: (-) GWA (GROUND WHEN ARMED) OUTPUT
This wire supplies a (-) 500mA ground output as long as the system is armed and while the remote start is
active. This output ceases as soon as the system is disarmed or remote start disengages. The GWA can be
hooked up to a voice module or any accessory which requires a ground when armed.
Note: The Ground When Armed during remote start feature can be programmed off (see Anti-grind Output
in Feature Menus for more detail).
White: (+) or (-) PARKING LIGHTS OUTPUT
This wire should be connected to the parking lights wire in the vehicle. It activates when the system is armed/
disarmed, remote started and when the alarm is triggered. It can be set for a (+) or (-) output by using the
supplied jumper taped to the main unit. In the (+) setting the system will support up to a 10A circuit, in the

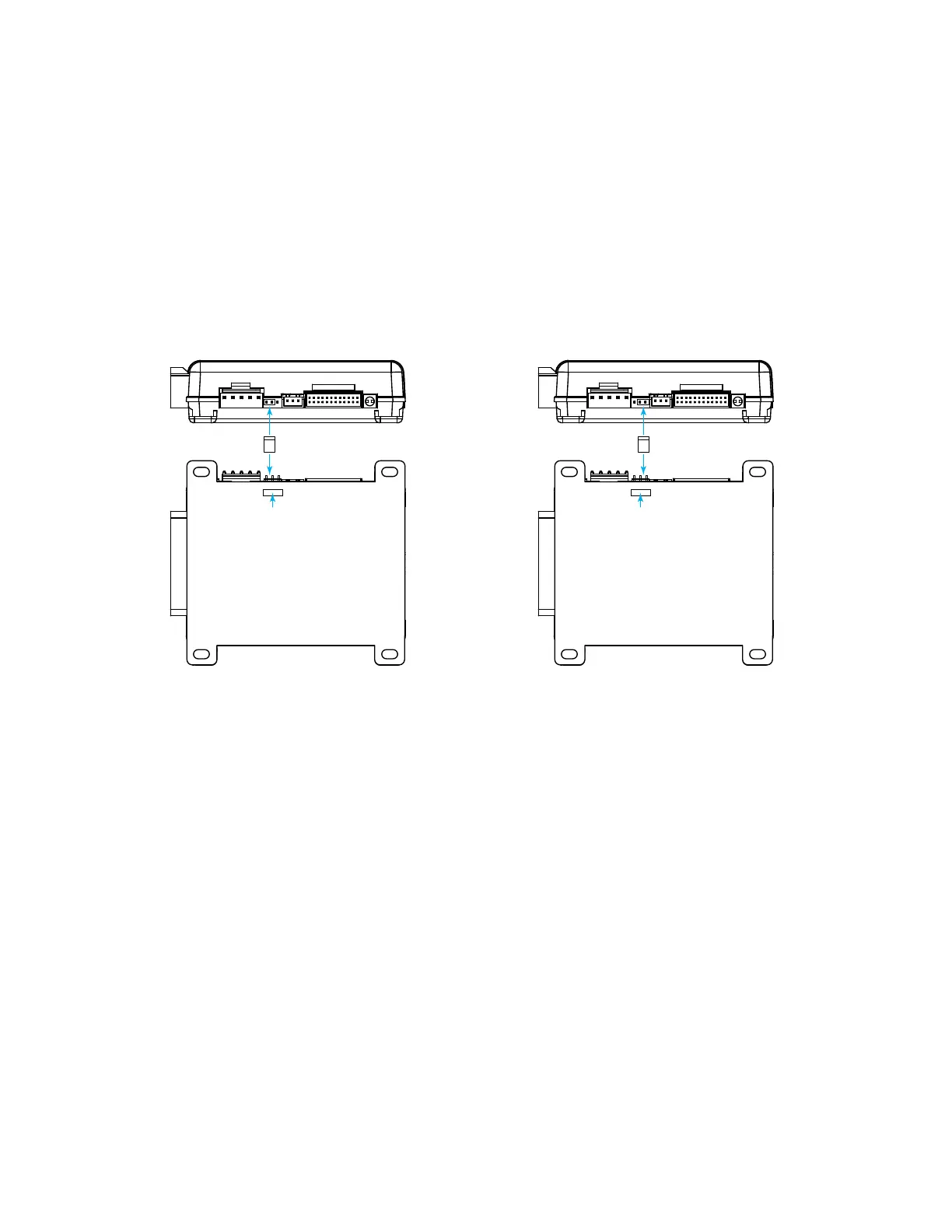

(-) setting the system supplies a 200mA output. See the following diagram for setting the lights flash polarity.
Negative (-) Polarity
Bottom View of 5X05
Polarity Label
(-) (+)
Side View of 5X05
Side View of 5X05
Polarity Label
(-) (+)
Positive (+) Polarity
Bottom View of 5X05
Polarity Label
(-) (+)
Bottom View of 5X05
Side View of 5X05
Polarity Label
(-) (+)
Note 1: The light flash polarity label can be found on the bottom of the 5X05 hous-
ing in the location shown in the above diagram.
Note 2: For parking light circuits that draw 10A or more, the jumper must be set to
a (-) light flash output and an external SPDT relay (P/N 8617) must be used to drive
the circuit in the vehicle.
Auxiliary/Shutdown/Trigger Harness, 24-pin connector
Important: Never connect 200mA low current outputs directly to a motor or high current device WITHOUT
a relay.
Pink/White: (-) IGNITION 2/ACCESSORY OUTPUT
This (-) 200mA output wire works in conjunction with the Pink/White wire in the heavy gauge harness. It
comes factory set as Ignition 2 and can be programmed as an Accessory output. It is typically used to activate
a relay for an additional (+) Ignition or Accessory wire in the vehicle (see 2nd ignition/Acc output in Feature
Menus for more detail).
Note: Programming this wire also affects the timing of the heavy gauge Pink/White wire and vice-versa.
Blue/White: (-) 2nd STATUS/REAR DEFOGGER OUTPUT
This (-) 200mA output will activate as soon as the remote start process begins and will stay active while the
remote start is on, it is typically used to activate a module or any accessory which requires a ground during
the remote start sequence. This wire can also be programmed to activate a defogger circuit in the vehicle (see
To Next Page
