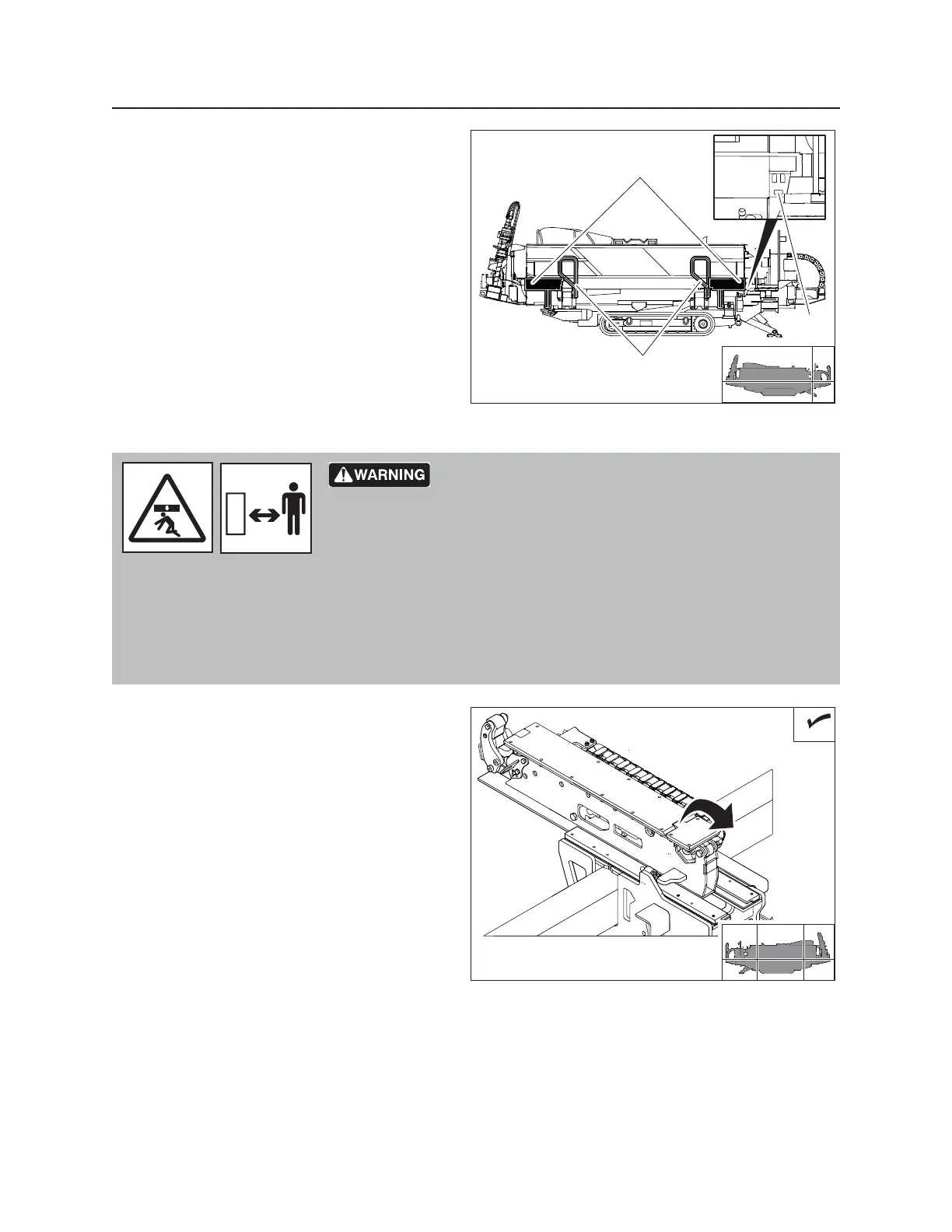

Systems and Equipment - 180 JT40/JT40 All Terrain Operator’s Manual
Pipeloader
Add Single Pipe
1. Move row select to last row.
2. Lower shuttle covers (2).
3. Lower lifter covers (1).
4. Press right side of auxiliary pipe load
restricted operating mode switch (3) to
override drill operator control of shuttles
and lifters and move control to single load
switches. See “Auxiliary pipe load
restricted operating mode switch” on
page 73.
5. Move shuttles out fully.
6. Rotate auxiliary pipe loaders into position
as shown.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
To help avoid injury:
• Drill pipe is heavy. Have enough people on hand to manually add or remove single pipe to pipe box.
• Do not attempt to move shuttles until everyone is at least 10 ft (3 m) away from machine.
• Ensure switch operator is standing clear of all moving parts while adding pipe.
j59om109w.eps
2
1
3
j59om110w.eps
To Next Page
