Change Auto Lubricator Pail
Check pipe auto lubricator TJC level and change
pail as needed.
To change pail:
1. Unlatch auto lubricator pail from pump (1).
2. Lift pump and lid assembly (2) up guide pole
and secure on shoulder bolt (3).
3. Remove follower plate (4) from existing pail.
4. Install follower plate into new pail. Press firmly
onto follower plate until TJC comes up in center
opening.
5. Remove pump and lid assembly from shoulder bolt and lower into pail, guiding pump into center hole
of follower plate.
6. Relatch auto lubricator pail to pump.
7. Remove cap from discharge tee on pump. Operate pump until discharged TJC is free of air pockets.
Replace cap.
Check Pipeloader Inserts
Check pipeloader inserts at indicated areas for
wear. Flip gripper inserts for longer wear, or replace
as needed.
NOTICE: Use only genuine Ditch Witch
®
tool joint compound to maintain warranty. See “Recommended
Lubricants/Service Key” on page 202 for more information.
IMPORTANT: Ensure bolts are tightened evenly
to enable inserts to slide freely and wear evenly.

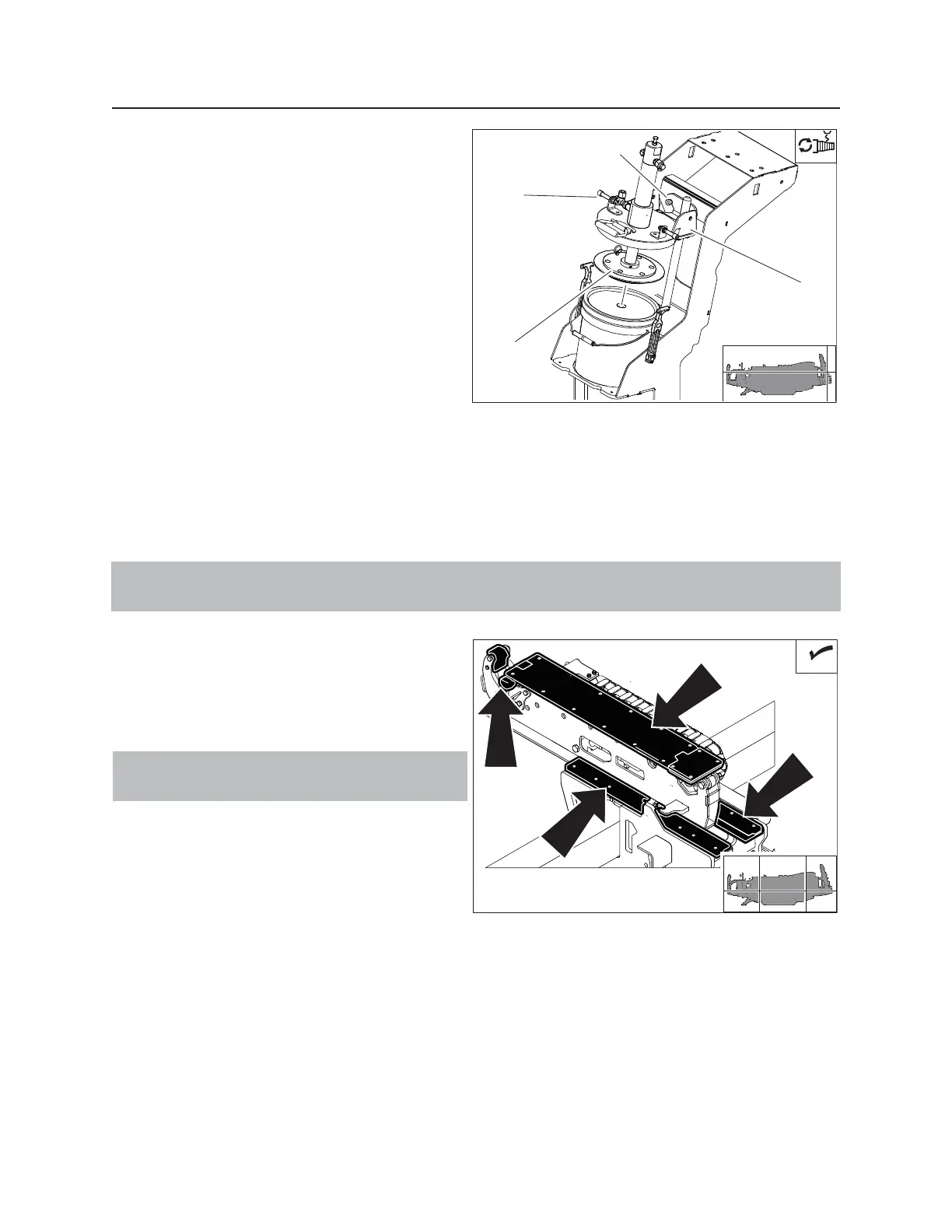

j59om050w.eps
