JT40/JT40 All Terrain Operator’s Manual Service - 231
As Needed

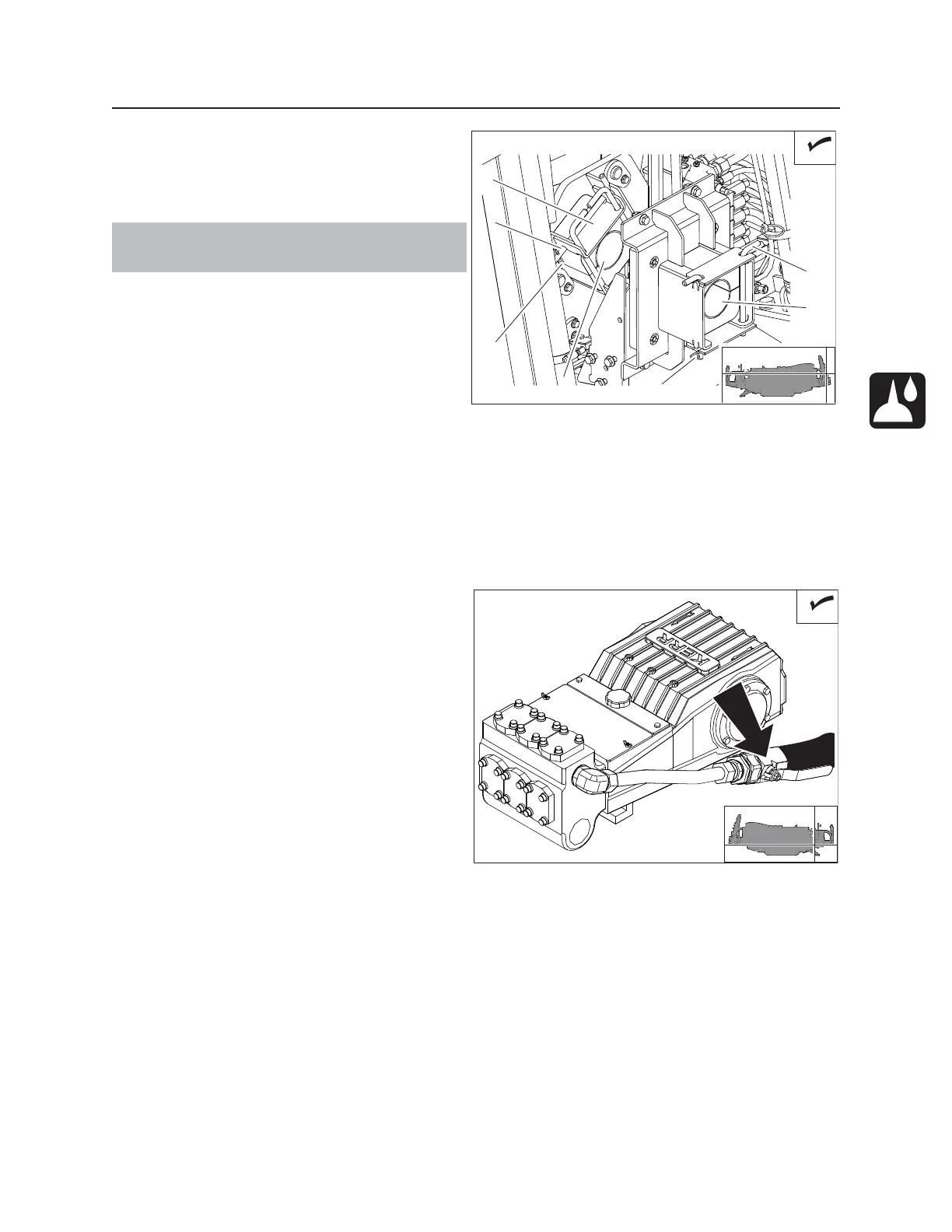

Check Pipe Guide Inserts
Check pipe guide inserts for wear. Rotate inserts for
longer wear, or replace as needed.
To replace front pipe guide inserts:
1. Remove lynch pins (5).
2. Remove pins (6) and open pipe guide.
3. Remove guide inserts.
4. Replace in reverse order.
To replace rear pipe guide inserts:
1. Remove pin (1) to remove pin (2).
2. Slide plate (3) up to remove guide inserts (4).
3. Replace in reverse order.
Check Fluid Pump Ball Valve
Check ball valve for leaks. Tighten stem packing as
needed. Contact your Ditch Witch
®
dealer for
replacement packing.
NOTICE: Failure to replace worn pipe guide
inserts may cause damage to the machine.
j59om051w.eps
1
5
6
22
33
44
7
j59om103w.eps
