DITEC DAS200TRF User Manual

8
5
4
7
6
3
2
1
15
14
13
12
11
10
9
17
16
19
18
22
21
20

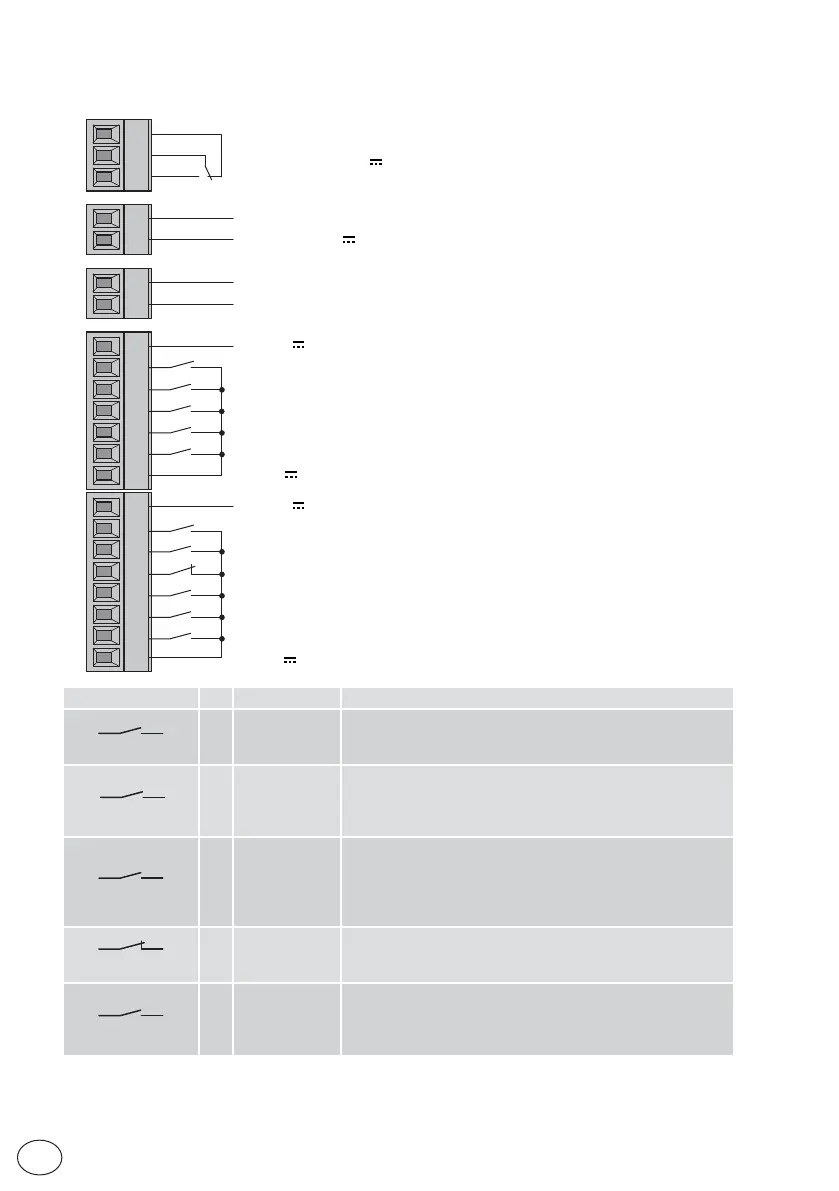

NC
COM
NO
Fire
External alarm loop
12-24V
Fire
Open
(+) 24V
(-) 0V
Auto partial
Exit
Off
USE ONLY to have
priority on the function
selector or in the absence
of function selectors
Reset
Battery wake up
Sustainable drive mode OFF /mode selector enable
Emergency open
Open /Close / Inner impulse 2 monitoring / Interlock in
"Nurse" function / Interlock out
Close/ Inner impulse 2
max 15
error / status
42V~ / 30V (SELV)
RESISTIVE LOAD ONLY
}
}
}
}
(-) 0V
(+) 24V
Bistable lock
(auxiliary coil)
28
EN
IP2348EN
8.4 DAS902MP commands
Contact Description
1
2
(ref. parameter 93)
N.O.
a) CLOSE
b) INNER IMPUL-
SE 2
a) Close impulse.
b) When two inner impulses are to be used. Sets input to inner
impulse 2.
1
3
(ref. parameter 90)
N.O.
a)“NURSE”
FUNCTION
b) INTERLOCK
OUT
a)The door will open to partial opening in operation mode se-
lections EXIT, AUTO and PARTIAL.
b) When configuring for interlock also set parameter 6A= 01.
1
4
(ref. parameter 91-92)
N.O.
a) OPEN/CLOSE
b) INNER
IMPULSE 2
MONITORING
c) INTERLOCK IN
a) One impulse opens the door the next impulse closes the door.
Available in mode EXIT, AUTO, PARTIAL.
b) Inner impulse 2 monitoring for the second inner impulse. Set
also parameter 93= 03.
c) When configuring for interlock also set parameter 6A= 01.
1
5
(ref. parameter 96)
N.C.
EMERGENCY
OPEN
Used to give opening (fireman’s opening) impulse to the door in
any operation mode selector setting. With electrical emergency
unit also during power failure.
1
6
(ref. parameter 99)
N.O.
a) SUSTAINABLE
DRIVE MODE OFF
b) MODE SELEC-
TOR ENABLE
a) Disables Sustainable drive mode.
b) Enable the Mode Selector with a key (only COM500ER).
