9.2 Status indication on the display
The display shows the different impulses that are active. The status viewing starts with showing
“ ” as for Status, then one or many numbers representing the different active impulses in to
the operator.
The different impulses are:
00= Key Impulse
01= Inner impulse
02= Outer impulse
03= Synchronisation
04= Interlock in impulse
05= Presence impulse 1
06=Presence impulse 2
07= Side Presence impulse 1
08= Side Presence impulse 2
09= Stop impulse
10= Emergency open impulse
13= Close command
14= Nurse impulse
24= Push and Go impulse
25= Open-Close impulse
28= Fire impulse
47= Interlock Disable (not used)

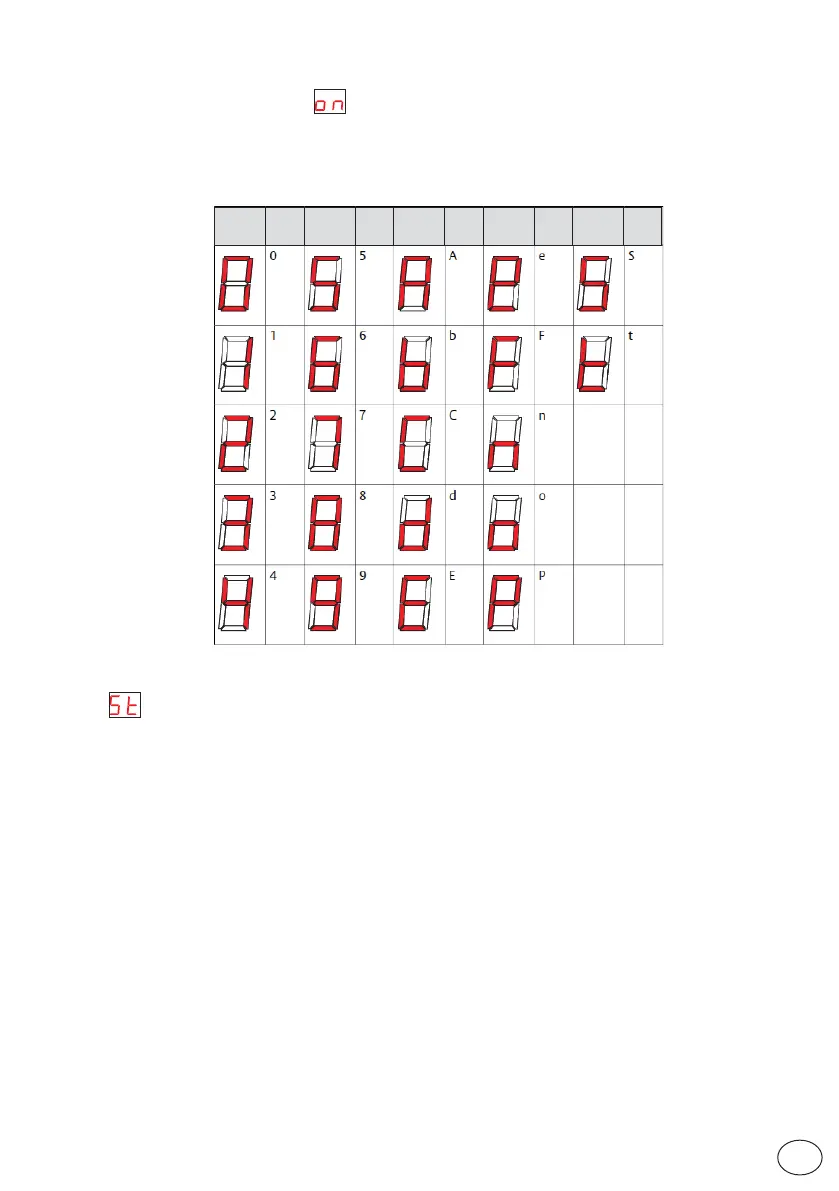

Display
Char
act er
Display
Char
act er
Display
Char
act er
Display
Char
act er
Display
Char
act er
9.1 Display test
a. When the display shows " ", push the SELECT button and each of the two display win-
dows make a rotating test pattern.
b. Verify that all seven segments of the two display windows are lit during the test. If not there is
a risk of misjudgment of the digits shown in a defective display.
c. When the display test is finalized the display shows two steady digits indicating the first parameter.
