DITEC DAS200TRF User Manual

6
8
DAS200TRF DAS200TRF
9
17
17
14
16
7
13
1211
1016
15
7
EN
IP2348EN

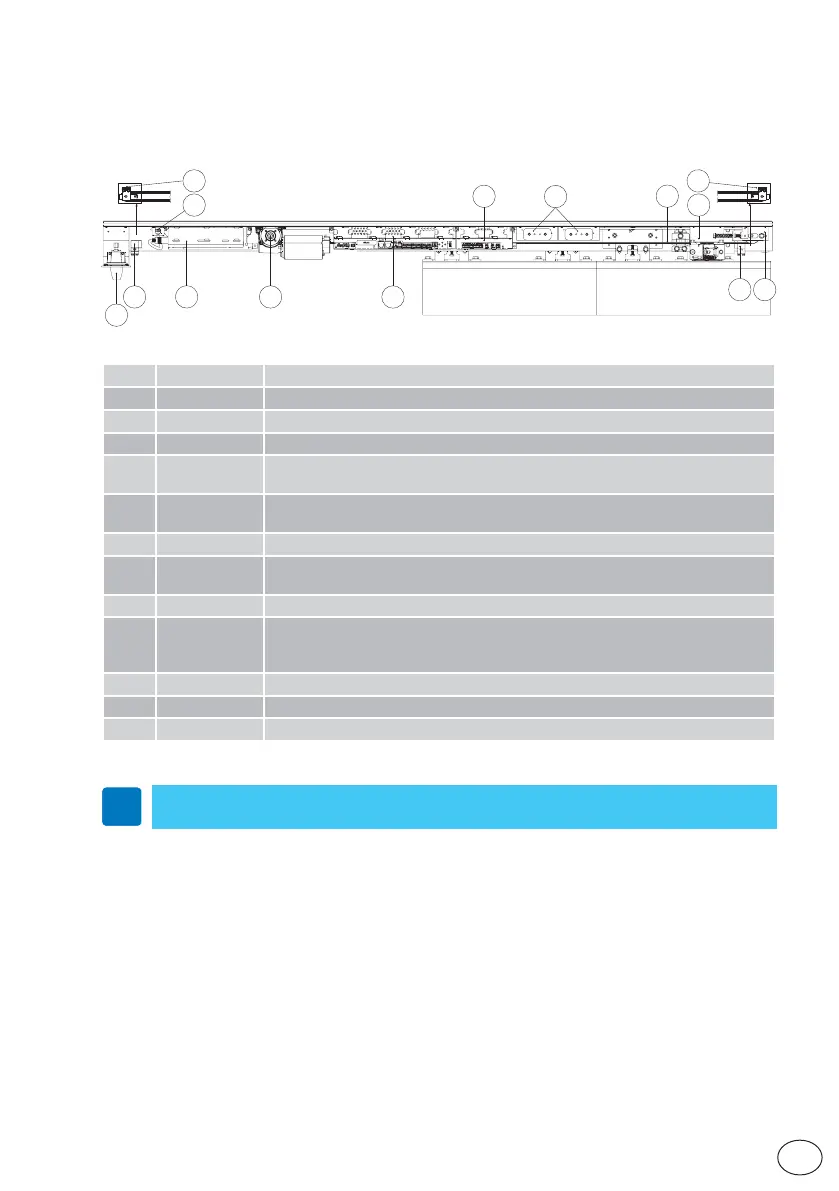

4. Main components
i
NOTE: the given operating and performance features can only be guaranteed with the
use of DITEC accessories and safety devices.
Ref. Code Description
6 DASLOKSB Built-in manual release device (optional)
7- Mains power supply
8 1DAS20HAL 150W power supply unit (PS)
9
1DAS20HMR
1DAS20RGMR
DAS200T-DAS200TRF gearmotor
DAS200TRG gearmotor
10
1DAS20HDQE
1DAS20RGQE
DAS200T-DAS200TRF (MCU) control panel
DAS200TRG control panel (MCU-ER)
11 DAS902MP DAS902MP plus module (optional)
12
DAS901BAT1
DAS902BAT2
12V batteries (set parameter 43= 05)
24V batteries (the fuse in the cable harness is T10A)
13 DAS802B50 Drive belt
14
DAS802LOK
DAS802LOKA
DAS802LOKB
Standard lock. Locked with power - LD
Anti-panic lock. Locked without power - LDP
Bi-stable lock-LDB
15 - Belt transmission
16 - Mechanical stops
17 - Pulley for rubber band (DAS200TRF)
