DITEC DAS200TRF User Manual

40
EN
IP2348EN

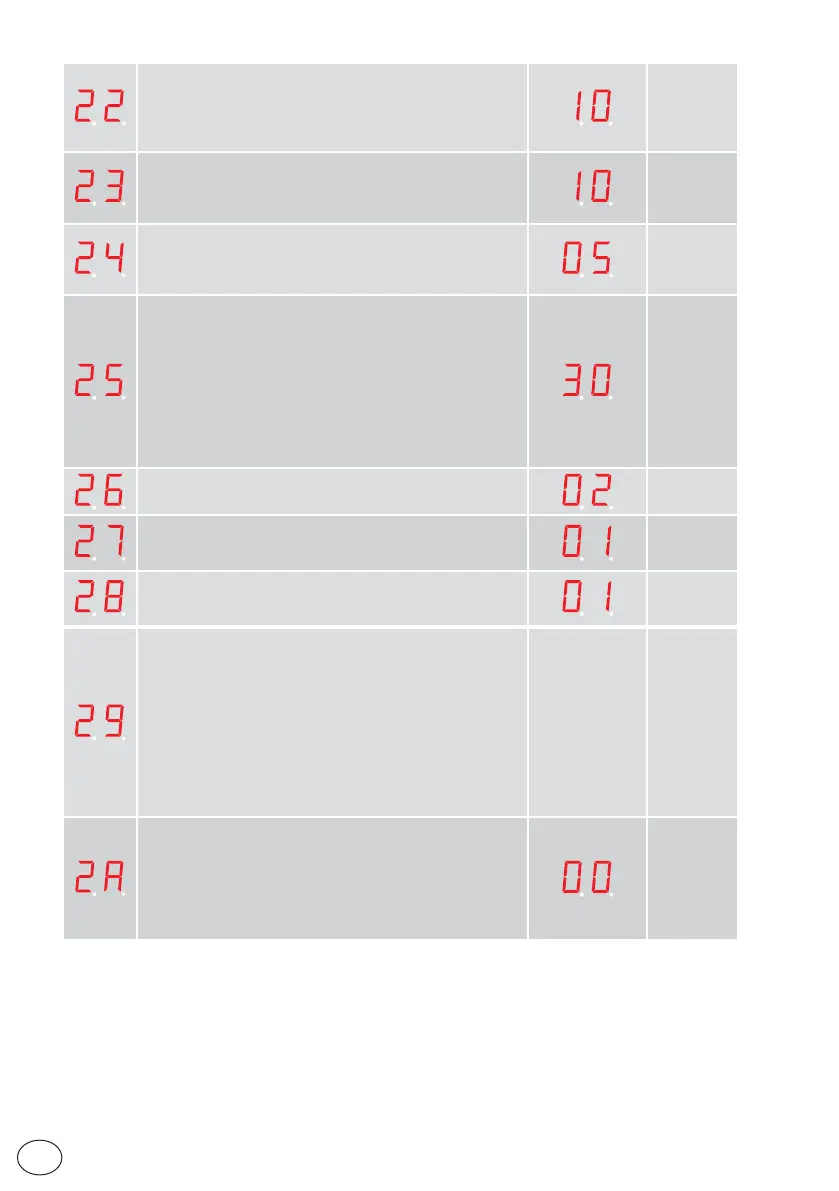

Auto Width Activation Time (00÷60s)
Auto width activation time is available if parameter 61=01 "Auto
Width" is selected. If the door has not closed during the auto
width activation time and the door is open or opening the door
will open to full open door.
Auto Width Resume Time (00÷60s)
When the door have been closed during the auto width resume
time, the next opening impulse will open the door to partial
open position. Only available if parameter "AutoWidth" 61= 01.
Jam Hold Time (00÷10s)
Sets how long time the door shall be stopped when a jam is
detected during opening and also the time until the door can
restart after a Stop impulse.
Interlock Disable Time (00÷60s)
The parameter controls the time that interlock is valid.
Only active if “Interlock Function” parameter 6A = 01.
00= If the time is set to 00, interlock is always active.
01-60= The “Interlock Disable Time” starts to count down the
moment a valid opening impulse is made on the first door.
If the first door does not close during the “Interlock Disable
Time” the second door is not interlocked any more and will
also open. When both doors are closed Interlock Disable
Time will be reset.
Presence Hold Open Time (00÷60s)
Hold open time for Presence impulses 1&2.
Side Presence Input 1 Configuration (00÷01)
00= N.O.
01= N.C.
Side Presence Input 2 Configuration (00÷01)
00= N.O.
01= N.C.
Side Presence Impulse monitoring (00÷02)
Side presence impulse monitoring is a demand to be activated
according to EN16005 or DIN18650
00= No monitoring of Side Precense impulse. Set to “00” if no
monitoring of Side Presence impulse sensors is required or
if no Side Presence impulse sensors are installed.
01= Side Presence impulse 1. Set to “01” if one Side Presence
impulse sensor shall be monitored (if only one sensor, it has
to be connected to terminal 2, Side Presence impulse 1).
02= Side Presence impulse 1 and 2. Set to “02” if two Side
Presence impulse sensors shall be monitored.
TO BE SET
Side Presence Function (00÷01)
00= Safe Speed. If a Side Presence Impulse is activated during
opening, the door shall continue to open with a safe speed
(0,1 m/s).
01= Stop Door. If a Side Presence Impulse is activated during
opening, the door shall stop and be stopped during the set
Presence Hold Open Time (see parameter 26).
