DITEC EL500E - Secondary Movable Safety Edge; Auxiliary Relay Management

ATTENTION: the movable safety edge must be connected before selecting PARAMETER 23, but it must not be
activated. If this happens, the station sends back an error signal by showing the
code on the display.
00:00.
88:00
88:00 88:00
88:01
1 2 3 4 5
02
03
04
03
23
IP2358EN
13.3 SECONDARY MOVABLE SAFETY EDGE
Connection of the secondary movable safety edge: in case of 8.2KΩ resistive or pneumatic movable safety edge (SOFA
and SOFB series), connect the conductors of the safety edge to the terminals 3 and 4 of connector X20.

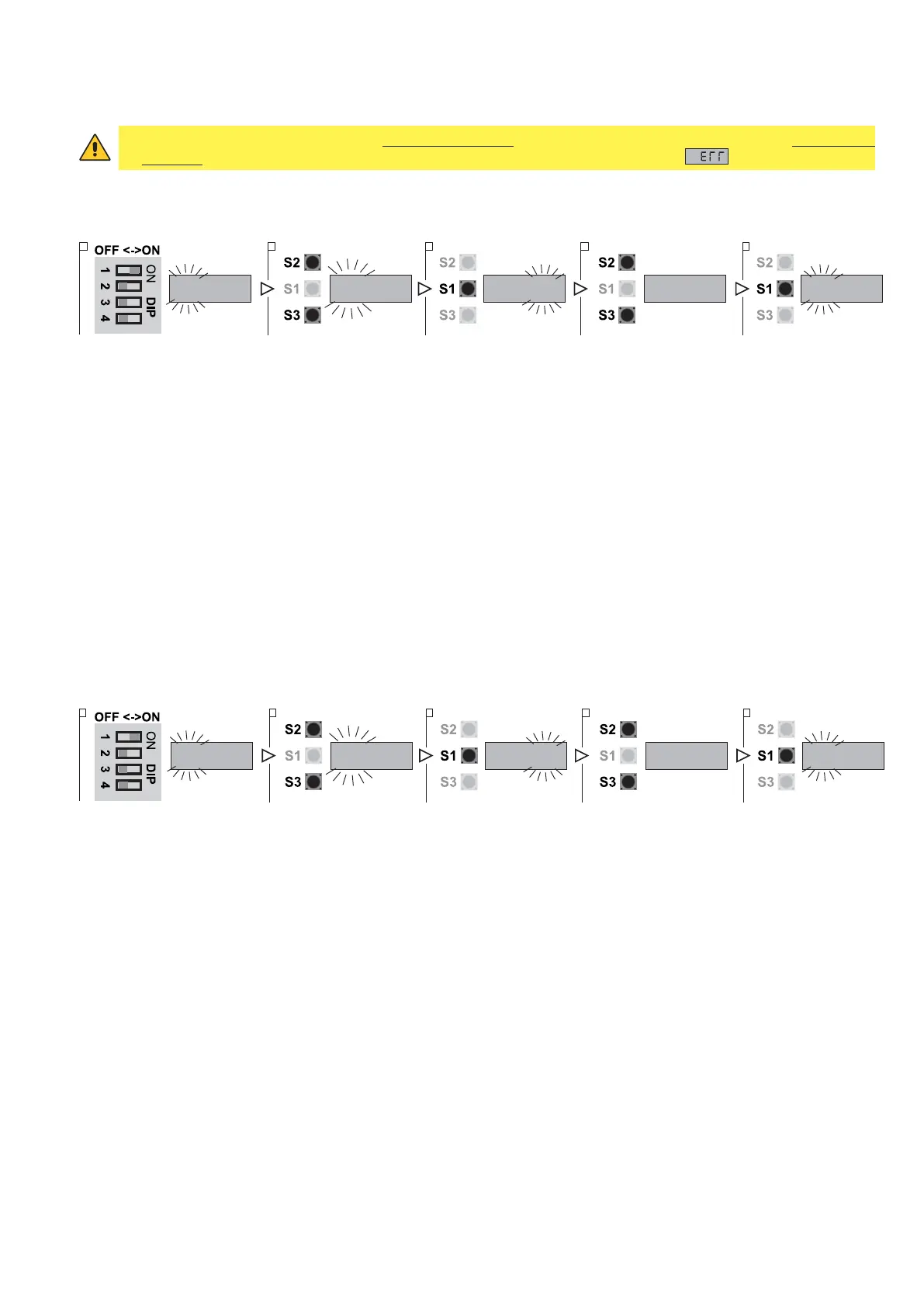

1. Put DIP 1 (S4) in ON position, PARAMETER digits start blinking.
2. Using the buttons OPEN (S2) and CLOSE (S3) select the parameter 23.
3. Access the field VALUE pressing STOP (S1).
4. Select the preferred value by pressing buttons S2 and S3:
- VALUE 00: no secondary movable safety edge connected.
- VALUE 01: the secondary movable safety edge works in parallel to the primary */**.
- VALUE 02: the secondary movable safety edge stops the door while it is opening*.
- VALUE 03: the secondary movable safety edge stops the door while it is closing by inverting the direction*.
5. Press STOP (S1) to confirm.
6. To leave the set-up mode, place the DIP1 in OFF.
NOTES
* The secondary movable safety edge must be PNE/air or 8.2KΩ type. Anyway, it has to be of the same type of the
primary movable safety edge. If parameter 88:03 (electromechanical lock) is set, it will not be possible to connect
a secondary
movable safety edge.
** For the anti-shears function, please connect a photocell instead of a movable safety edge.
13.4 AUX RELÈ MANGEMENT (max 230Vac/5A)
Through PARAMETER 88 it is possible to determine the behavior of relé K3.
1. Put DIP 1 (S4) in ON position, PARAMETER digits start blinking
2. Using the buttons OPEN (S2) and CLOSE (S3) select the parameter 88
3. Access the field VALUE pressing STOP (S1)
4. Select the preferred value by pressing buttons S2 and S3:
- VALUE 00: active relé while the door is moving
- VALUE 01: active relé while the door is in the DOWN limit switch position
- VALUE 02: active relé while the door is in the UP limit switch position
- VALUE 03: the relé is used for the electromechanical lock: it activates for one second during the opening and ONLY
if the door is closed
5. Press STOP (S1) to confirm
6. To leave the set-up mode, place the DIP1 in OFF
The same thing happens if you choose a parameter that does not correspond to the connected terminals.
It is possible to determine the type of secondary movable safety edge used on the door through PARAMETER 23.
00:00.
23:00
23:00 23:00
23:01
1 2 3 4
5
02
03
04
03
