16 SIGNAL VISUALIZED ON THE DISPLAY
The display will in run mode show status of limits, some inputs or error codes if they occurs.
When power up the software version is showed shortly.

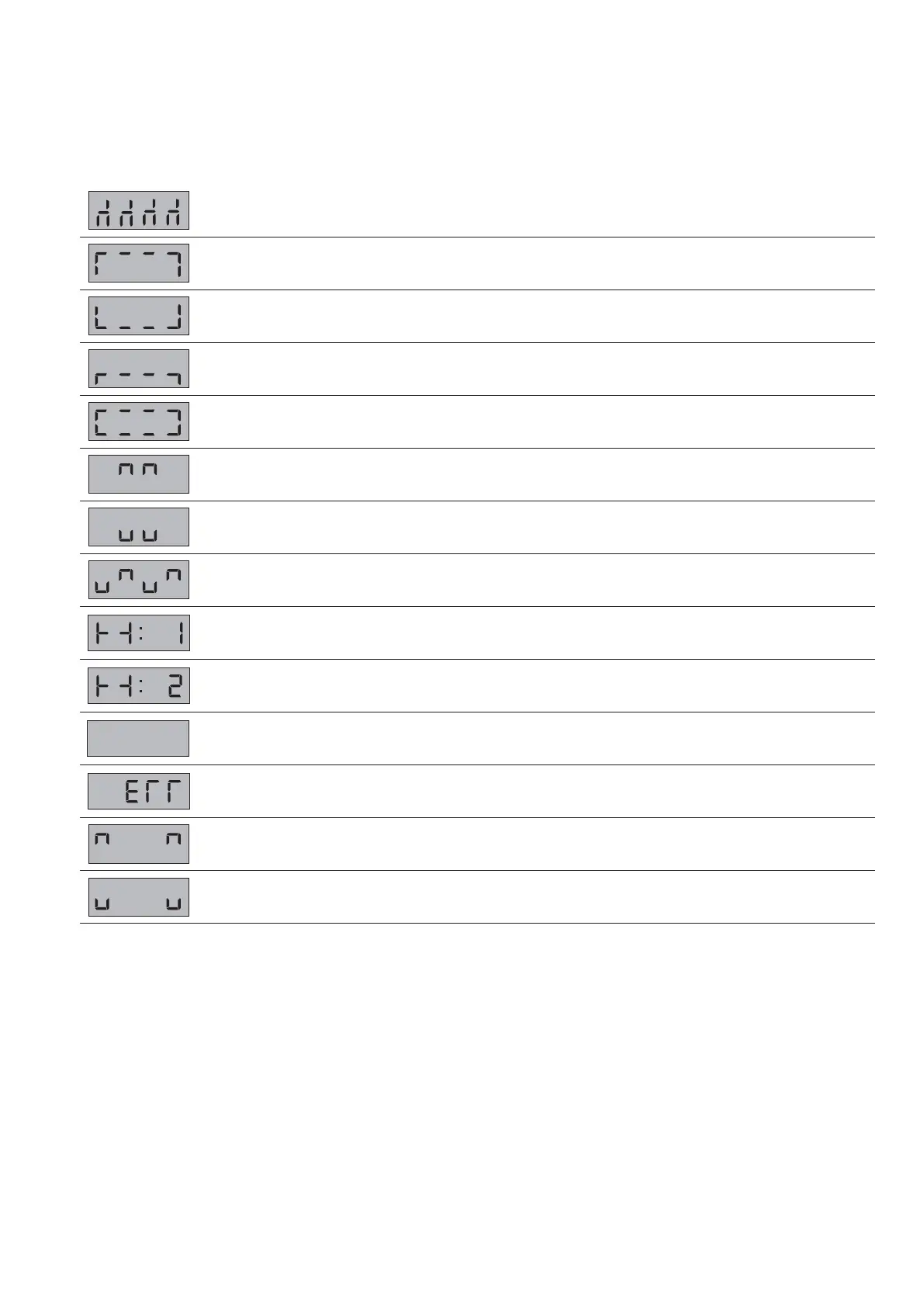

DISPLAY DESCRIPTION
• Nothing active. (4 chairs symbol)
• Door is stopped between limits and no errors are found.
Open limit active (S2)
Close limit active
Partial opening
Active stop
OPEN push-button active (S2)
CLOSE push-button active (S3)
GO function active
(NOTE: that the door only can be closed by GO function, when photocell is installed)
Photocell 1 active
Photocell 2 is external photocells mounted in the screw terminals X12.
Photocell 2 active
Photocell 2 is external photocells mounted in the screw terminals X3.
____
Safety Edge active
Safety list not mounted correct / wrong selection in parameter 21
Door running up
Door running down
