DITEC EL500E - Optional Radio Receiver Module; Go Function Operation

28
IP2358EN
15.3 ADDITIONAL RADIO RECEIVER MODULE NRGZENX1 (OPTIONAL)
The control unit can be radio operated thanks to the ZEN transmitter. The BIXMR2 storage module of the radio receiver
can contain up to 200 transmitters. The ZEN transmitter must be matched to the NRGZENX1 radio receiver already
connected to slot X7 (see page 6).
Please look at the instructions attached to the NRGZENX1 radio receiver in order to connect it to the control unit and
to match it to the transmitter.

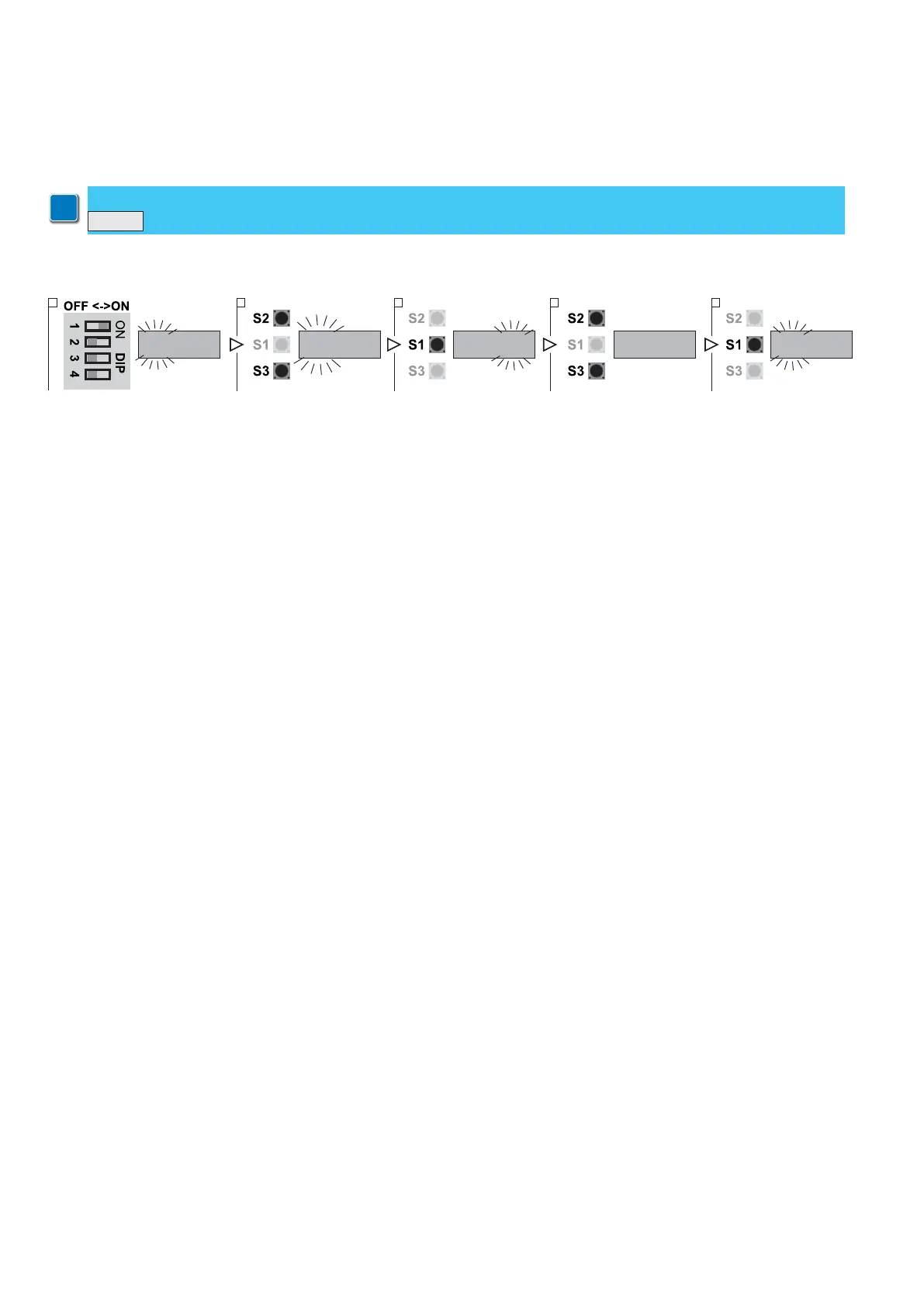

Once the NRGZENX1 radio receiver is inserted, you can set up its operation mode through PARAMETER 35 (param-
eter 35 is visible ONLY if the photocell is active through parameter 31):
1. Put DIP 1 (S4) in ON position, PARAMETER digits start blinking
2. Using the buttons OPEN (S2) and CLOSE (S3) select the parameter 35
3. Access the field VALUE pressing STOP (S1)
4. Select the preferred value by pressing buttons S2 and S3:
- VALUE 00. MODE OF OPERATION “CONDOMINIUM”
The signal of the transmitter always commands the opening, except when the door is already com-
pletely opened. In this case it commands the closure.
- VALUE 01. MODE OF OPERATION “CONDOMINIUM” + STOP
The signal stops the movement of the door ONLY while opening.
- VALUE 02. MODE OF OPERATION “ONLY OPENING”
The signal of the transmitter ONLY activates the opening of the door. If the door is closing, the signal
changes the movement till the UP limit switch position has been reached.
- VALUE 03. MODE OF OPERATION “STEP-BY-STEP”
Every time the signal of the transmitter is activated, it accomplishes the following commands:
OPEN > STOP > CLOSE > STOP sequentially.
NOTE: if the AUTOMATIC CLOSURE has been programmed, during the pause the signal of the trans-
mitter will extend the pause by resetting the timer of the automatic closure.
5. Press STOP (S1) to confirm.
6. To leave the set-up mode, place the DIP1 in OFF.
15.4 “GO FUNCTION”
On input 9-10 of X3 terminal is available the function “GO FUNCTION” that defines the pulse mode of operation.
In case the Ditec radio receiver NRGZENX1 is not used, it is possible to cable third party receivers and to define the
mode of operation.
The way of functioning for “GO FUNCTION” is selectable on parameter 35 following the procedure above (paragraph 15.3).
i
NOTE: Set working mode:
01:03
Impulsive OPEN; Impulsive CLOSE.
00:00.
35:00
35:00 35:00
35:01
1 2 3 4 5
02
03
04
03
