DITEC EL500E - Flashing and Courtesy Light; Flashing Light Operation; Courtesy Light Operation

FLM
RX ANT
ON OFF
RedGreen
SELF-FLASHING
FLM
RX ANT
ON OFF
RedGreen
SELF-FLASHING
Self-flashing
Flashing from
control unit
ON
OFF
X1
X1
X17
X17
Ditec EL500E
Ditec EL500E
L1
L1
NO
NO
NC
NC
COM
COM
N
N
10Ω (min 3W)
WARNING: connect in series a wire-wound resistor (10Ω, min 3W)
WARNING: connect in series a wire-wound resistor (10Ω, min 3W)
10Ω (min 3W)
27
IP2358EN

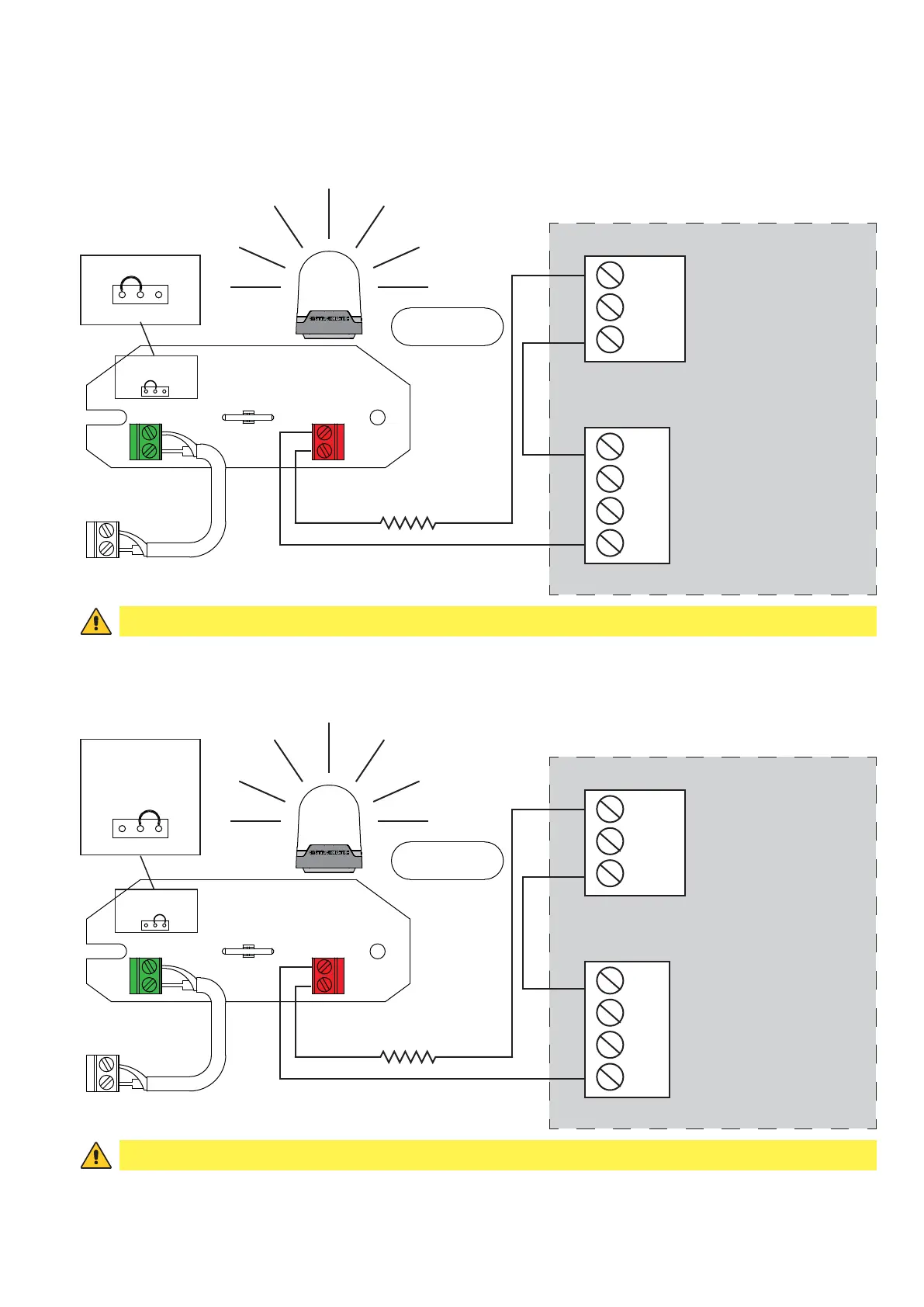

15. FLASHING LIGHT CONNECTION (230Vac with self-flashing) /
COURTESY LIGHT
15.1 FLASHING LIGHT
The flashing light will be active during the movement of the door. Set PARAMETER 88= 00.
15.2 COURTESY LIGHT
The flashing light works as courtesy light. Set PARAMETER 88= 00.
