Phantom 4 RTK User Manual

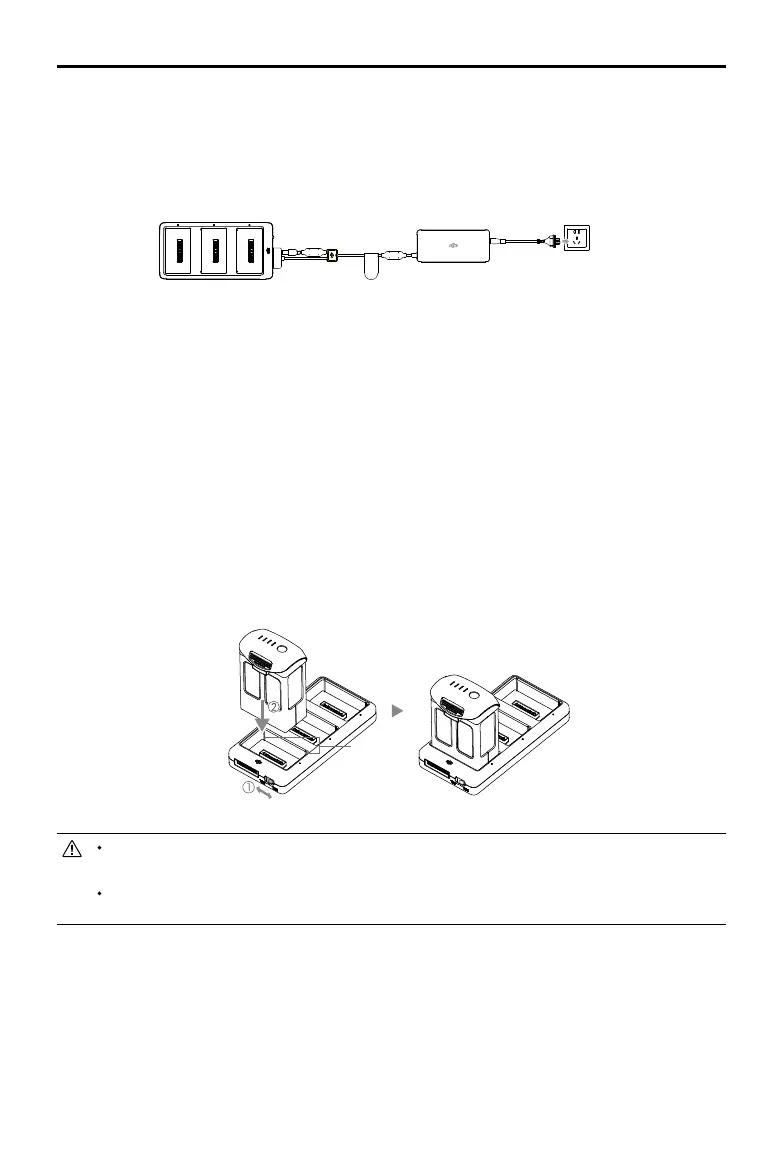

Using the Power Adapter and Charging Hub for Charging
1. Connecting to a Power Source
Connect the power adapter to a power outlet (100-240V, 50/60Hz), then connect the charging bub to
the power adapter.
AC Power Adapter
Charging Hub
Power Outle
2. Connecting Batteries
Charging Mode:
Align the grooves on the Intelligent Flight Battery with the battery slot tracks to insert the battery and
begin charging. The Intelligent Flight Battery with the highest power level will be charged rst. Other
batteries will be charged in sequence according to their power levels.
If the Status LED Indicator of the charging hub is solid green and the LED lights on the Intelligent Flight
Battery turn o, charging is complete and the Intelligent Flight Battery can be disconnected from the
charging hub.
Storage Mode:
The charging hub will discharge batteries with more than 50% power to reduce the charge to 50%.
Meanwhile batteries with less than 50% charge will be charged to 50%.
Be sure to align the grooves on the Intelligent Flight Battery with the battery slot tracks. The Status
LED Indicator will turn solid yellow if the battery is properly inserted.
In storage mode, you can power on the Intelligent Flight Batteries to discharge them without having to
connect to a power source if all batteries have more than 50% power.
Battery
Slot Track
