FlexxPump 125 (24V)
User Manual
17
EN-
SCHMIERSYSTEME
DIRECT LUBRICATION SYSTEMS
D L S

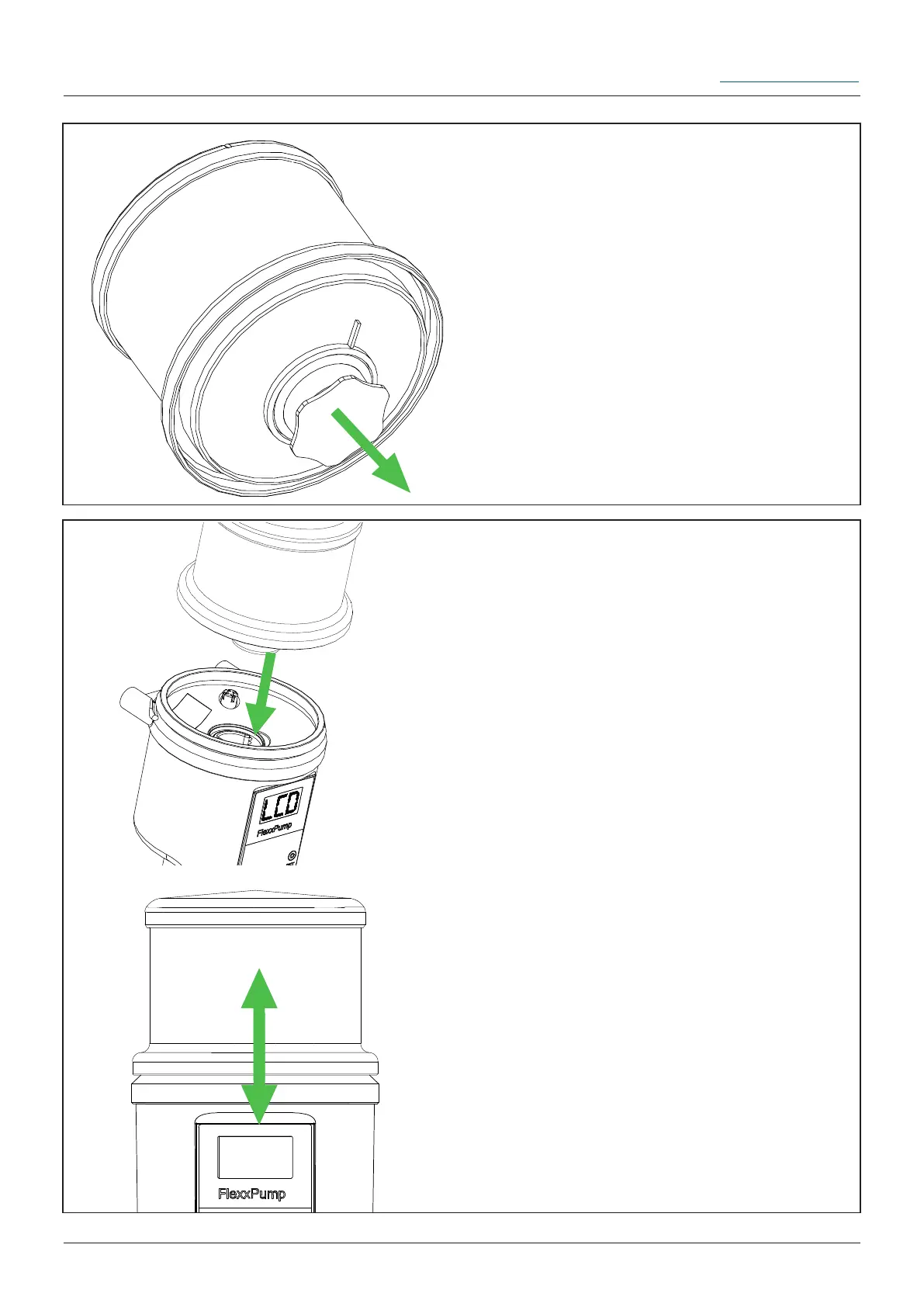

5. Unscrewing the cartridge cap.
Turn the cap on the lubricant cartridge
counterclockwise and pull it o.
Pay attention to cleanliness when
carrying out the work. It is imperative that
dirt and foreign bodies do not enter the
cartridge.
6. Mounting the lubricant cartridge
Place the full lubricant cartridge on the
FlexxPump 125.
Turn the lubricant cartridge clockwise onto
the FlexxPump 125.
The end position is reached after two
full rotations when the label of the lubricant
cartridge is aligned with the front label of the
FlexxPump 125.
LCD
