6.3 Menu and LCD messages
The LCD of the FlexxPump 125 can be used to read information optically, to change
settings in conjunction with the activation and programming key on the underside of the
FlexxPump 125, or to trigger individual actions.
In principle, settings can be changed and actions triggered both when the FlexxPump
125 is switched o󰀨 (OFF) and when it is switched on (ON).
The individual submenus are presented, described and explained in detail in chapters
6.3.4 to 6.3.12.
The symbolic representations used below are described as follows:

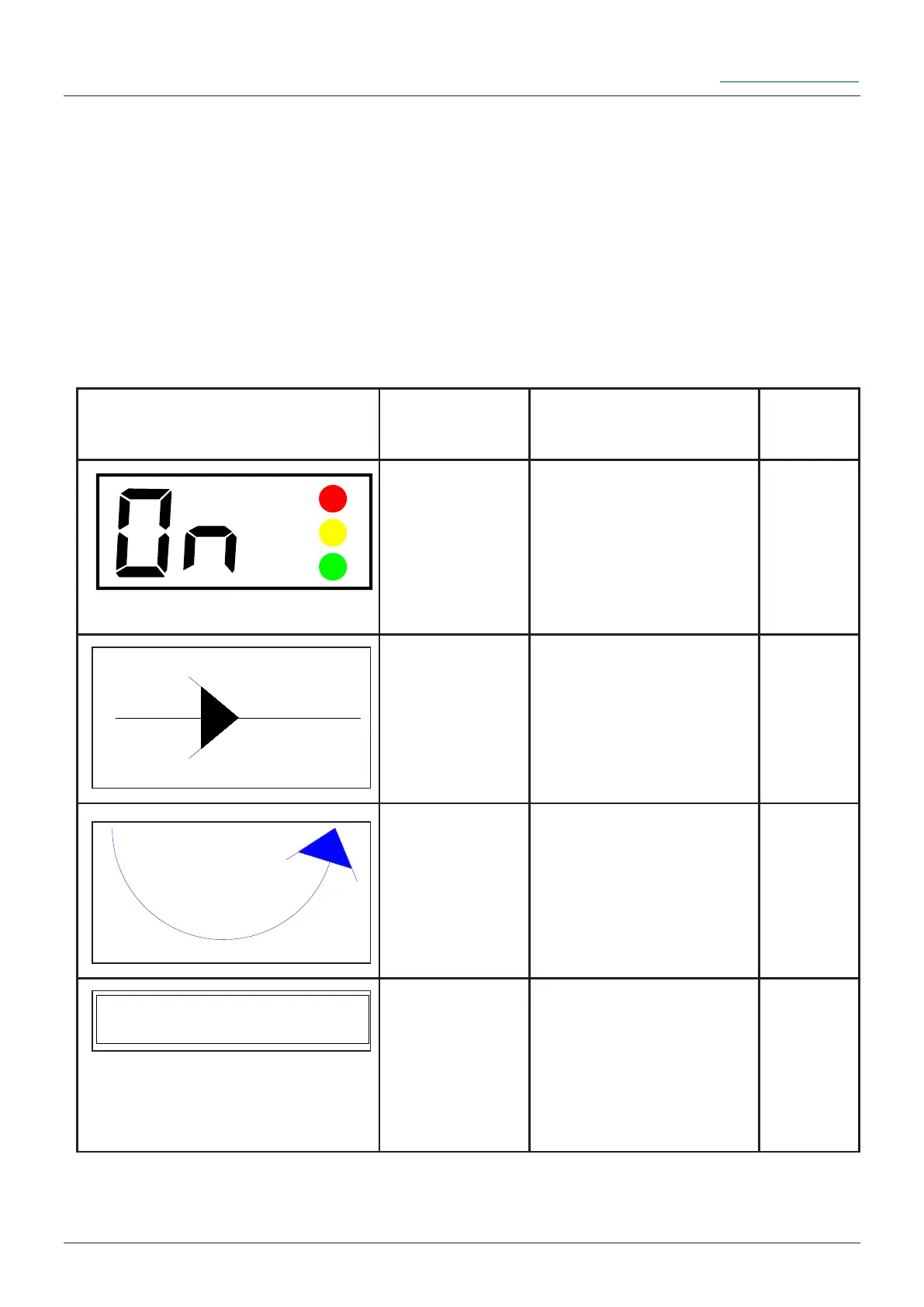

Symbol Description Note Detail
chapter
LCD Anzeige The LCD displays
information both during
operation and for pro-
gramming purposes.
6.3.1
Sequence
arrow
The black sequence
arrow indicates the
unchangeable basic
structure of the menu.
./.
Action arrow The blue action arrow
shows the sequence of
touching the action area
with the activation and
programming key once.
6.3.2
Sub-Menu In the respective sub-
menus information can
be read, dispensing
processes can be initia-
ted and settings can be
changed.
6.3.4
to
6.3.12
Unter-Menü
On
