8.2.1 Control signal 2 seconds
The control signal 2 seconds triggers a single dispensing process. After a specied
pause time, this control signal can be repeated or another control signal can be sent.
The FlexxPump 125 reacts only in a certain operating state to control signals at PIN
2. The operating states are output by the FlexxPump 125 via PIN 4 as a high/low level
and must be tapped and processed accordingly in the PLC.

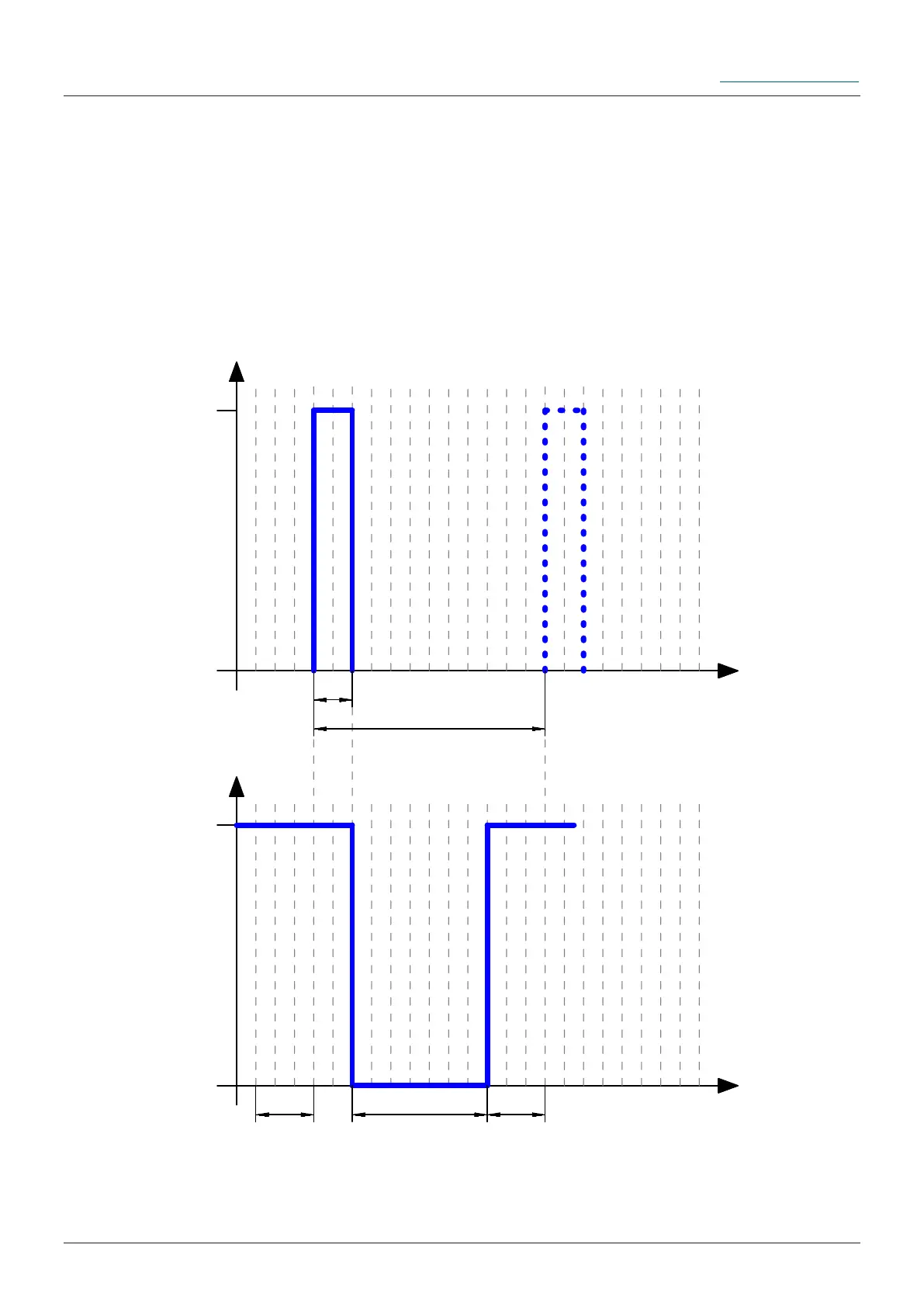

U
24V
0V
t
PIN 2
U
24V
0V
t
PIN 4
2s
>3s
Tp >22s
<7 ML >17 s >3s
o.E.
o.E.
Tp: Pause time
ML: Motor running time
