8.2.2 Control signal 12 seconds

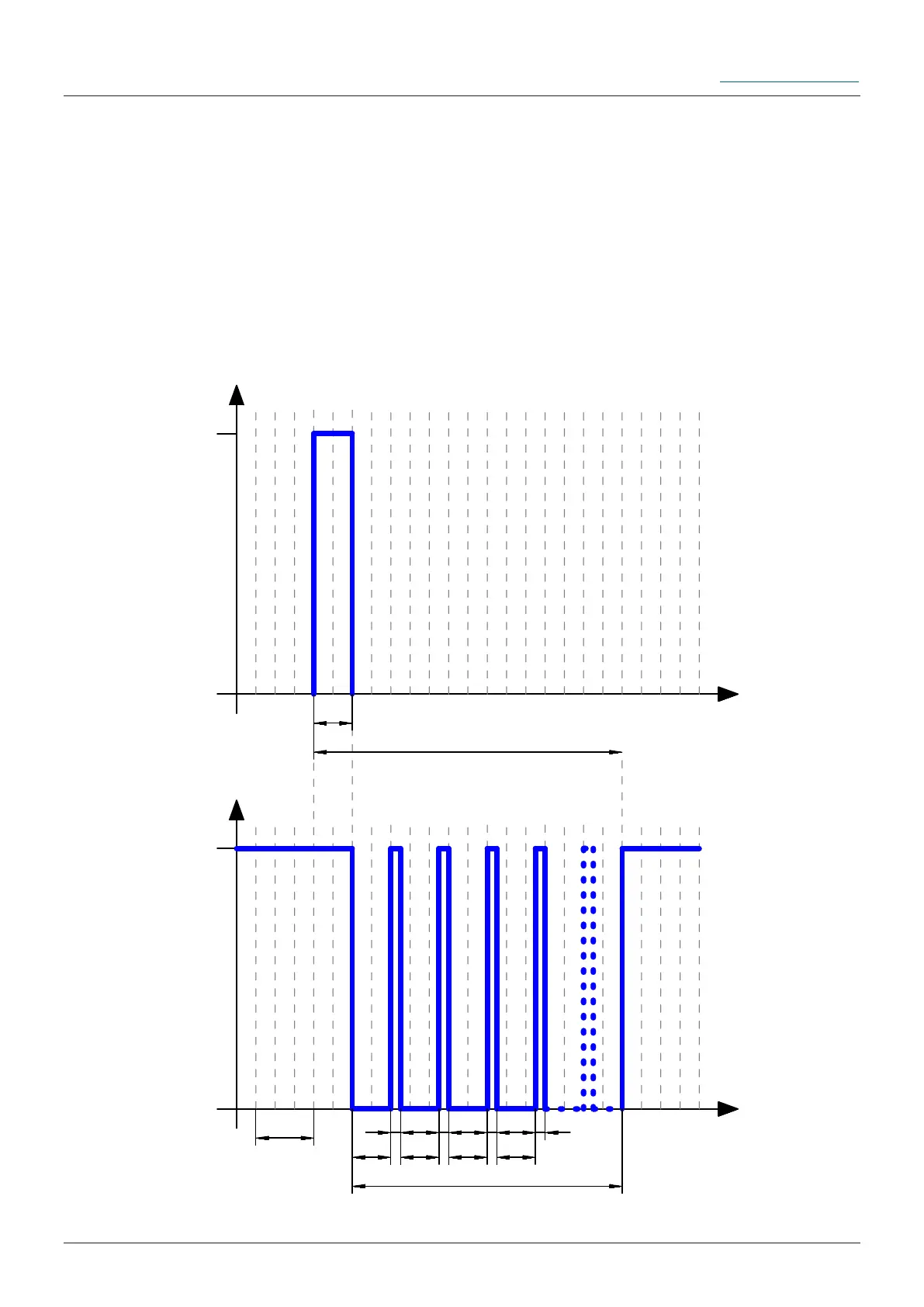

The control signal for 12 seconds triggers the FIL function (chapter 6.3.9) by the
external control. A total of 40 dispensing operations are carried out automatically one
after the other. After a certain pause time, this control signal can be repeated or another
control signal can be sent. The FlexxPump 125 reacts only in a certain operating state
to control signals at PIN 2. The operating states are output by the FlexxPump 125 via
PIN 4 as high/low levels and must be tapped and processed accordingly in the PLC.
U
24V
0V
t
PIN 2
U
24V
0V
t
PIN 4
12s
>3s
Tp >706s
ML
o.E.
o.E.
ML ML ML
P P P P
40xML + 40xP
Tp: Pause time
P: Pause
ML: Motor running time
