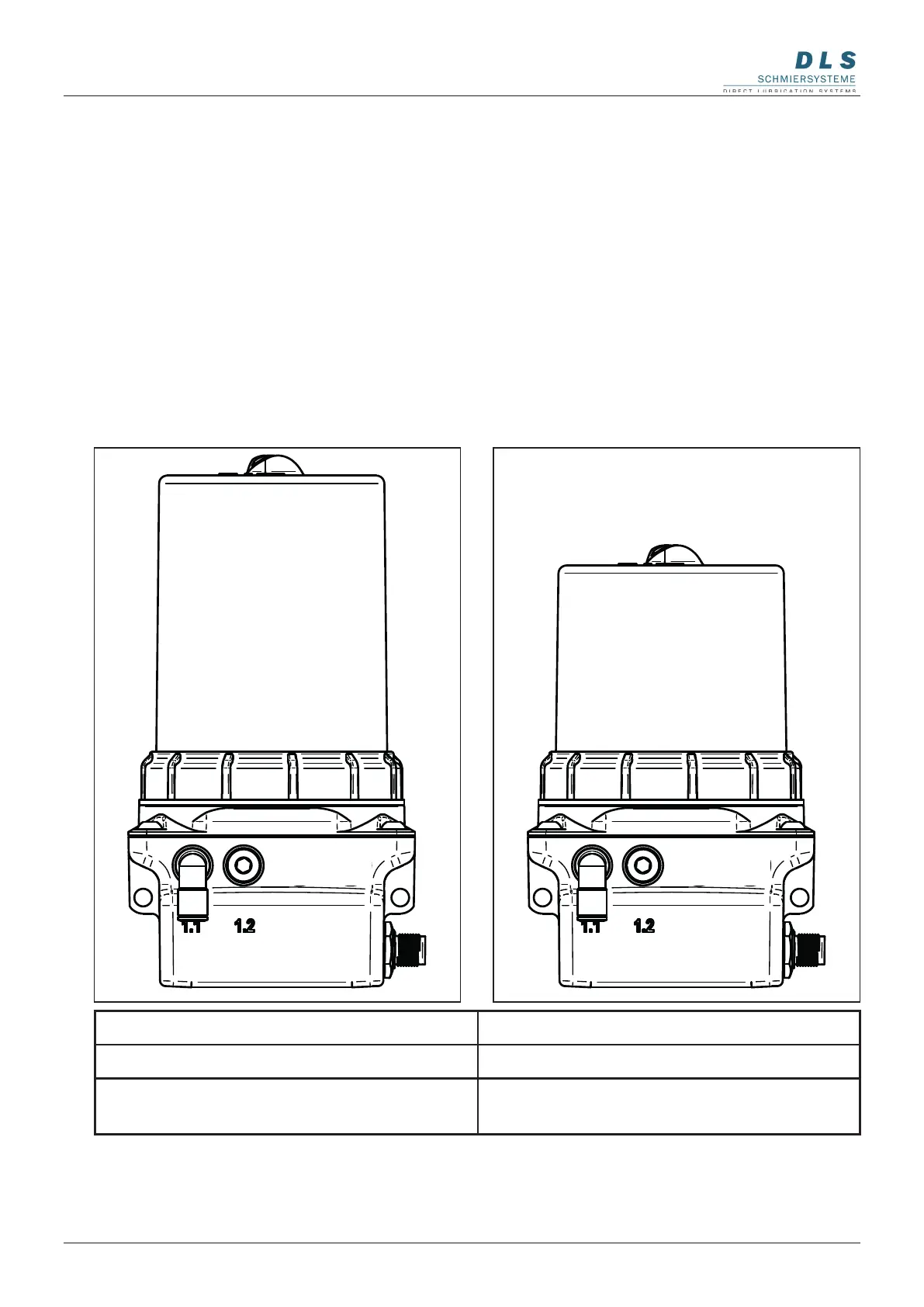

With the FlexxPump 411 DLS or FlexxPump 211 DLS, the theoretical two outlets of
the built-in one pump unit are combined internally. The outlet is supplied with 0.15cm³
lubricant per stroke.
5. Variants
The FlexxPump 250/400 DLS is designed as a compact central lubrication unit for
supplying one or more lubrication points. Depending on the specic application, the
FlexxPump 250/400 DLS can also reliably and cleanly supply a limited number of
lubrication points with lubricant. In this case, parts of the system accessories from
the manufacturer (e.g. splitters, progressive distributors or lubrication gears) can be
connected to the FlexxPump 250/400 DLS in order to extend the number of lubrication
points beyond the number of outlets. The FlexxPump 250/400 DLS is available as a
variant with one or as a variant with two pump bodies. The outlets of pump body (PB)
1 are marked on the housing with 1.1 and 1.2, the outlets of pump body 2 with 2.1 and
2.2.
5.1 FlexxPump 411 DLS / FlexxPump 211 DLS
