FlexxPump 250/400 DLS

User Manual

EN-

5.3 FlexxPump 422 DLS/ FlexxPump 222 DLS

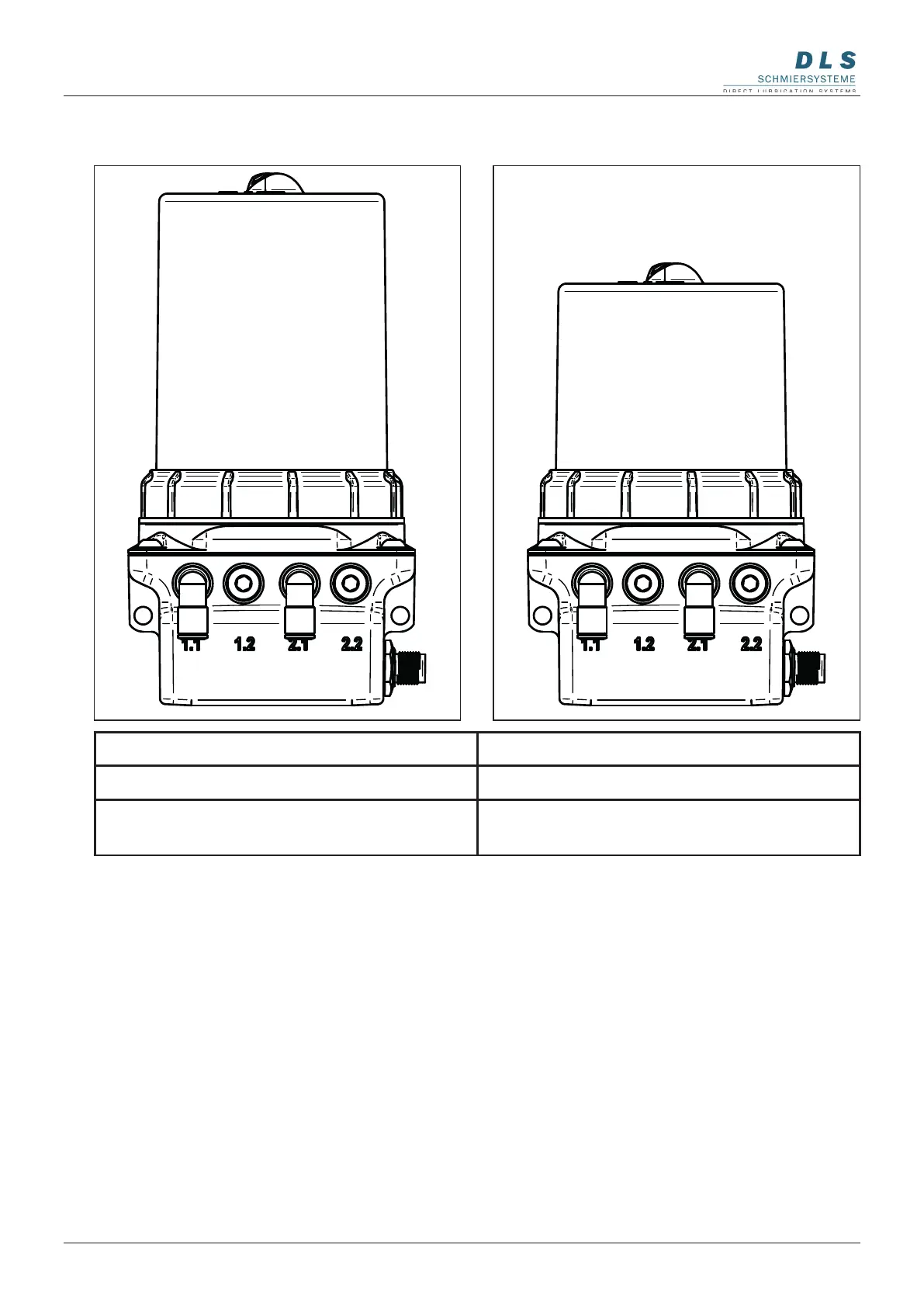

With the FlexxPump 422 DLS or FlexxPump 222 DLS, the theoretical two outlets

per installed pump unit are combined internally. One outlet is supplied with 0.15cm³

lubricant per stroke. The outlets are supplied with lubricant one after the other.

The FlexxPump 422 DLS or FlexxPump 222 DLS allows to set dosing volume

differences from outlet 1.1 to outlet 2.1 by individual control of the two pump bodies. An

explanation of the different control signals can be found in chapter 8.2.

Number of pump units 2

Number of outlets 2

Differences in dosing volume per

pump unit possible

yes
