FlexxPump 250/400 DLS

User Manual

EN-

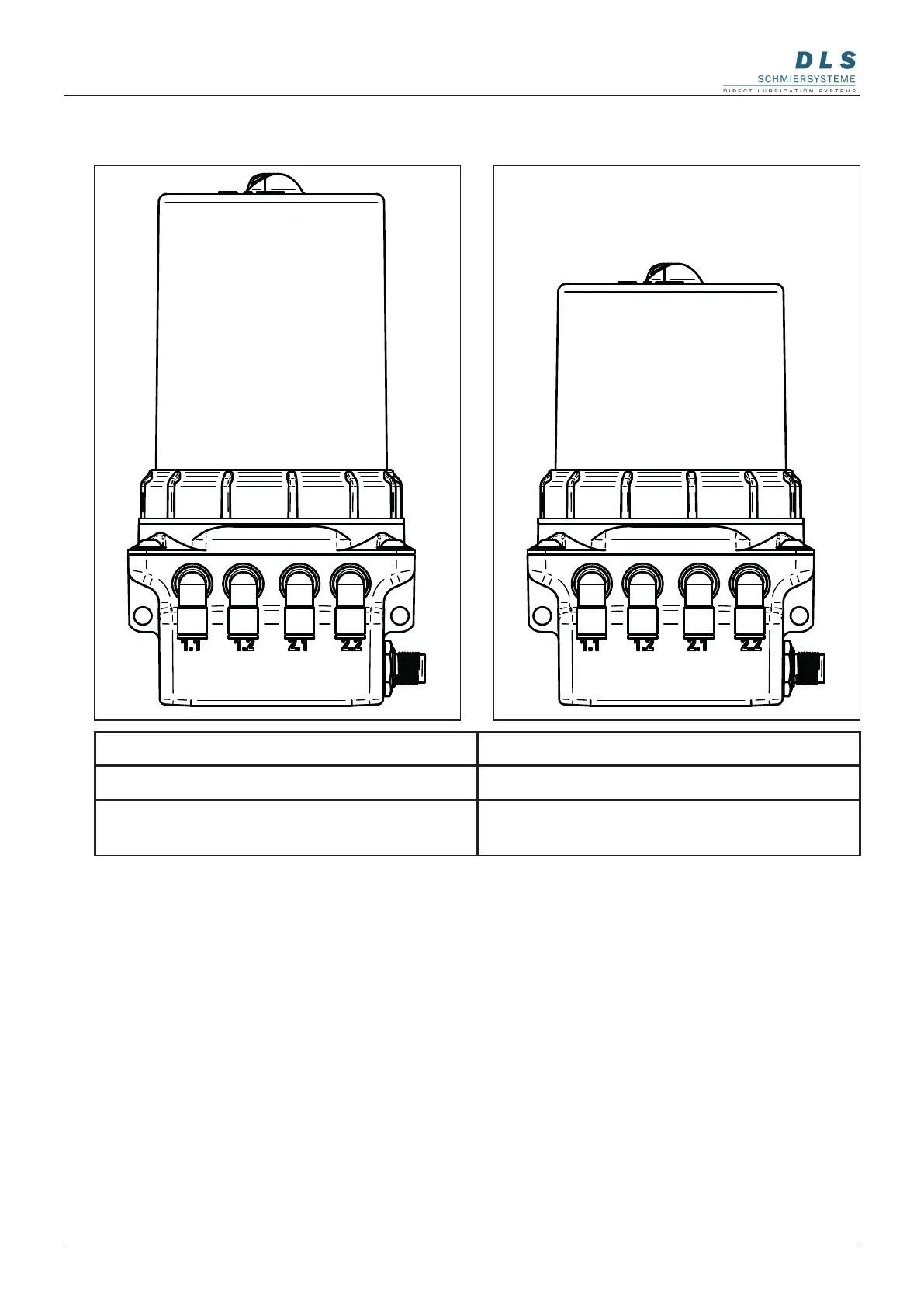

5.5 FlexxPump 424 DLS / FlexxPump 224 DLS

With the FlexxPump 424 DLS or FlexxPump 224 DLS, each possible outlet is operated

individually. One outlet is supplied with 0.15 cm³ lubricant per stroke. The outlets are

supplied with lubricant one after the other.

The FlexxPump 424 DLS or FlexxPump 224 DLS allows you to set dosing volume

differences from outlets 1.1 and 1.2 to outlets 2.1 and 2.2 by individually controlling the

two pump bodies. An explanation of the different control signals can be found in chapter

8.2.

Number of pump units 2

Number of outlets 4

Differences in dosing volume per

pump unit possible

yes
