FlexxPump 250/400 DLS

User Manual

EN-

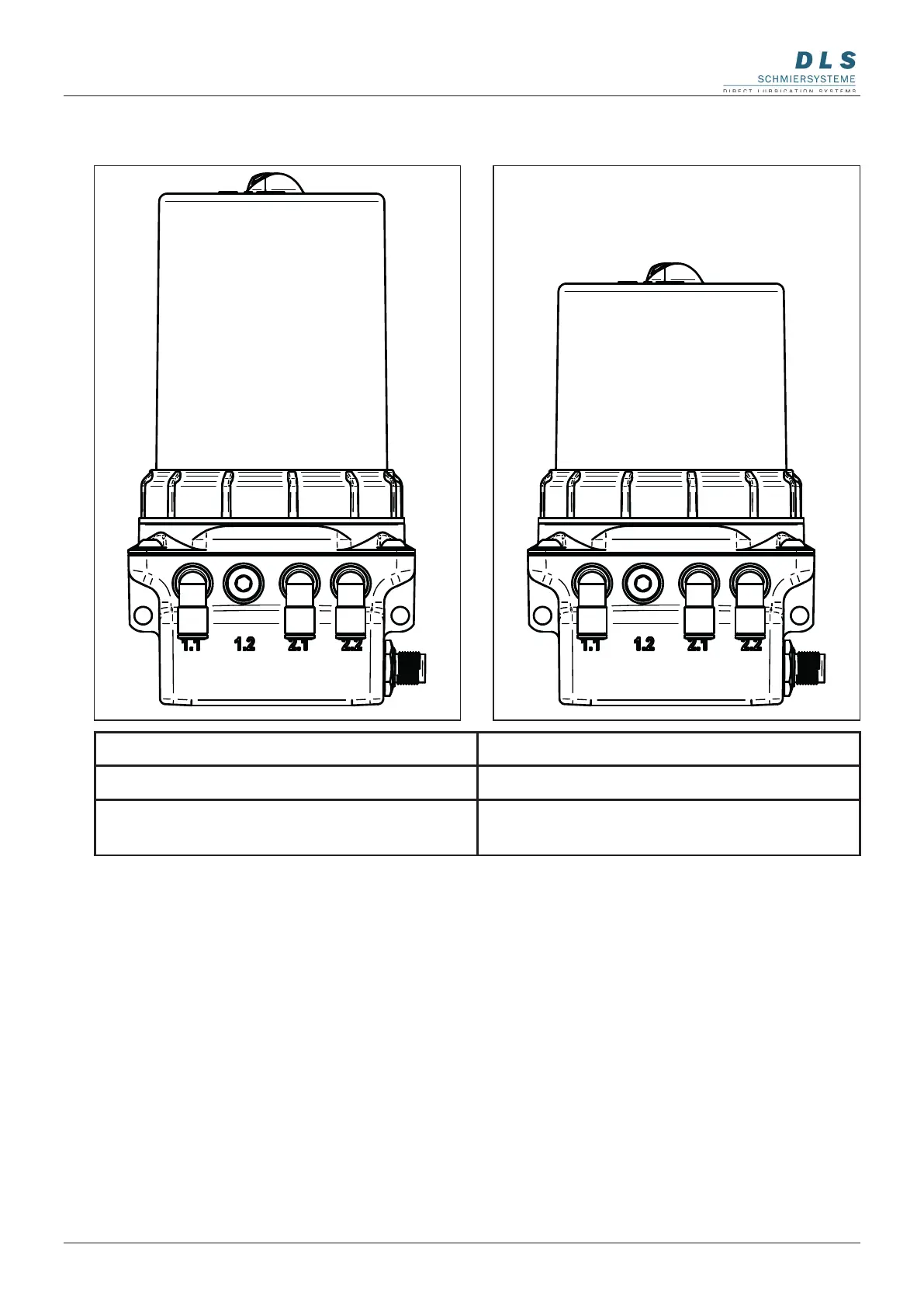

5.4 FlexxPump 423 DLS/ FlexxPump 223 DLS

In the FlexxPump 423 DLS or FlexxPump 223 DLS, the theoretical two outlets of the

rst pump body are internally combined into one outlet 1.1. One outlet is supplied with

0.15 cm³ lubricant per stroke. The outlets are supplied with lubricant one after the other.

The FlexxPump 423 DLS or FlexxPump 223 DLS allows you to set dosing volume

differences from outlet 1.1 to outlets 2.1 and 2.2 by controlling the two pump bodies

individually. An explanation of the different control signals can be found in chapter 8.2.

 If the two pump units are controlled equally, outlet 1.1 is supplied with twice the

amount of lubricant of outlets 2.1 or 2.2, due to the internal combination of the outlets of

the rst pump unit.

Number of pump units 2

Number of outlets 3

Differences in dosing volume per

pump unit possible

yes
