FlexxPump 250/400 DLS
User Manual
47
EN-

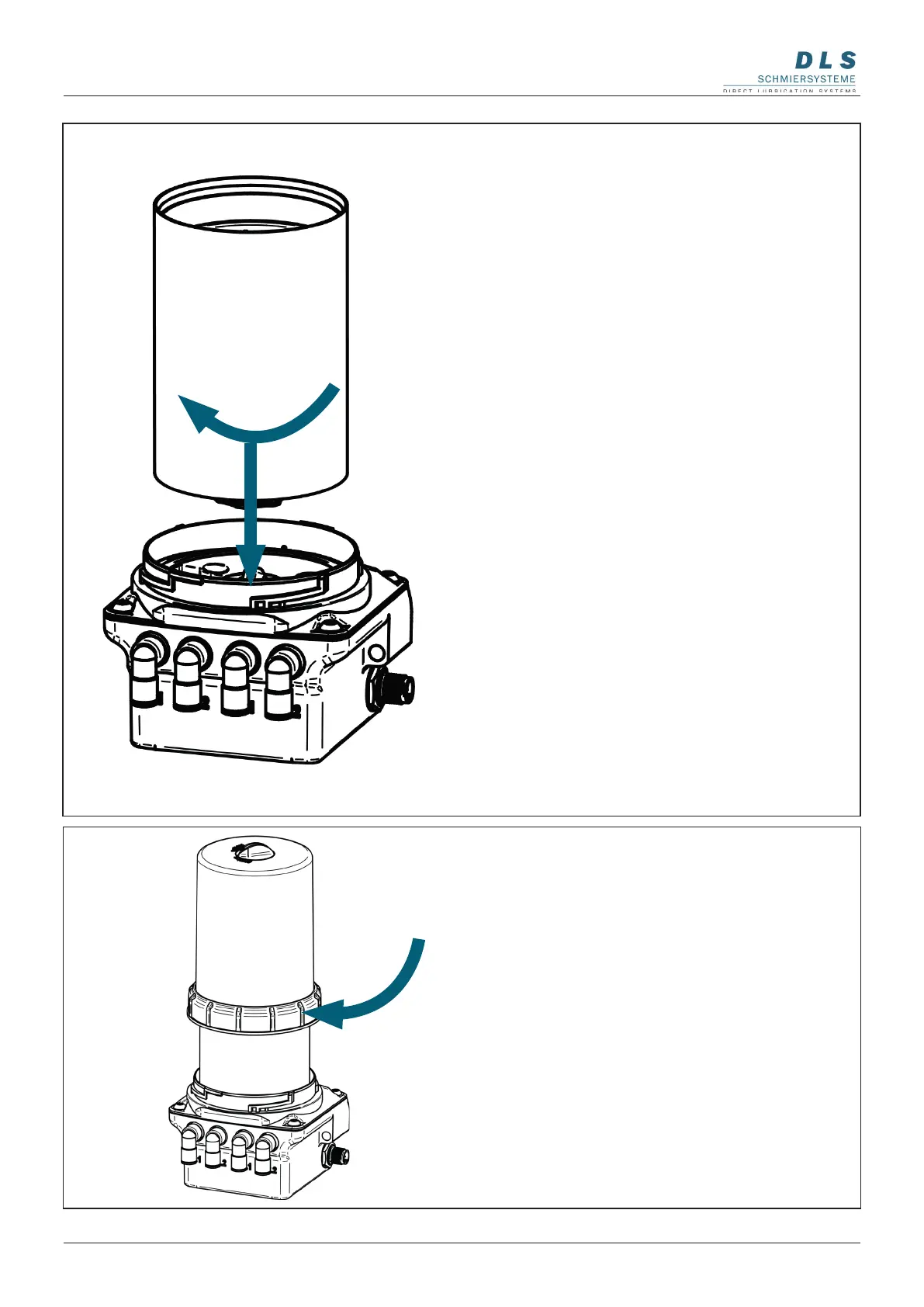

4. Mounting the new lubricant cartridge
 Place the full lubricant cartridge on the
FlexxPump 250/400 DLS.
 Turn the lubricant cartridge clockwise onto
the FlexxPump 250/400 DLS.
 The end position is reached after two
full rotations when the label of the lubricant
cartridge is aligned with the front label of the
FlexxPump 250/400 DLS.
5. Assembling the housing on the power unit
of the FlexxPump 250/400 DLS.
 Place the dismantled housing on the
FlexxPump 250/400 DLS and press it onto
the power unit.
 Fasten the housing to the power unit by
turning the retaining ring clockwise.
 The retaining ring must snap into place
when turning and be completely tightened.
