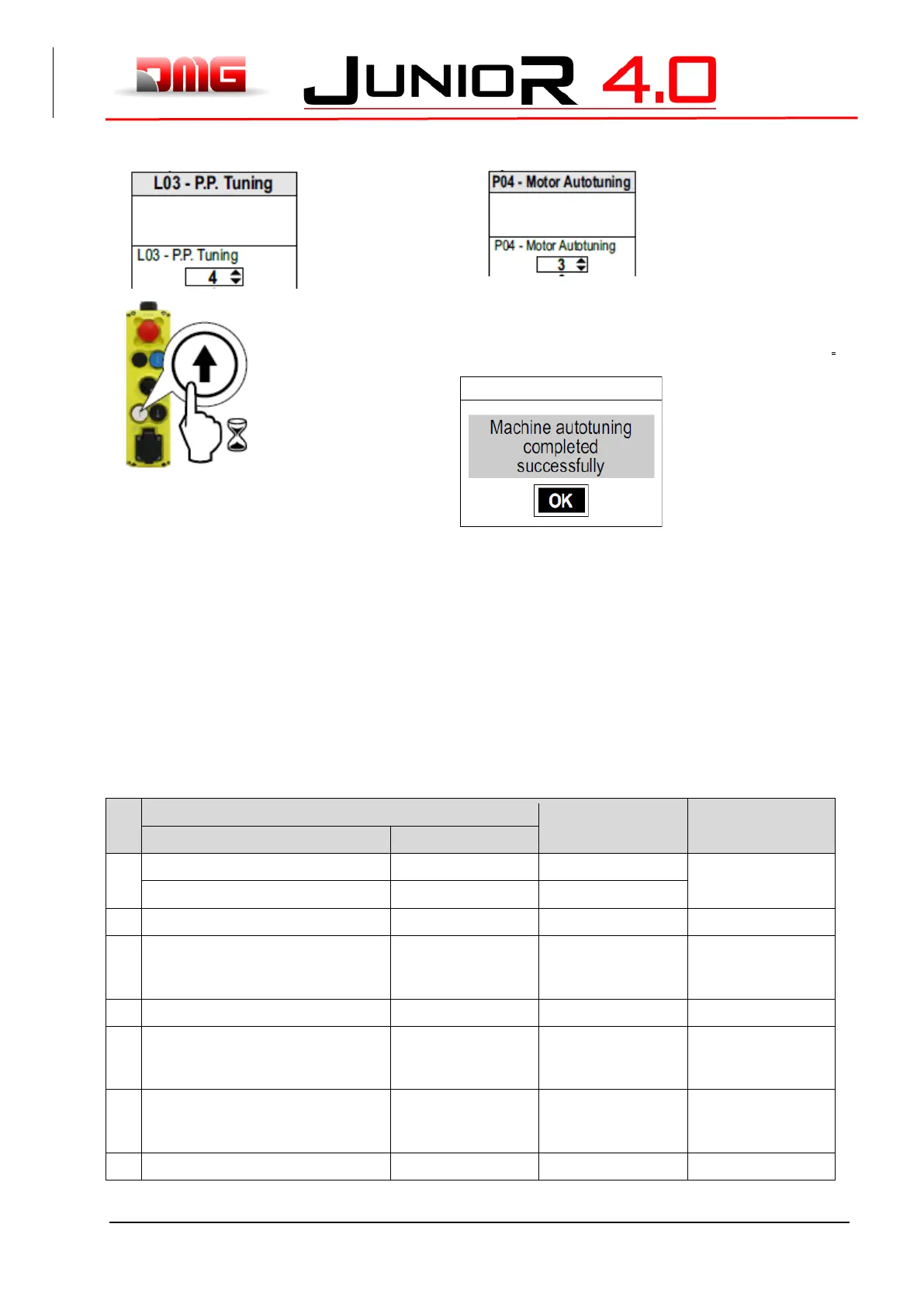

After setting the last parameter, press Right and follow the instructions
shown: keep pressed the requested button on the PME for the time indicated.
In case of positive Tuning playpad will
show:
and the procedure is finished.
In case of any problem go to the Fault menu to identify the Problem (§ Motor Tuning Errors)
At the end of the procedure, press the up/down button and check the correct car movement direction; if not
correct, invert values of parameters E98 and E99.
For closed loop installations, in the <I/O Status>, VVVF IN/OUT menu, check that the VVVF motor encoder
value (4/7) is positive (+) during upward movement and negative (-) during downward movement when the
FWD (1/7) command is activated. If not, invert a channel in the motor encoder of the VVVF.
