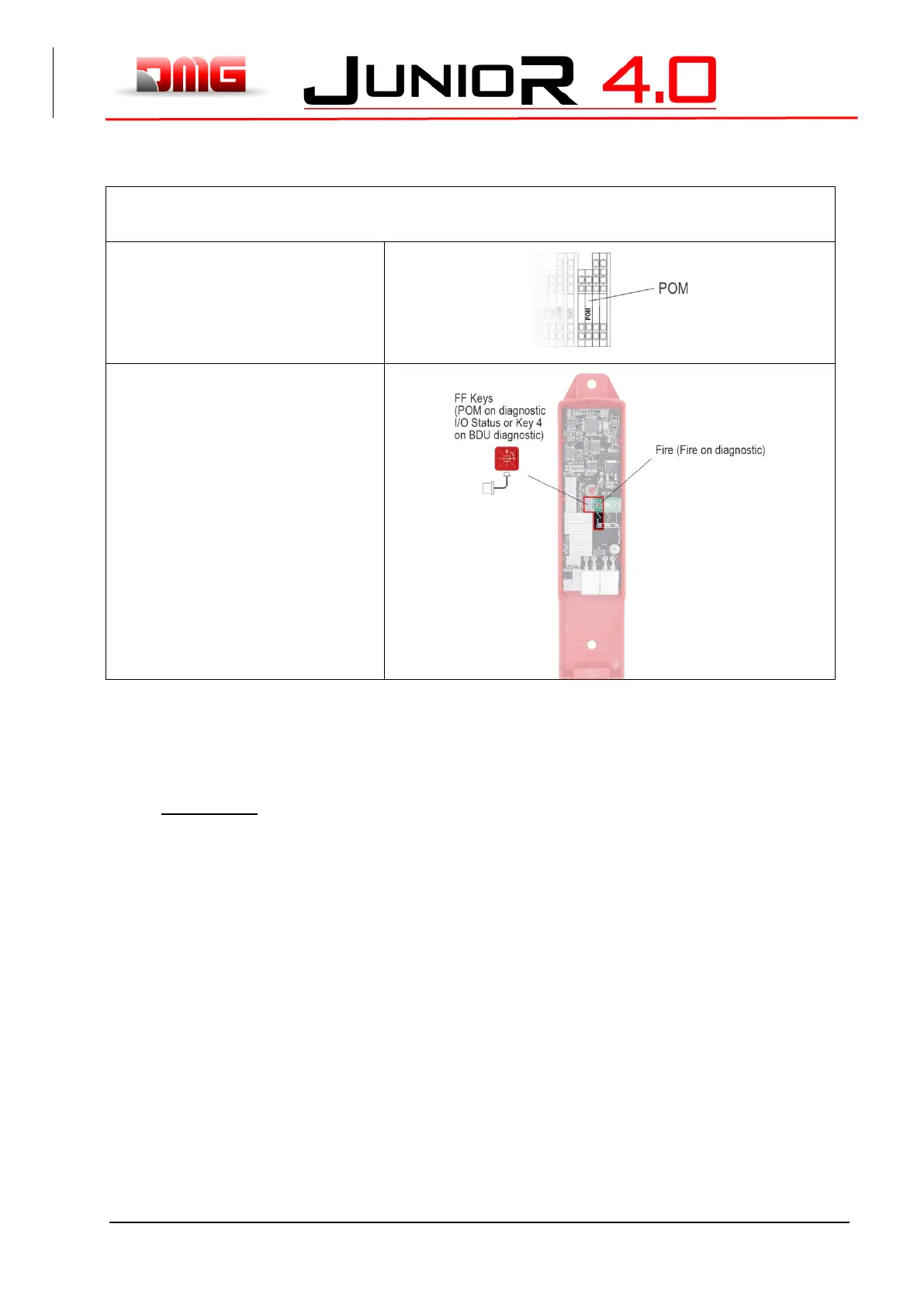

ANNEX XI: Fire operation programming procedure
Wirings
Input POM
Input located on the screw terminal
Input Fire and input FF keys
Input located on BDU
Evacuation according to EN 81-73
a. SITUATION 1: ONLY ONE EXTERNAL FIRE CONTACT FOR FIRE DETECTION
(EVACUATION)
Enter the menu "SPECIAL FUNCTIONS" submenu "FIREFIGHTERS" and set:
- The floor where the elevator must go in case of direct activation of the contact from the
external fire contact
- The Access (if there are multiple doors)
- The stand-by state of the contact of the external fire contact (NO or NC).
- Program contacts NO type for the input FIREMAN
- The operation EN 81-72 (b)
Connect the contact to the POM input of the controller.
Using these settings and once the contact is activated by the external fire contact, the elevator will go
to the programmed floor, open the doors and remain stopped (PHASE 1). The Landing Operation
Panels and the Car operating Panel are disabled. The reactivation of the elevator will take place at the
deactivation of the contact from the external fire contact.
