Mechanical Specifications
All dimensions in this chapter are in millimeters (mm).
Robot dimension
Figure 5.1 shows the dimension of M1 Pro robot.

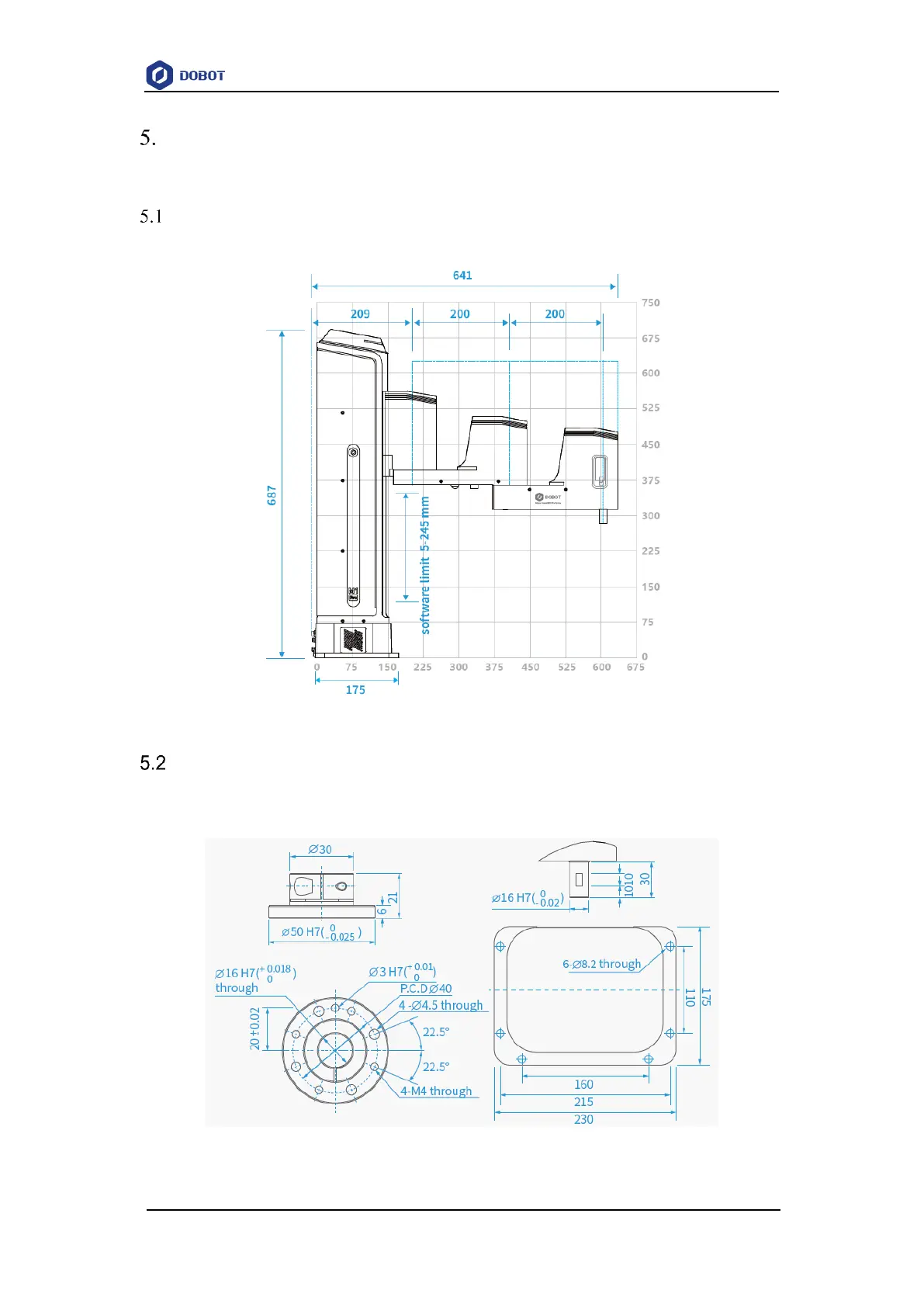

Figure 5.1 M1 Pro dimension
Base and end-effector dimension
You can install the matching gripper, suction cup on the end of the M1 Pro for transporting and
intelligent sorting. Figure 5.2 shows the dimension of end-effector.
Figure 5.2 Base and End-effector dimension
