Electrical Specifications
Interface of base
Interface overview

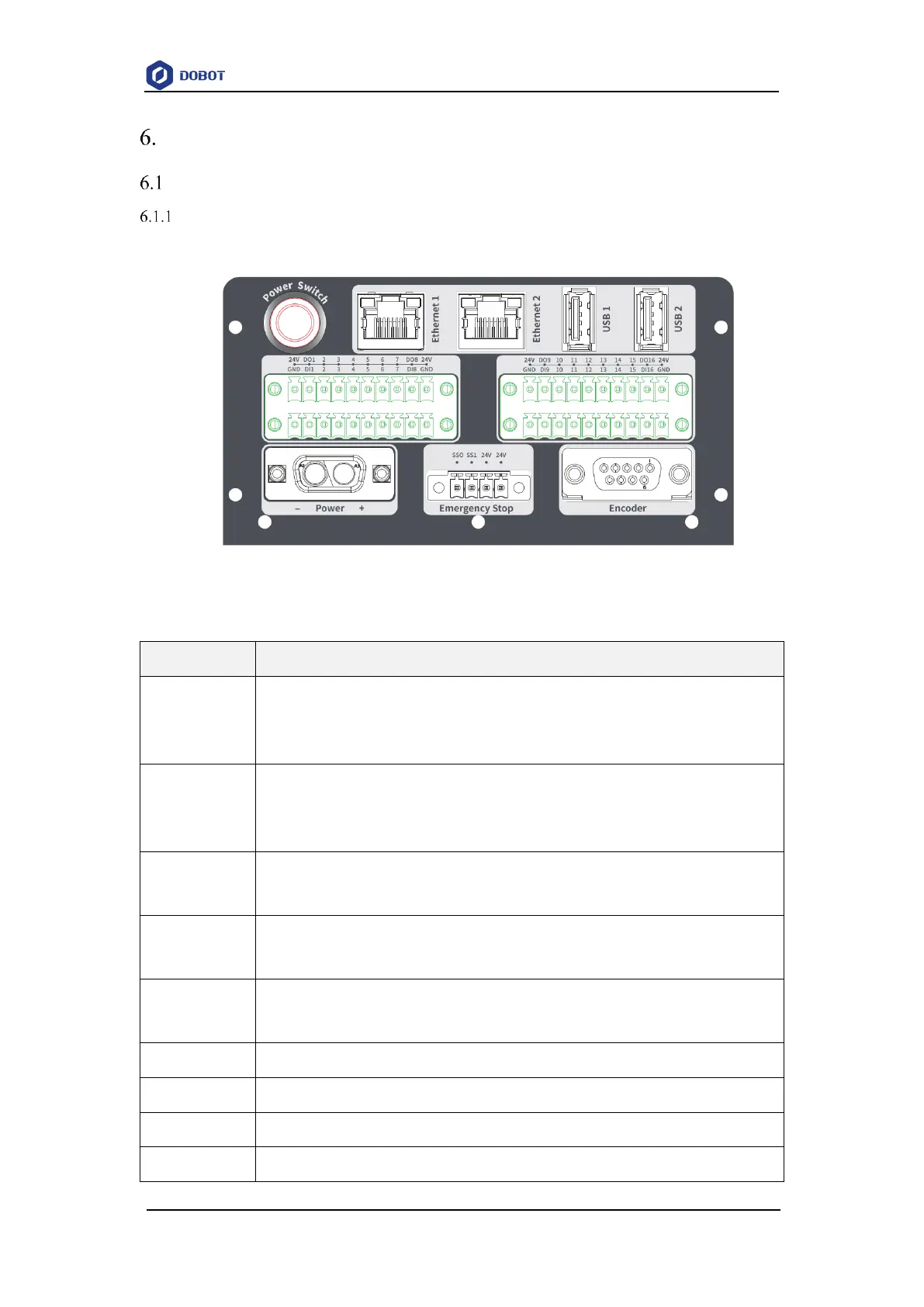

Figure 6.1 shows the interface panel of the base. Table 6.1 lists the description.
Figure 6.1 Interface panel of the base
Table 6.1 Interface description
Screen printing
Description
Ethernet1
Ethernet interface
The default IP address is 192.168.1.6, which cannot be modified. It can be used for
debugging on the upper computer
Ethernet2
Ethernet interface
For connecting to external equipment. The default IP address is 192.168.2.6, which can be
modified.
USB1
USB interface
For connecting WiFi module, updating firmware, etc
USB2
USB interface
For connecting WiFi module, updating firmware, etc
Encoder
Encoder interface (differential ABZ incremental encoder)
For connecting to the conveyor belt for dynamic tracking
Power Switch
For controlling the robot power on and off
Emergency Stop
Emergency stop interface
Power
For connecting to DC 48V power supply
I/O
I/O interface
