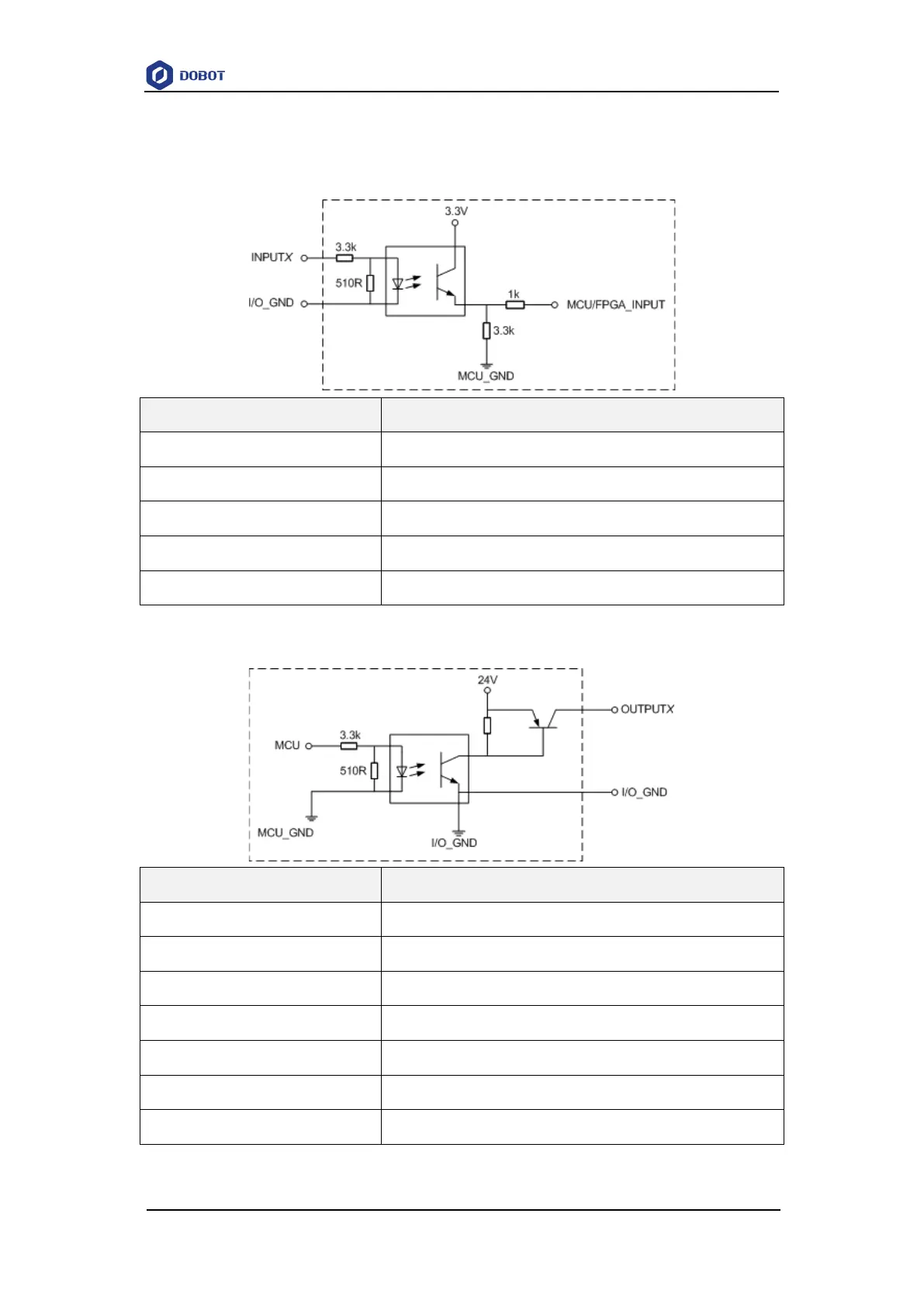

Appendix B Digital Circuit Description
Digital Input
Item
Specification
Input channel
16 channels
Connection method
Crimping terminal
Input type
PNP
Input voltage (DC)
24V±10%
Isolation method
Optical coupling isolation
Digital Output
Item
Specification
Output channel
16 channels
Connection method
Crimping terminal
Output type
PNP
Power supply (DC)
24V±10%
Load current of single channel
500mA
Output current
2A
Isolation method
Magnetic isolation
