Nova 2 base

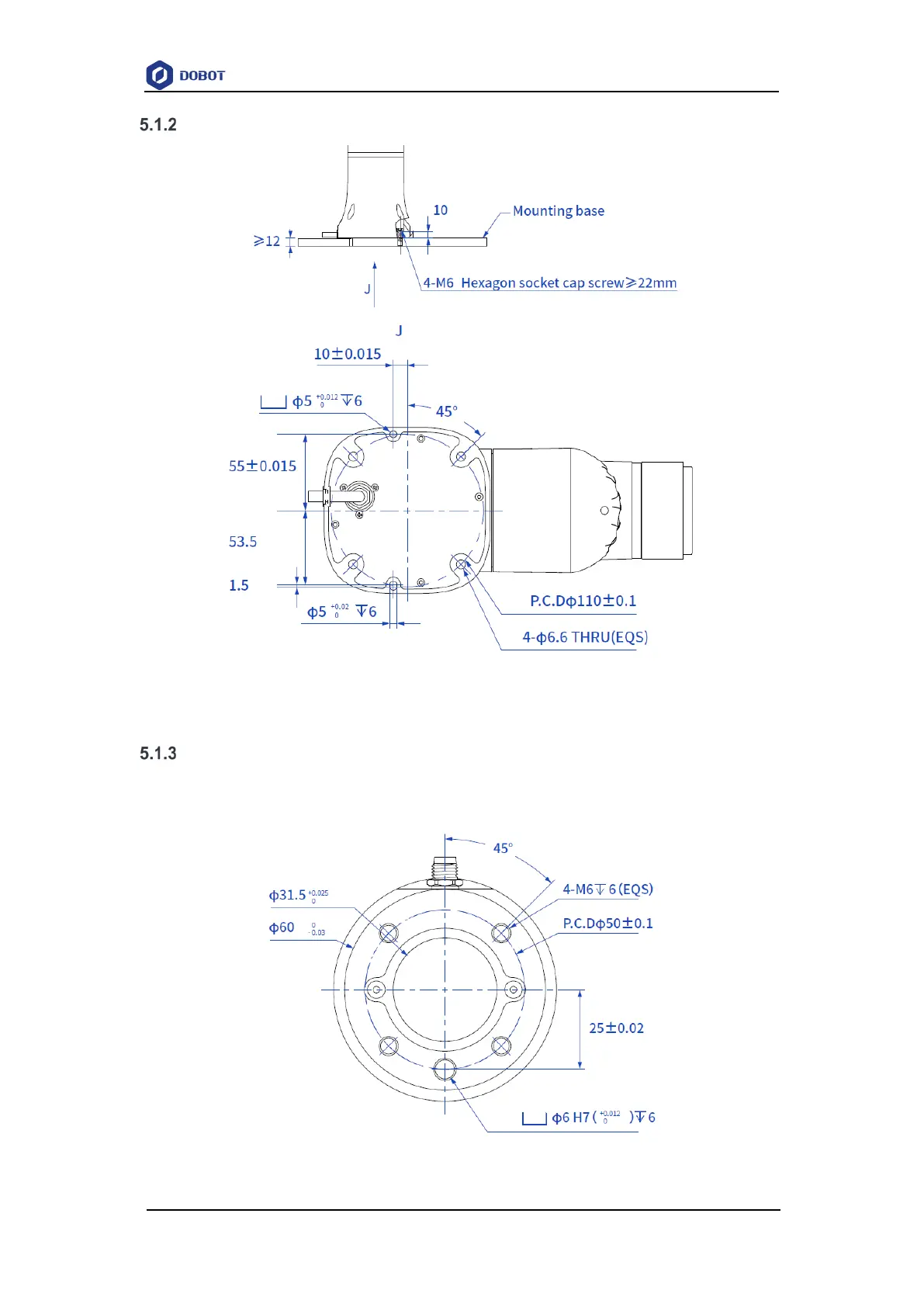

Figure 5.2 Nova 2 base installation dimensions
Nova 2 flange specifications
The end flanges of Nova series robot arms are all the same size. The flange design conforms
to ISO 9409-1.
Figure 5.3 Nova 2 end flange dimensions
