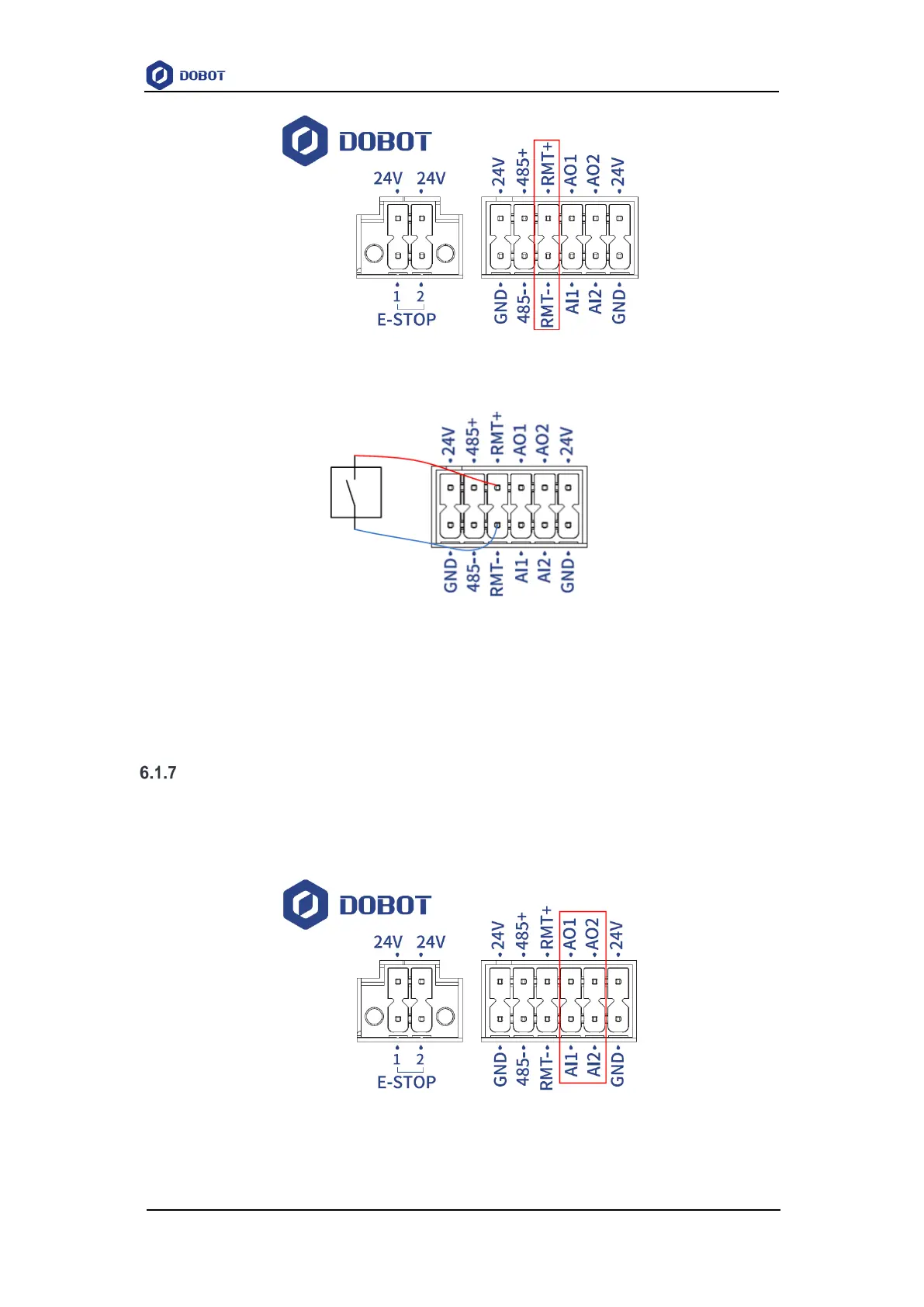

Figure 6.4 Remote switch interface
The wiring of connecting external switch is shown in Figure 6.5.
Figure 6.5 Remote switch wiring
If the switch is turned on for 1 seconds and then disconnected, the CCBOX will be powered
on. If the switch is turned on for more than 3 seconds and then disconnected, the CCBOX will be
powered off.
Analog I/O interface
The analog input/output have 2 channels respectively, as shown in Figure 6.6, which are used
for the input and output of analog signal.
The type of analog signal is voltage, ranging from 0V to 10V.
Figure 6.6 Analog I/O interface
