(6) Flip the propeller shaft yoke and install the
bearing cap onto the opposite trunnion. Install a
snap ring (Fig. 30).
(7) Fit the link yoke on the remaining two trun-
nions and press both bearing caps into place (Fig.
31).
(8) Install snap rings.
(9) Install the centering kit assembly inside the
link yoke making sure the spring is properly posi-
tioned (Fig. 32).
(10) Place two bearing caps on opposite trunnions
of the remaining cross. Fit the open trunnions into
the link yoke bores and the bearing caps into the
centering kit (Fig. 33).

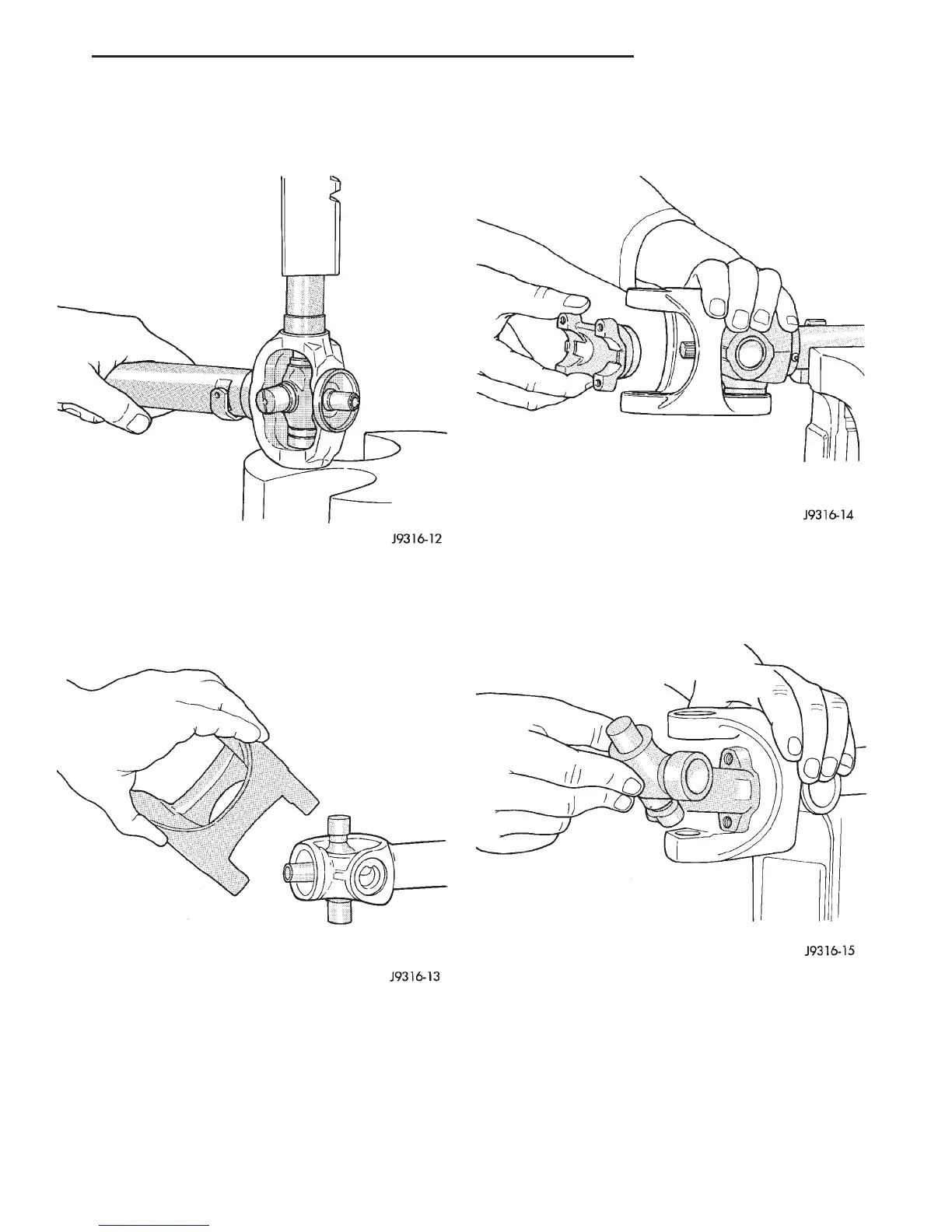

Fig. 30 Press In Bearing Cap
Fig. 31 Install Link Yoke
Fig. 32 Install Centering Kit
Fig. 33 Install Remaining Cross
DN PROPELLER SHAFTS 3 - 15
DISASSEMBLY AND ASSEMBLY (Continued)
