ParaMon-Pro X instruction manual DOC.60391-01/21

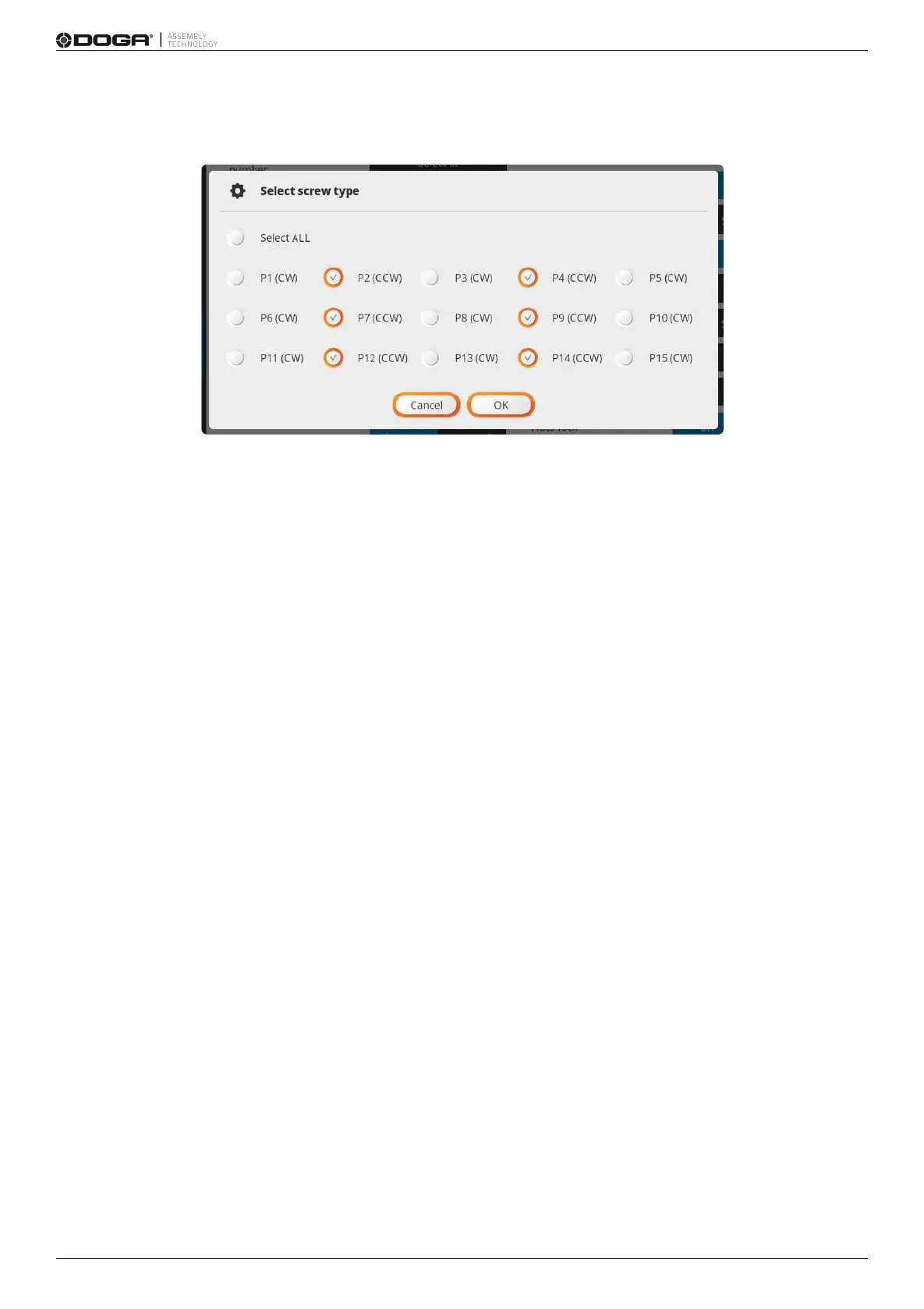

W. Screw type
If the screw is fastened counterclockwise, it is able to set a screw-fastening direction by preset.
X. Screw ount
Able to set the number of screws and use for diverse purposes.
In case there are a total of 10 target screws, the screw count is set to ‘10’.
Whenever fastened, the screw count is reduced one by one (e.g., 10, 9, 8, …) and saved together with
fastening data.
Able to check which screw has been fastened, using the count value.
Y. Sleep time (min.)
Able to set the system to go into sleep mode if left untouched for a certain period of time.
Able to turn off the sleep mode, using the trigger.
Z. Auto lock
Able to set the system to be locked automatically when the screw count is ‘0’.
