DOM Roq® Mounting Directly on Door Leaf
17
DOM Roq® Smart Lock
Mounting Directly on Door Leaf
Long Plate Outside / Long Plate Inside
To mount the DOM Roq® motor unit directly on the door leaf (inside), proceed as follows:

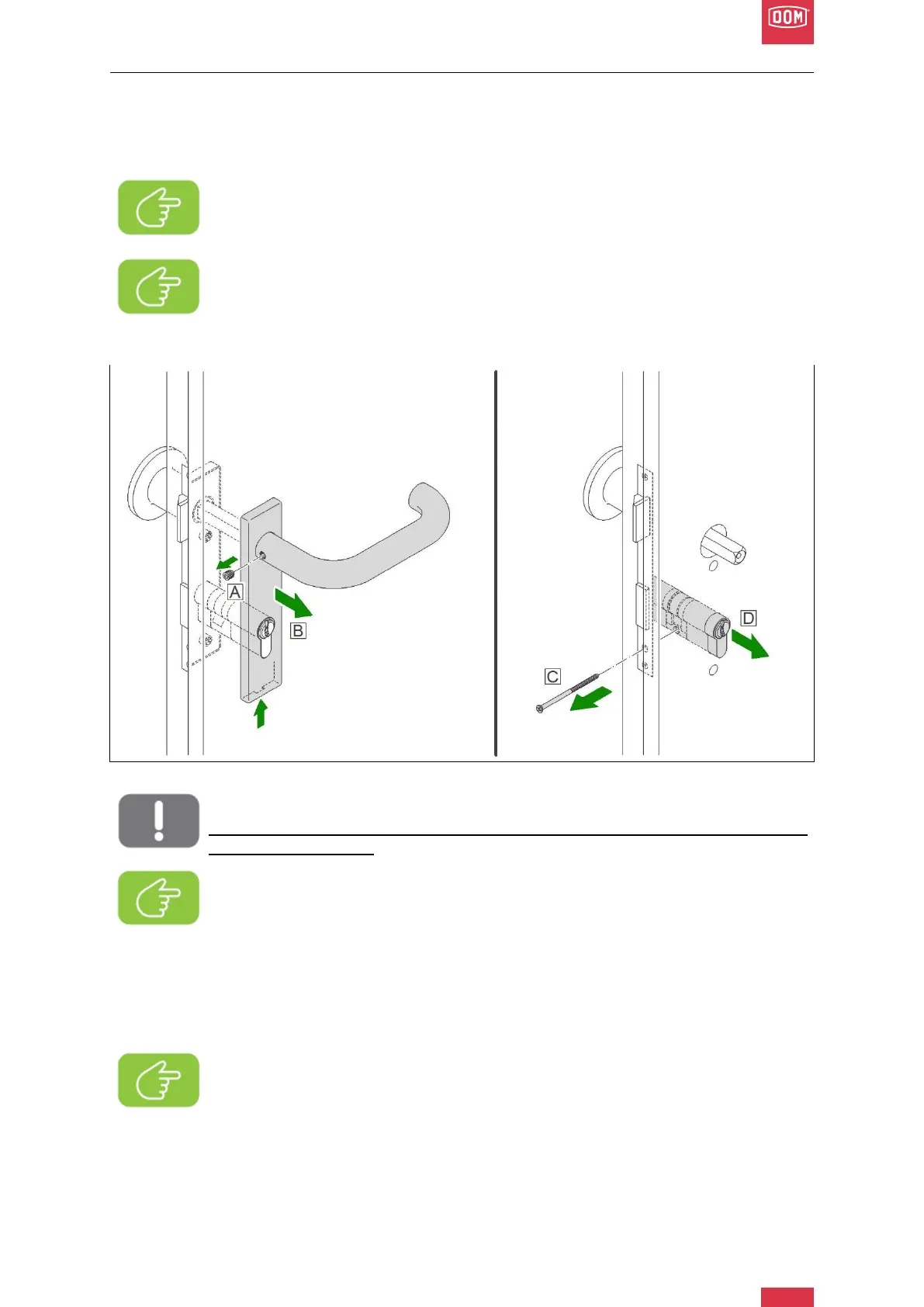

DOM Roq® Fig. 09: Long Plate Inside and Outside
Attention!
Dismounting and mounting should only be executed with the door open and se-
cured against closing.
1. Remove the threaded pin (grub screw with the appropriate Allen key, size 3 mm) (A)
of the lever handle and take it off.
2. Remove the trim (levering off) with the rosette lifter and the thin wooden strip (to pro-
tect the door leaf). (B)
Note! For this installation you need a special inner plate.
Available e.g. from your DOM specialist dealer.
Note! If the installation described here is not possible because you have a dif-
ferent / older handle set, please contact your DOM specialist dealer.
Note!
If the fixing screws of the trim are visible, change to page 29 - Long plate with
screw connection through inner plate.
Note!
If you do not have a rosette lifter, you must "lever off" the trim with the small
slotted screwdriver and the wooden strip (to protect the door leaf). There is a
small slot in the lower part of the trim for this purpose.
(see Fig. 09)
