DOM Roq® Smart Lock
Long Plate Outside / Round Rosettes Inside
To mount the DOM Roq® motor unit directly on the door leaf, proceed as follows:

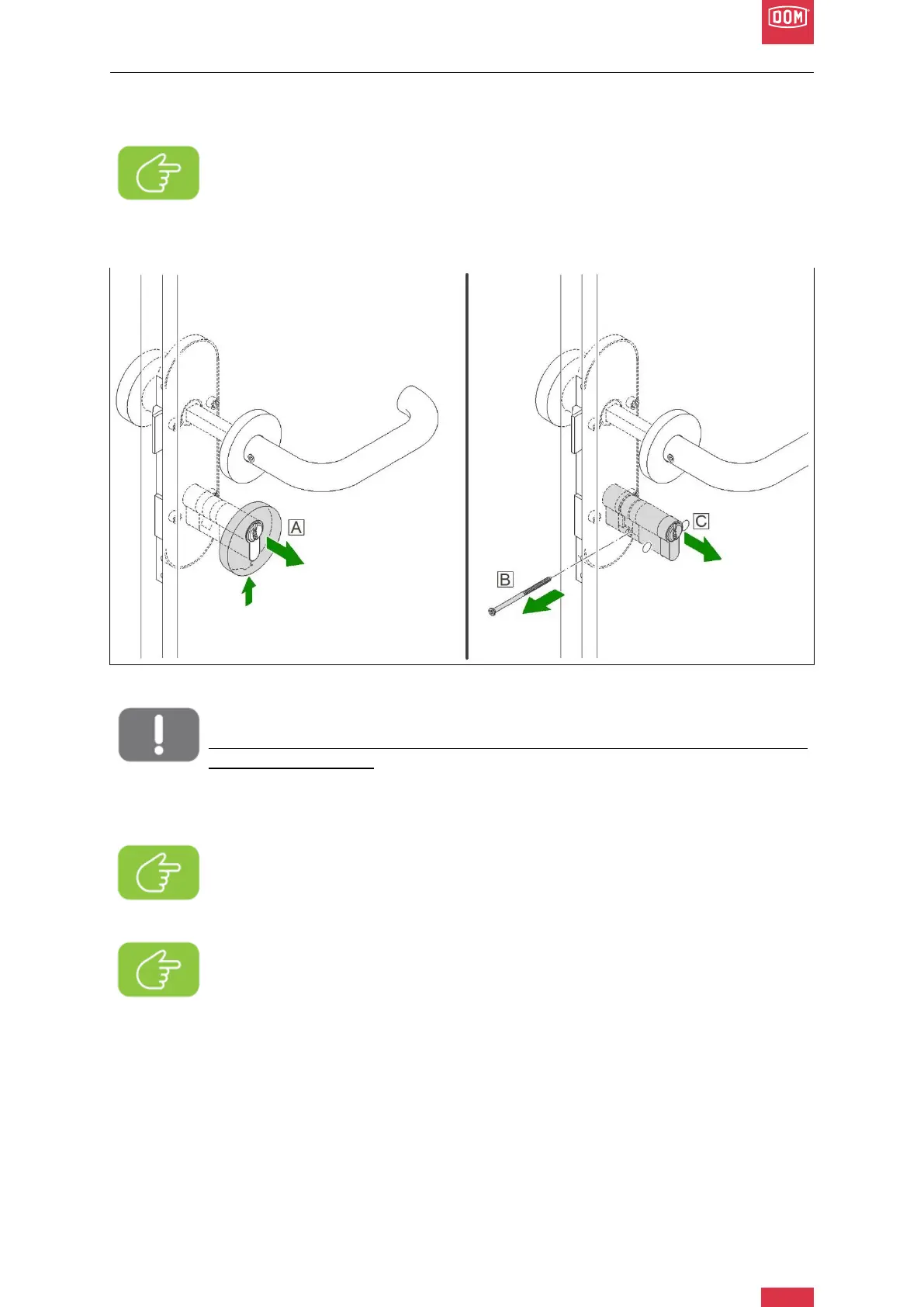

DOM Roq® Fig. 13: Long Plate Outside, Round Rose Inside
Attention!
Dismounting and mounting should only be executed with the door open and se-
cured against closing.
1. Remove the trim (levering off) with the rosette lifter and the thin wooden strip (to pro-
tect the door leaf).
2. Remove the connecting screws of the rosette.
3. Remove the base plate of the rosette.
Note! If the installation described here is not possible because you have a dif-
ferent / older handle set, you should contact the specialist trade.
Note!
If you do not have a rosette lifter, you must "lever off" the trim with the small
slotted screwdriver and the wooden strip (to protect the door leaf). There is a
small slot in the lower part of the trim for this purpose. (see Fig. 13)
Note!
If you have a version with screws through the trim, loosen and remove the
screws and take off the inside fitting (round rosette) and skip points 2 and 3.
