DOM Roq® Long Plate with Screw Connection Through Inside Plate
30
DOM Roq® Smart Lock
Mounting Directly on Existing Handle
Set
Long Plate with Screw Connection Through Inside Plate
Basic Requirement: The inner and outer plates are connected with screws. These are
screwed to the outer plate through the inner plate.
This means that you can loosen the lower screw and pull it out with-
out having to remove the trim. The new cylinder protrudes a maxi-
mum of 4 mm from the trim.
To attach the DOM Roq® motor unit directly to the old handle set, proceed as follows:

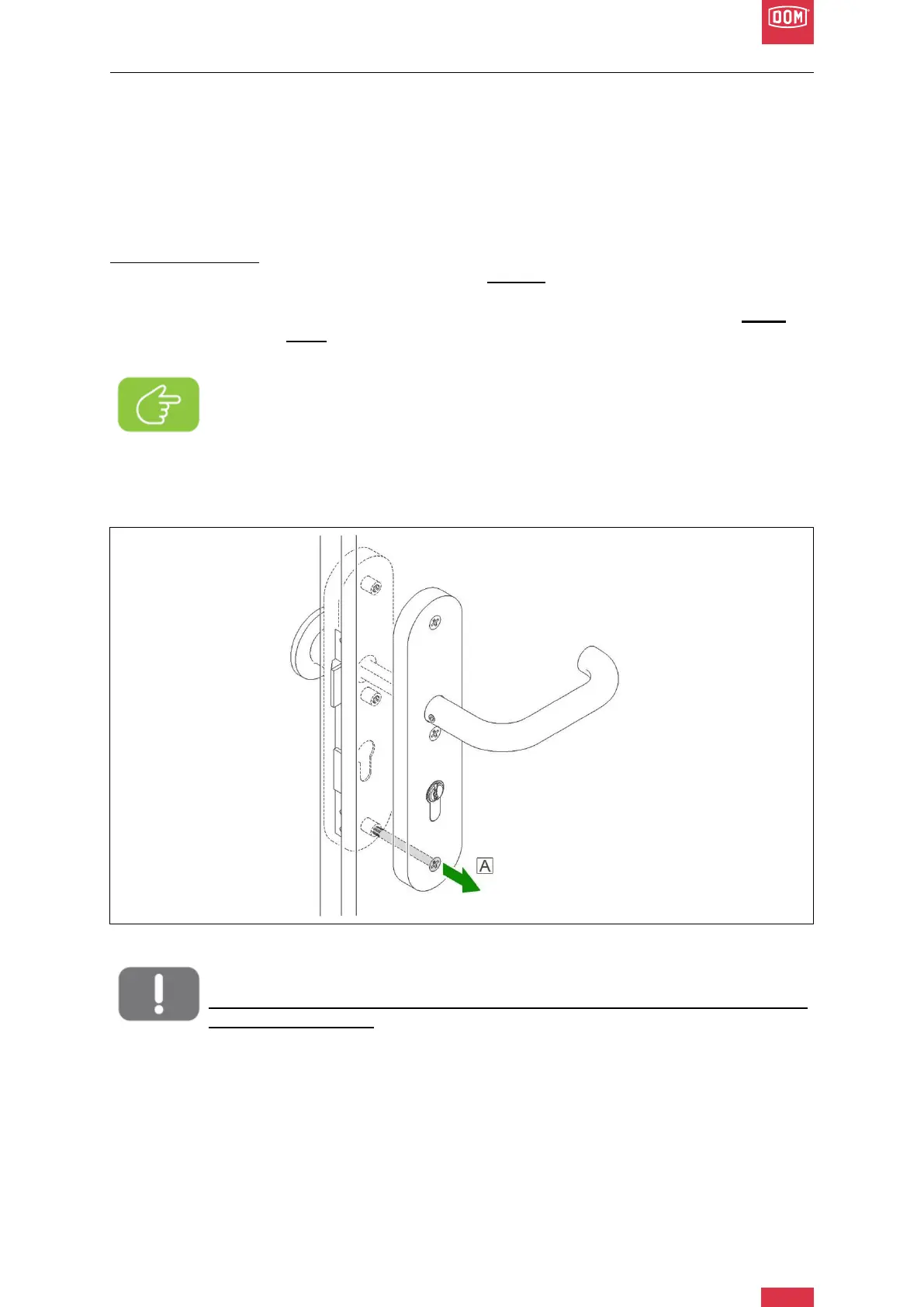

DOM Roq® Fig. 22: Long Plate with Screw Connection Through Inside Plate
Attention!
Dismounting and mounting should only be executed with the door open and se-
cured against closing.
1. Remove the lower screw of the "trim connection". (A)
Note!
If your lever handle set does not have visible connecting screws on the inside
plate, follow the instructions Front plate inside without screw connection through
inside plate (page 40).
