DOM Roq® Round / Oval Rosette and Spanish Rosette Without Screw Connection Through Inner
Rosette
47
DOM Roq® Smart Lock
Round / Oval Rosette and Spanish Rosette Without
Screw Connection Through Inner Rosette
Basic Requirement: Installation on existing (inside) round, oval or spanish rosette. The
new cylinder protrudes a minimum of 4.5 mm to a maximum of 9
mm from the trim (rosette).
To mount the DOM Roq® motor unit directly on the old trim (rosette), proceed as follows:

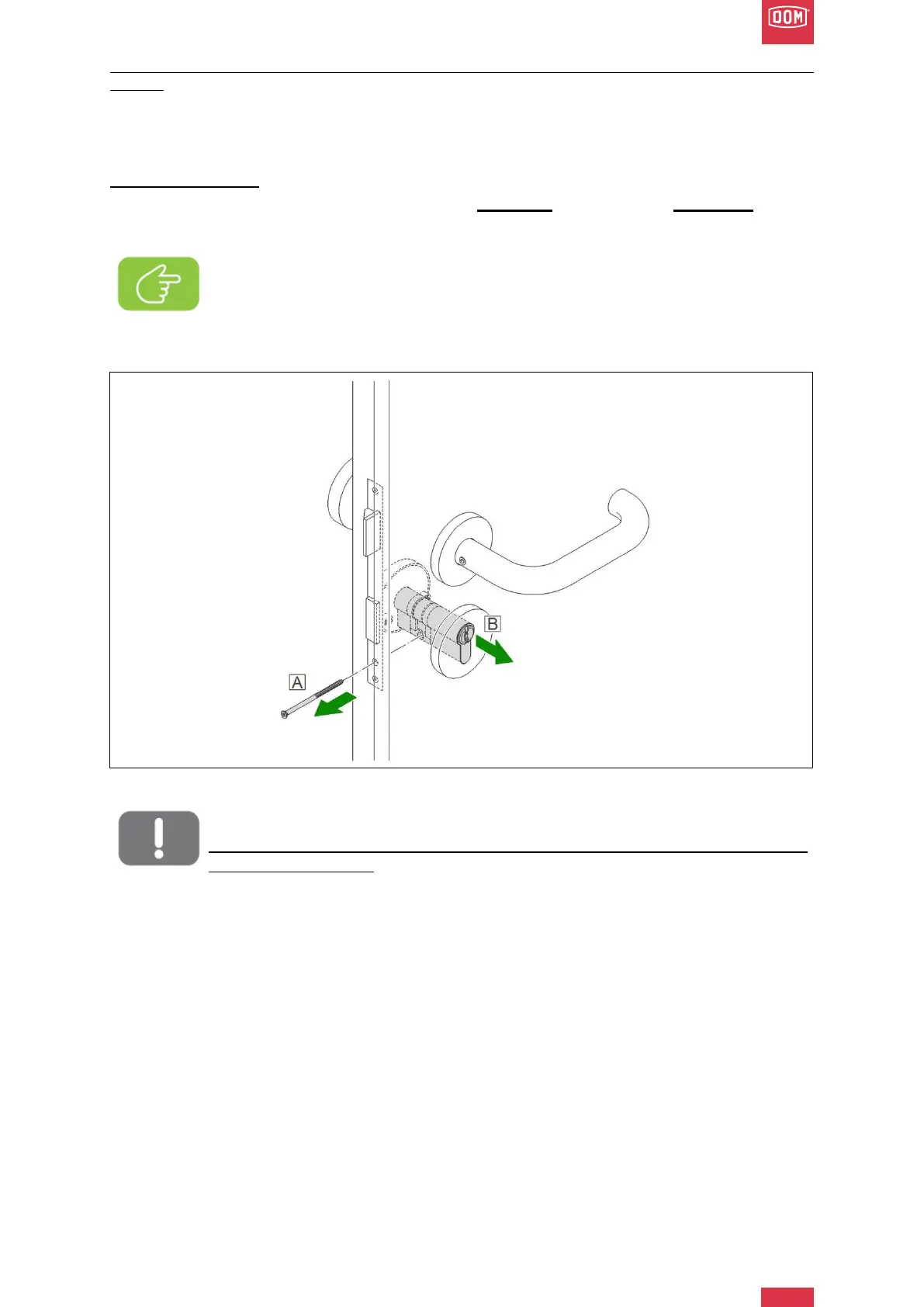

DOM Roq® Fig. 42: Round / Oval Rosette and Spanish Rosette Without Screw Connection Through Inner Rosette
Attention!
Dismounting and mounting should only be executed with the door open and se-
cured against closing.
1. Insert the key into the lock from the inside and then remove the forend screw (fixing
screw of the cylinder). (A)
2. Remove the existing (old) cylinder (B) by turning the key until the locking lug is in the
basic position (flush, 6 o'clock). You will notice that the locking lug is in the basic posi-
tion (flush, 6 o'clock) when you can pull out the cylinder with the key (see also Re-
moving the cylinder, page 12).
Note! The illustrations refer to the shapes (round, oval and spanish rosettes).
The illustration shows a round rosette.
