DOM Roq® Round/Oval Rosette on Both Sides
24
DOM Roq® Smart Lock
Round/Oval Rosette on Both Sides
To mount the DOM Roq® motor unit directly on the door leaf, proceed as follows:

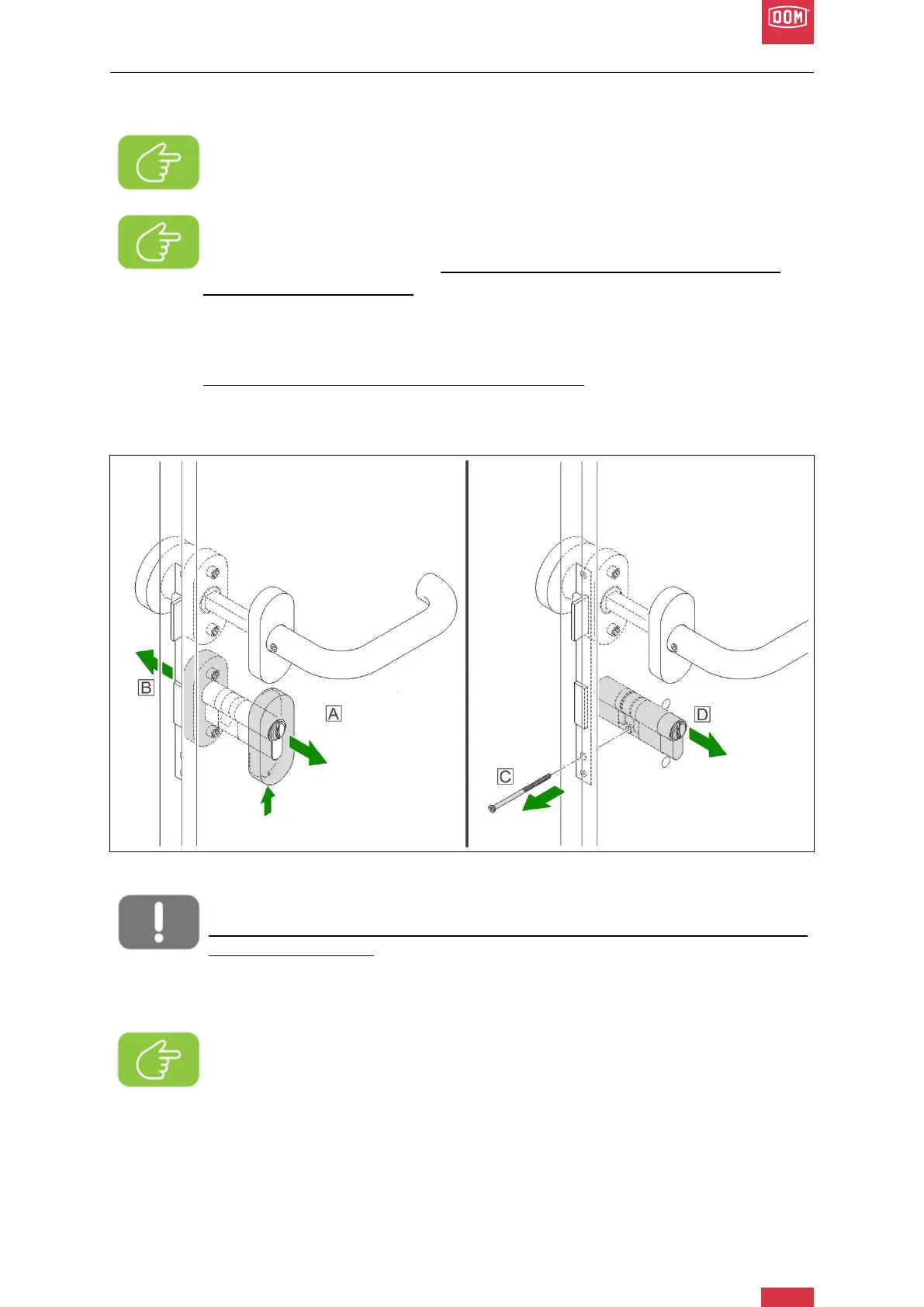

DOM Roq® Fig. 16: Round Oval Rosette on Both Sides
Attention!
Dismounting and mounting should only be executed with the door open and se-
cured against closing.
1. Remove the trim (levering off) with the rosette lifter and the thin wooden strip (to pro-
tect the door leaf). (A)
Note!
The illustrations refer to both shapes (round and oval rosettes). The images dis-
played here are with an oval rosette.
Note!
If you have round/oval rosettes that are each independently fastened to the out-
side and inside of the door leaf and a connection to the outside rosette is not
possible (through-screwing), the installation option round/oval rosette and span-
ish rosette ("without screwing through inside rosette", from page 47) should be
selected if possible. In this case, the DOM Roq® is mounted on the existing in-
ner rosette and screwed to the cylinder.
An adapter kit is required for this kind of mounting!
If this is not possible, contact your DOM specialist dealer.
Note!
If you do not have a rosette lifter, you must "lever off" the trim with the small
slotted screwdriver and the wooden strip (to protect the door leaf). There is a
small slot in the lower part of the trim for this purpose. (see Fig. 16)
