DOM Roq® Round/Oval Rosette on Both Sides
25
DOM Roq® Smart Lock
2. Remove the connecting screws of the base plate of the rosette.
3. Remove the base plate of the inner rosette.
4. Remove the rosette on the outside of the door. (B)
5. Insert the key into the lock cylinder from the inside and then remove the forend screw
(fixing screw of the cylinder). (C)
6. Remove the existing (old) cylinder (D) by turning the key until the locking lug is in the
basic position (flush, 6 o'clock). You will notice that the locking lug is in the basic posi-
tion (flush, 6 o'clock) when you can pull out the cylinder with the key (see also Re-
moving the cylinder, page 12).

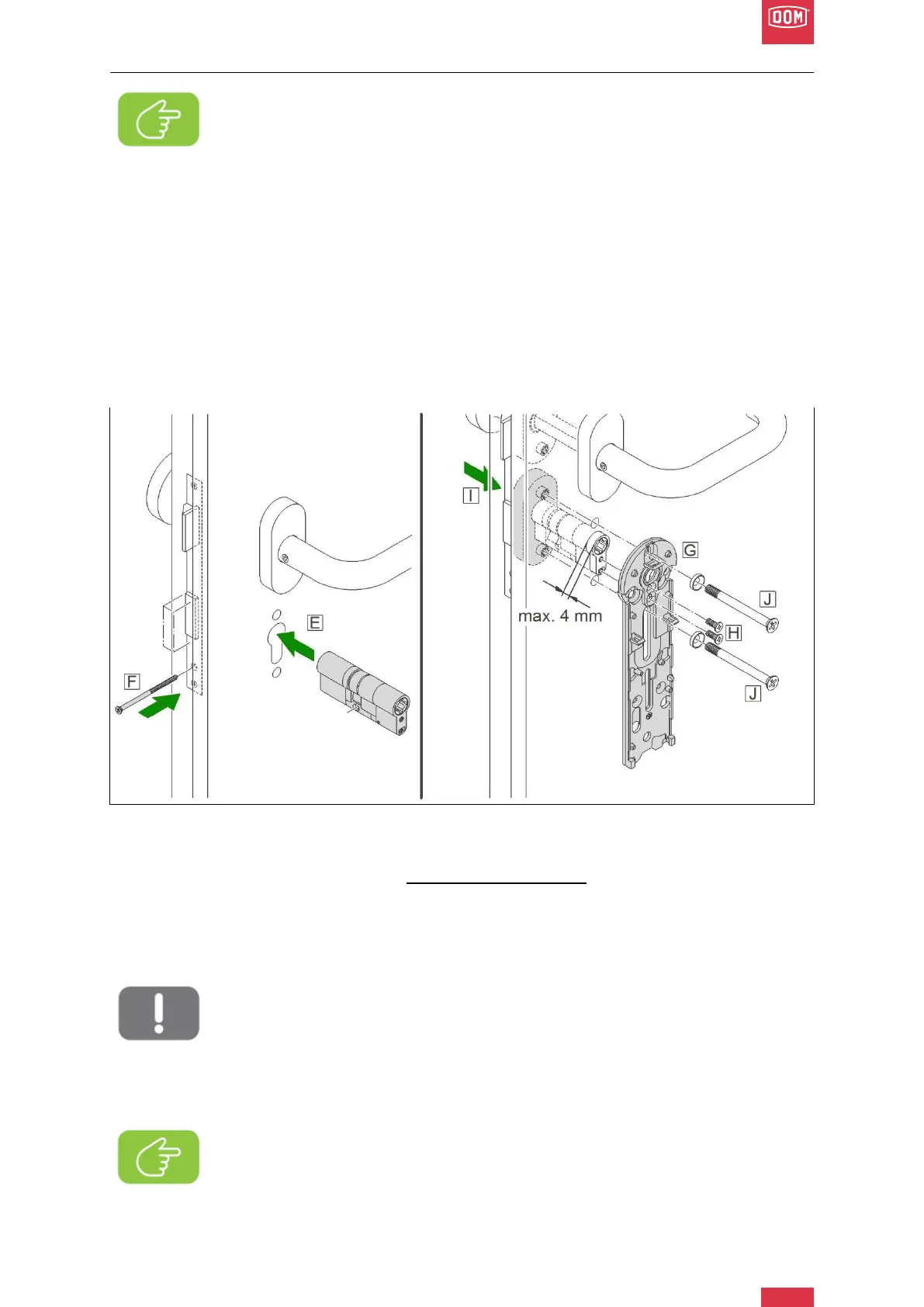

DOM Roq® Fig. 17: Round Oval Rosette on Both Sides
7. Insert new cylinder (with locking lug in home position, page 13) from the inside. (E)
8. Insert the key from the outside (hold it in from the inside).
9. Check from the outside with the key whether the cylinder operates the lock
(no grinding or sluggishness).
10. With the help of the key, move the latch out.
11. Hand-tighten the cylinder with the forend screw. (F)
Attention! Damage due to braced installation.
Make sure that the locking lug does not rub against the side plate of the lock
and that the lock can be easily operated by the cylinder. Otherwise, the cylinder
or the motor unit may be damaged.
12. Retract the latch and remove the key.
13. Check that the cylinder only protrudes a maximum of 4 mm from the door leaf.
Note!
If you have a version with screws through the trim, loosen and remove the
screws and take off the inner and outer fittings (round, oval rosettes) and skip
points 2, 3 and 4.
Note!
The cylinder may only protrude a maximum of 4 mm from the door leaf when
mounted directly on the door leaf. If the cylinder protrudes more than 4 mm,
please contact your DOM specialist dealer.
