Dismounting Motor Unit
Removing the Motor Unit

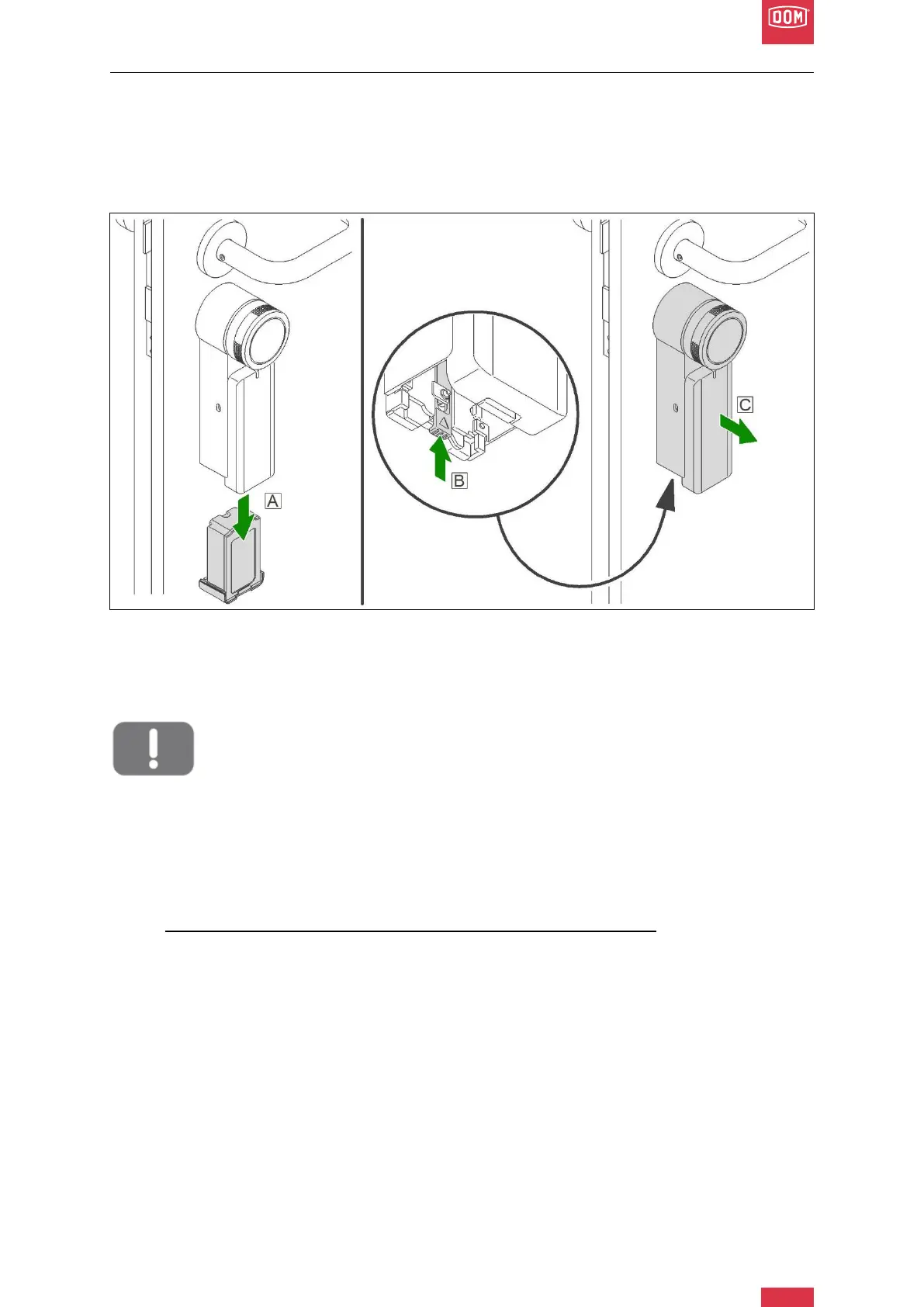

DOM Roq® Fig. 62: Removing the Motor Unit
1. Remove the battery pack from the motor unit. (A) (see page 63)
2. Push the release upwards (B) and keep it pressed.
3. Remove the motor unit. (C)
Make sure that the motor unit is removed in a horizontal direction so that the detents
and the cardan coupling are not damaged.
Attention! Damage due to improper dismounting.
When removing the motor unit, make sure that you keep the lever pressed
down so as not to damage the detents. The cardan coupling between cylinder
and motor unit is only disengaged after approx. 20 mm. After that you can move
the motor unit freely. Dismount this part with care.
DOM accepts no liability for damage caused by improper dismounting.
