DOM Roq® Long Plate with Screw Connection Through Inside Plate
31
DOM Roq® Smart Lock

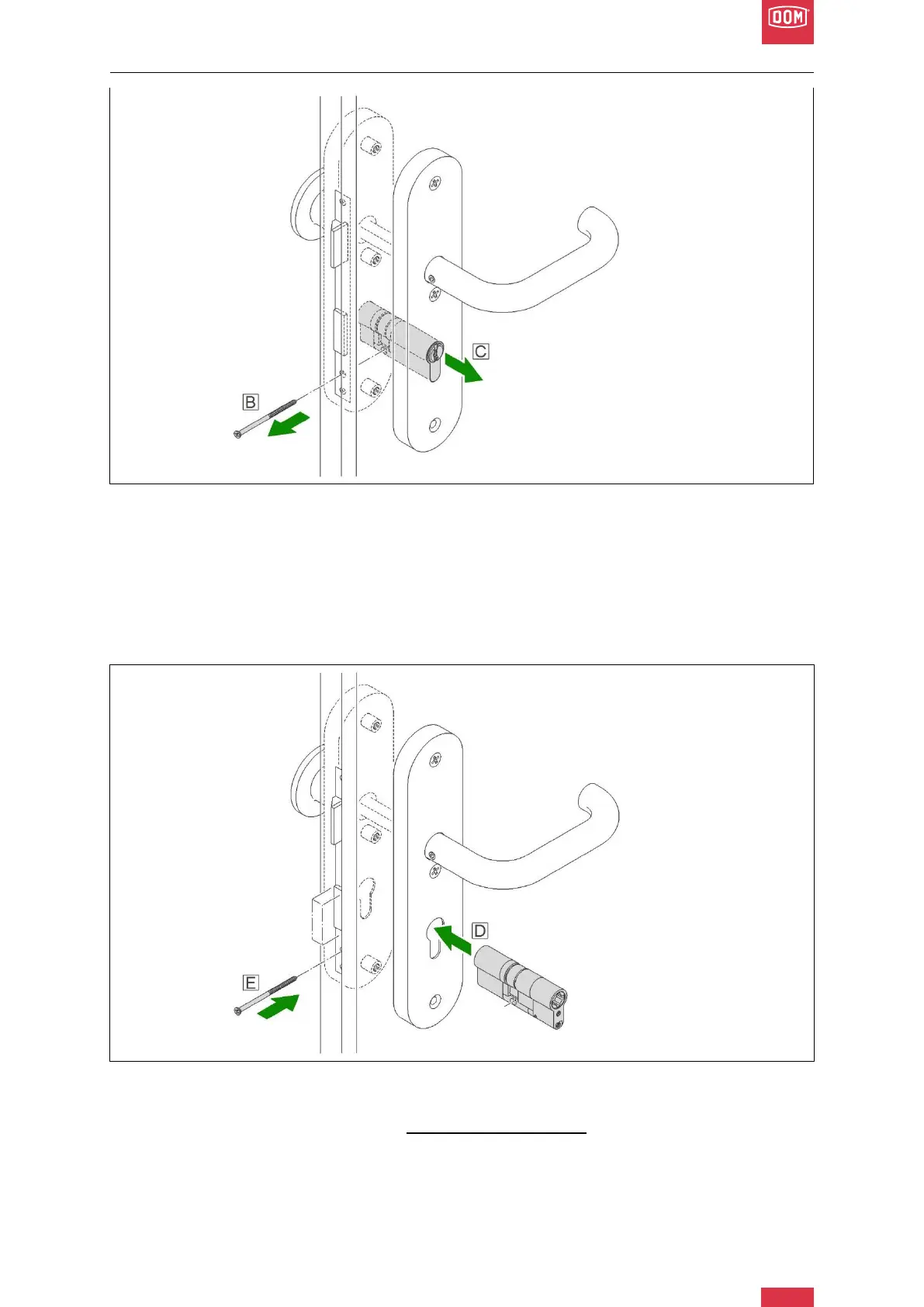

DOM Roq® Fig. 23: Long Plate with Screw Connection Through Inside Plate
2. Insert the key into the lock cylinder from the inside and then remove the forend screw
(fixing screw of the cylinder). (B)
3. Remove the existing (old) cylinder (C) by turning the key until the locking lug is in the
basic position (flush, 6 o'clock). You will notice that the locking lug is in the basic posi-
tion (flush, 6 o'clock) when you can pull out the cylinder with the key (see also Re-
moving the cylinder, page 12).
DOM Roq® Fig. 24: Long Plate with Screw Connection Through Inside Plate
4. Insert new cylinder (with closing lug in home position, page 13) from the inside. (D)
5. Insert the key from the outside (hold it in from the inside).
6. Check from the outside with the key whether the cylinder operates the lock
(no grinding or sluggishness).
