DOM Roq® Mounting Directly on Door Leaf
19
DOM Roq® Smart Lock
13. Place the base plate on the cylinder. (G)
14. Fix the base plate to the cylinder with two M4 screws. (H)
Attention!
For a cylinder protrusion of 1 to max. 4 mm (from the base plate) use the
screws M4x12 mm, for a cylinder protrusion of less than 1mm (from the base
plate), use the screws M4x16 mm.
Tighten these screws only until there is no more play (screws are provided with
a screw locking adhesive).
The screws may only be tightened until the base plate rests on the door leaf
without pulling the cylinder out towards the base plate.
15. Fix the base plate to the outside fitting with DOM Roq® connecting countersunk
screws M5 / M6 and correspondingly matching countersunk washer through the door
in the lower fixing point of the fitting. (I)
DOM Roq® Fig. 11: Long Plate Inside and Outside

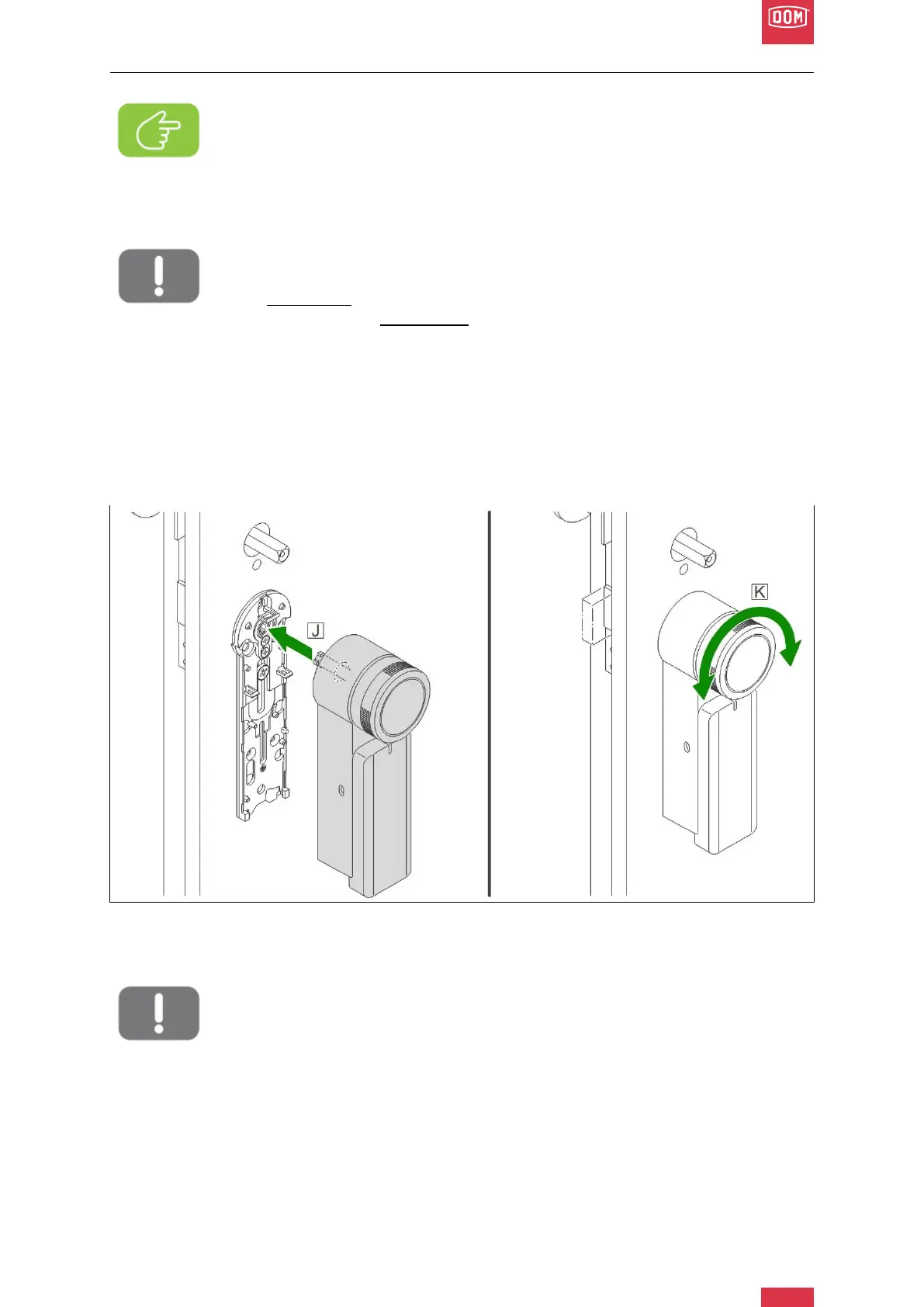

16. Place the motor unit on the base plate and press lightly (>Click< , base plate is
locked with the 3 protruding brackets). (J)
Attention! Damage due to improper fitting.
When fitting the motor unit, make sure that the components are in the correct
position (inner part cylinder, motor unit cardan shaft). Do not join the motor unit
and the base plate together with violence or great force.
DOM accepts no liability for damage caused by improper installation.
17. Turn the handwheel to check whether the bolt can be moved in and out of the lock
and whether the deadbolt can be moved. (K)
(This checks whether the cross of the cardan shaft has been inserted positively into
the matching inner part of the cylinder).
Note!
The cylinder may only protrude a maximum of 4 mm from the door leaf when
mounted directly on the door leaf. If the cylinder protrudes more than 4 mm,
please contact your DOM specialist dealer.
