1.6 Postal Lock Installation
At some locations, such as gated communities, it will be necessary to provide access to the mail carrier so that they can
deliver the mail. Mail carrier access will be provided by the installation of an Arrow Postal Lock. This is the same lock that the
Post Office uses for gang mailboxes. These locks are not available to the public. The installer or the building owner/manager
will have to call the Post Office and arrange for the installation of this lock into the telephone entry system. All DoorKing
commercial telephone entry systems are designed to accept installation of the postal lock.
Prior to installation of the postal lock, be sure power to the telephone entry system is turned OFF.

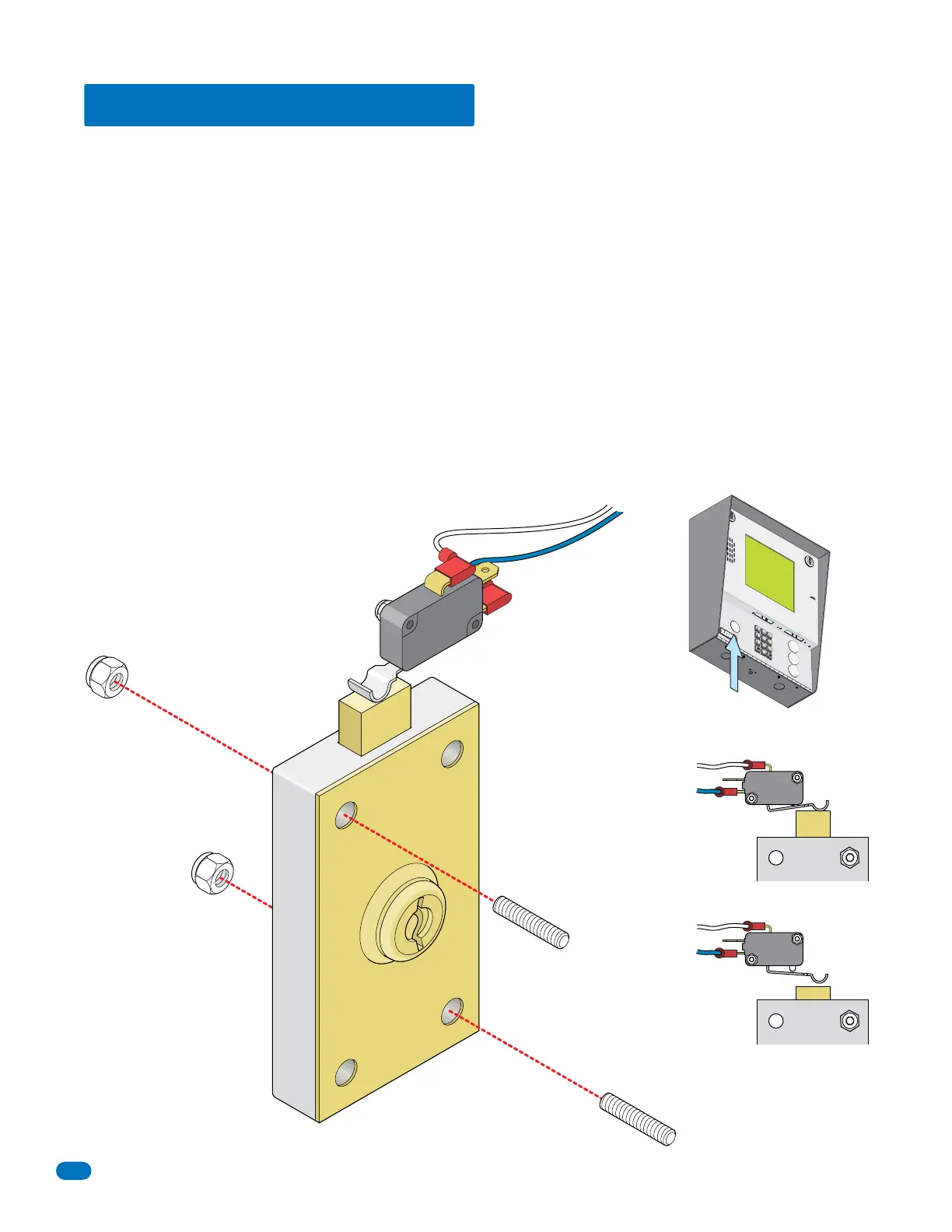

1. Remove the hole plug on the faceplate of the telephone entry system.
2. Cut the wire tie wrapped around the switch ONLY when installing postal lock.
3. Remove the two hex nuts from the postal lock-mounting studs. Mount postal lock on the studs and secure with the hex nuts.
When the lock is installed, the pawl of the lock, in the extended position is depressing the switch. When the mail carrier inserts
his key and turns the postal lock, the pawl is withdrawn into the lock and the switch will activate the relay for the programmed
strike time, that has been programmed for this feature.
Factory default settings for the Postal Lock Switch: After the key has been turned, Relay 1 will activate (section 3.3.4) for One
(1) second of strike time (section 3.3.1). The switch input feature (section 3.2.7) is factory set to “activate a relay” and not “dial
a phone number”.
A
Z
CALL
7
8
9
4
5
6
1
2
3
0
O
PE
R
O
P
ER
W
XY
Z
W
X
Y
Z
T
U
V
T
U
V
P
Q
R
S
P
Q
R
S
M
N
O
M
N
O
JK
L
J
K
L
G
H
I
G
H
I
D
EF
D
EF
A
B
C
A
B
C
S
P
SP
Hole Plug
Nylon Hex Nuts (Existing)
Existing postal lock-mounting studs
located inside the faceplate of
the telephone entry system.
Prewired
Postal Lock
Switch
Pawl
NC
Blue Wire
White Wire
Co
m
Extended Pawl
Com
NC
Withdrawn Pawl
Relay Activates
Com
NC
