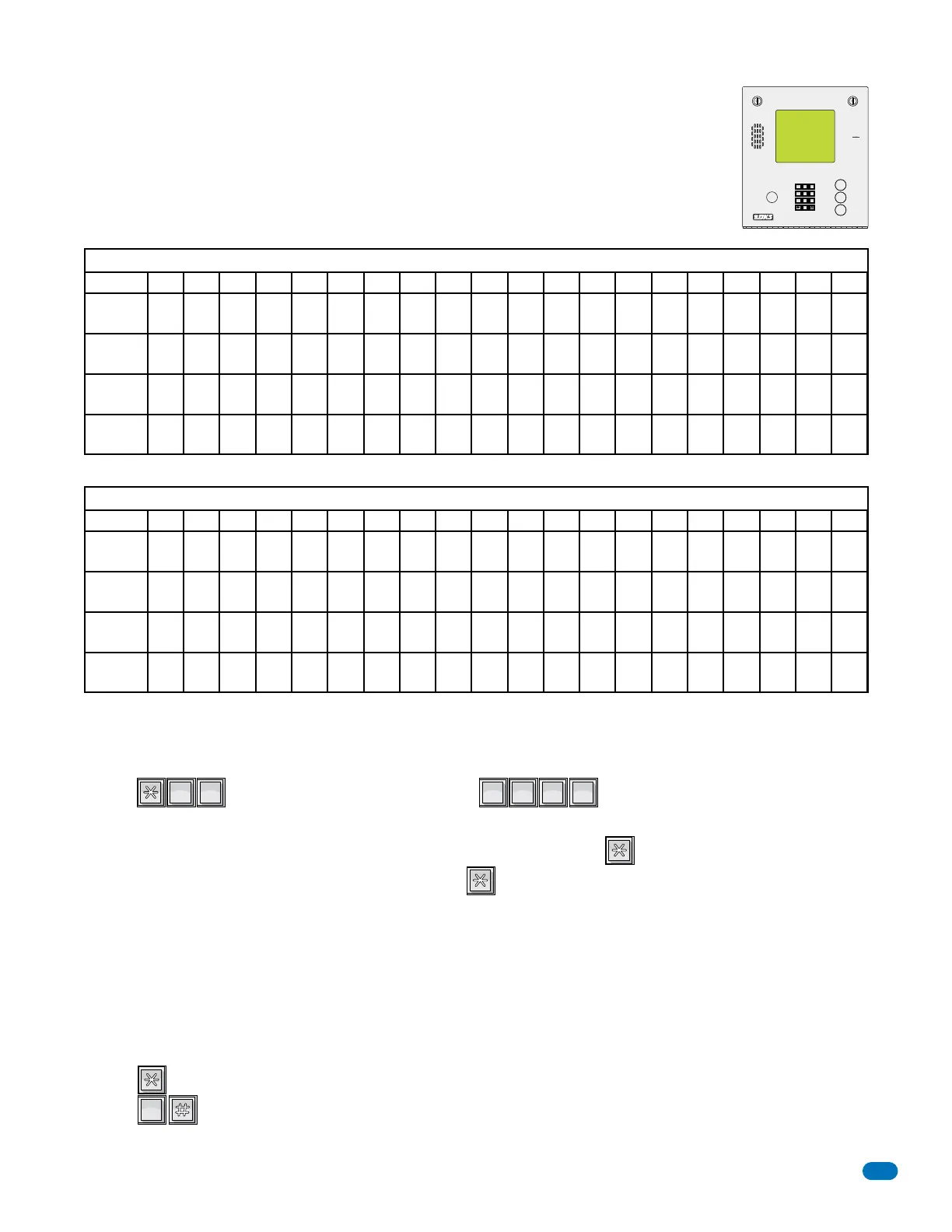

The instruction message is displayed on the bottom four lines of the 1837 display. This message can be a
maximum of 80 characters (spaces count as a character) and is entered into the system memory in four
blocks. The example below shows how the sample message was divided into four blocks and centered on
the screen. Use the blank table to organize your own message. Only upper case letters, numbers and
spaces can be programmed from the system keypad.
Factory Default Instruction Message: Use A-Z to Find Name Or Number - Enter Code On Keypad - Busy
Press Any Key - Try Again.
After organizing the instruction message in the table above, follow the instructions below to enter the message into the system.
After each desired letter, number or space is displayed on the directory, remember to press
*
to enter that character. Spaces
count as a character and must be entered into memory as a character. After a complete block of characters (including spaces)
has been entered, press
*
to enter the block, then start the next block.
Note: The factory default message was programmed from a PC, therefore upper and lower case letters are displayed.
Example: USE A Z TO FIND NAME OR NUMBER ENTER CODE ON KEYPAD BUSY PRESS ANY KEY TRY AGAIN
Block 1
Block 2
Block 3
Block 4
12345678 9 101112131415161718 19 20
USE A Z TO F IND NAME
OR NUMBER ENTER CODE
ON KEYPAD BUSY PRESS
ANY KEY TRY AGA I N
Block 1
Block 2
Block 3
Block 4
12345678 9 101112131415161718 19 20
1. Press and enter your four-digit MASTER CODE (beep).
The LCD display on the 1837 system will read: BLOCK 1.
2. Enter the characters into block 1 (refer to 3.4.1 for reference). Remember to press (beep) after each character.
3. After the last character in the block has been entered, press (beep) to enter the entire block.
The LCD display will read: BLOCK 2.
4. Repeat steps 2 and 3 to enter characters into block 2.
The LCD display will read: BLOCK 3.
5. Repeat steps 2 and 3 to enter characters into block 3.
The LCD display will read: BLOCK 4.
6. Repeat steps 2 and 3 to enter characters into block 4.
7. Press (beep) to enter all four blocks into the system memory.
8. Press together to end this programming sequence (beeeeeep).
9. The new user message will be centered on the screen.
?
?
?
?
?
?
?
?
1
1
SP
SP
8
8
TUV
TUV
0
0
OPER
OPER
3.4.5 Programming the Instruction Message – 1837 System
