1835-065-D-5-17
34

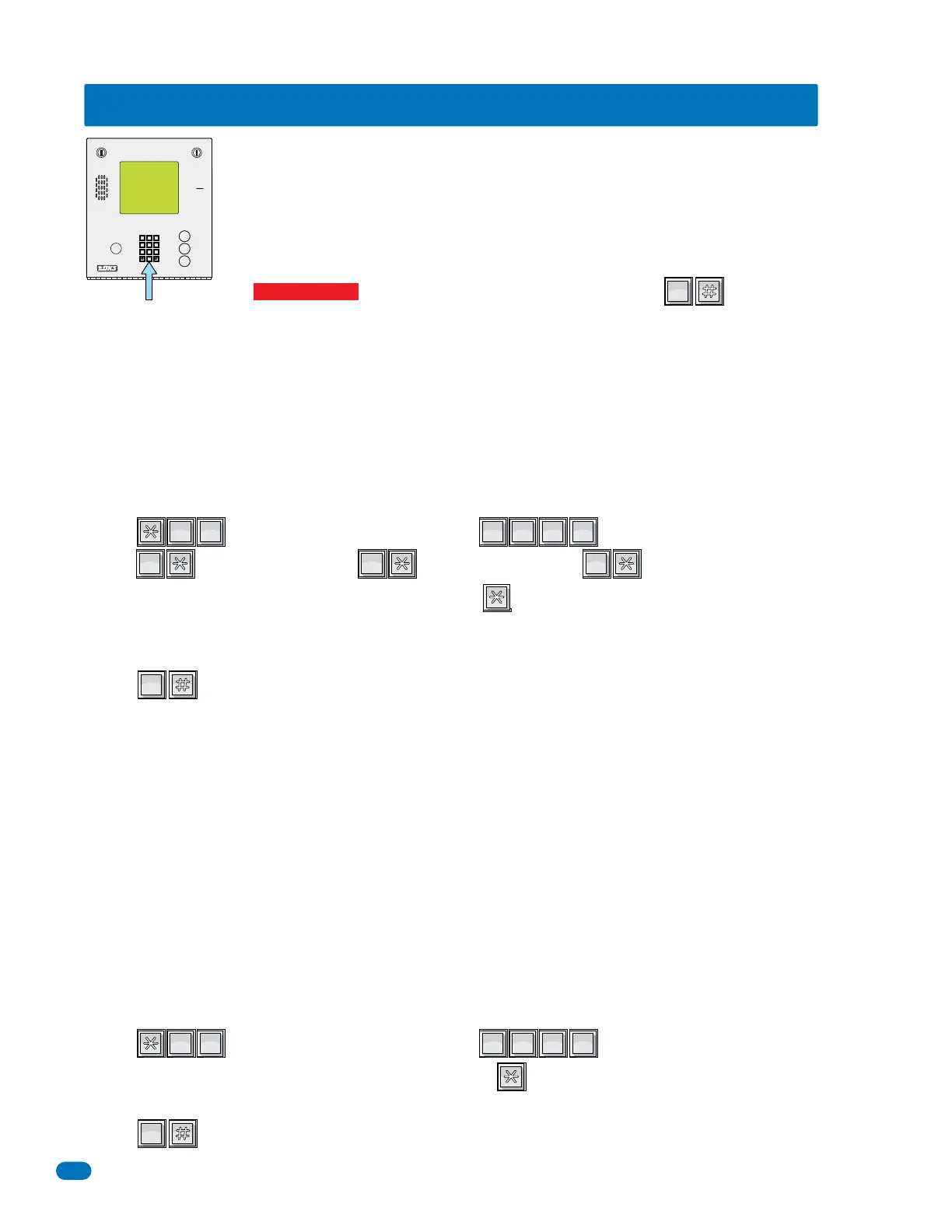

3.3 General Programming Using the System Keypad
System Keypad
Proceed with the programming steps on the following pages ONLY IF PC programming WILL NOT be
used. The system keypad may be used to program some features on the telephone entry system but can
be a little tedious to use. We strongly suggest that you become familiar with the programming steps in
each feature you want to use BEFORE actually programming the system.
These steps will program Relay 0, Relay 1 and Relay 2 strike times. Strike times can be programmed from 1/4 second up to 99
seconds by entering the desired time in seconds as a two-digit number in step 3. If Expansion boards are going to be used with
this system, set Relay 2 strike time to 00 for Expansion boards 1-8. If more than 8 Expansion boards are being used, set Relay
1 strike time to 00 (for Expansion boards 9-16) and then set Relay 0 strike time for the desired time in seconds. In this applica-
tion, Relay 0 becomes the PRIMARY relay that will open the door or gate after the resident presses 9 on their telephone.
Factory setting for relay strike times are: Relay 0 = 01 (1 sec), Relay 1 = 01 (1 sec), Relay 2 = 01 (1 sec).
3.3.1 Relay Strike Time
This programming sequence sets the maximum time allowed for conversation when the entry system places a call to the
resident. The talk time can be set from 1 second up to 255 seconds (4 minutes, 15 seconds) and is entered as a three-digit
number in step 3. The talk time set here DOES NOT affect the telephone numbers that are programmed under directory codes 0,
00, 000, 0000 and 1, 01, 001, 0001. The talk time for these two directory code sets are factory set to the maximum. Phone
numbers programmed under these directory codes should be reserved for management or emergency phone numbers that
generally require longer conversations.
Factory setting for talk time = 060 (60 seconds).
3.3.2 Talk Time
7
7
8
8
9
9
4
4
5
5
6
6
1
1
2
2
3
3
0
0
OPER
OPER
WXYZ
WXYZ
TUV
TUV
PQRS
PQRS
MNO
MNO
JKL
JKL
GHI
GHI
DEF
DEF
ABC
ABC
SP
SP
CALL
Z
A
1. Press and enter your four-digit MASTER CODE (beep).
2. Press (beep) to set Relay 0, OR (beep) to set Relay 1, OR (beep) to set Relay 2 strike time.
3. Enter the two-digit strike time in seconds (00-99), then press (beep).
(Example: 1/4 second - enter 00, 1 second - enter 01 etc.)
4. Repeat steps 2 and 3 to set other relay strike times.
5. Press together to end this programming sequence (beeeeeep).
?
?
?
?
?
?
?
?
3
3
DEF
DEF
0
0
OPER
OPER
0
0
OPER
OPER
1
1
SP
SP
2
2
ABC
ABC
0
0
OPER
OPER
1. Press and enter your four-digit MASTER CODE (beep).
2. Enter the three-digit talk time in seconds (001-255), then press (beep).
(Example: 1 second - enter 001, 20 seconds - enter 020 etc.)
3. Press together to end this programming sequence (beeeeeep).
?
?
?
?
?
?
?
?
8
8
TUV
TUV
0
0
OPER
OPER
0
0
OPER
OPER
Important Note: If you make a mistake while programming, press keys at the same time
to escape from programming no matter how much has been completed, then begin again at step 1.
0
0
OPER
OPER
