Operation Section
-55-

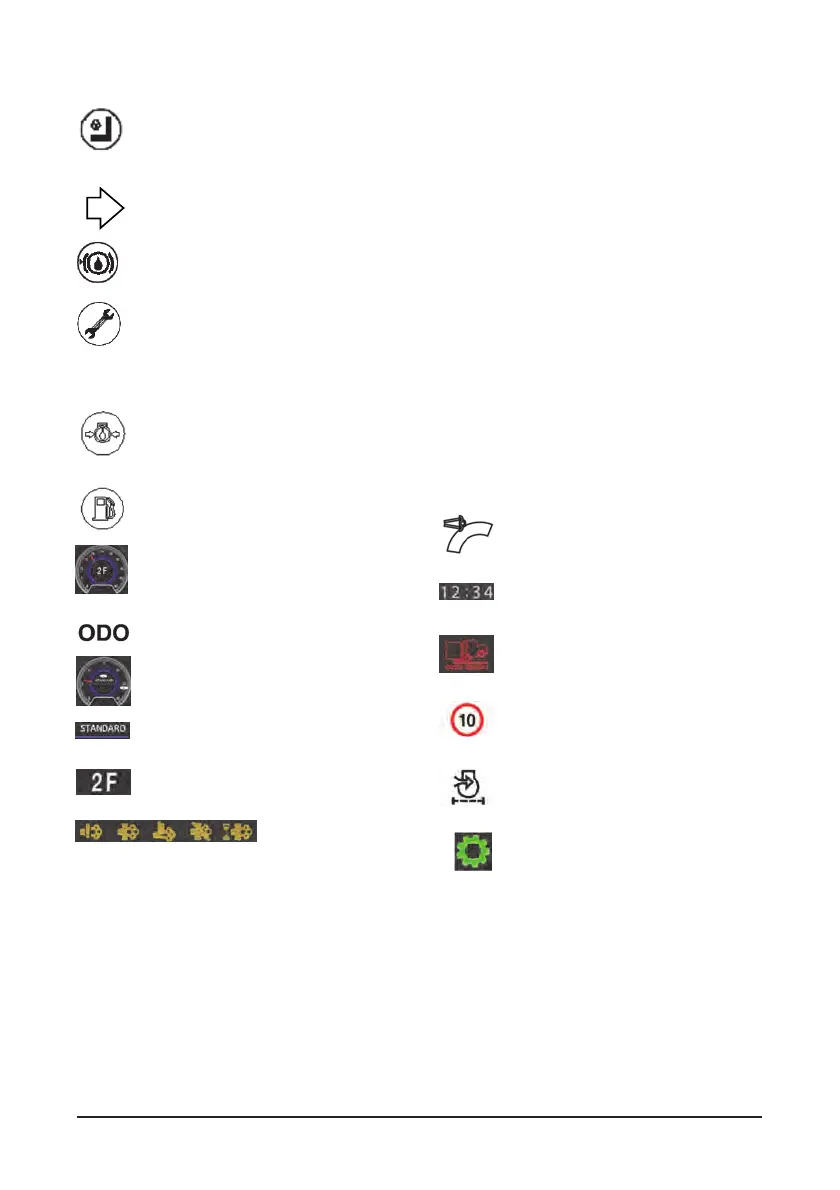

13. Mast Interlock – Alarm warning lights
when operator leaves the seat without
applying parking brake and then, operation
of mast is automatically interrupted.
14. Directional Turning Indicator Light
15. Brake oil level – Brake oil level Lamp
indicates when the brake oil level is low.
16. ECT Malfunction Warning Lamp (if
installed) – electronic transmission control
system has a built-in diagnosis system. If a
failure occurs, the electronic transmission control
system reports the operator of the failure code by the
number of flashes with the malfunction warning lamp.
17. Engine Oil Pressure Warning Lamp
– The warning lamp will light up if the
engine oil is short or the pressure is low.
18. Fuel Warning Lamp – The warning
lamp will light up to warn the operator to
refuel.
19. Speedometer – Shows vehicle speed
20. Odometer – Shows vehicle run time
21. Engine rpm gauge – Shows engine
rpm speed
22. Vehicle mode – Shows Vehicle mode
(High, Standard, ECO)
23. T/M Gear inform – Shows T/M Gear
state
24. After treatment
indicator – Shows
After treatment warning and inform.
When this waring lamp is on, refer to topic “operation
section - after staring the engine - Electronic
Controlled Diesel Engines.
1) SCR fault warning lamp: When the first lamp is
on, check the SCR system.
2) SCR cleaning lamp: The SCR system shall be
initialized on a regular basis to maintain the
emission purification efficiency at an adequate
level. This process is called SCR cleaning. When
the second lamp is on, start the SCR cleaning
process, during which the vehicle shall not be
used. The lamp lights up with a message popping
up 10 hours prior to the required timing of SCR
cleaning. The cleaning process takes about 30
minutes, with this lamp flickering. Press the
cleaning switch for about 3 seconds to start the
cleaning process.
3) High-temperature exhaust lamp: During SCR
cleaning the temperature of exhaust emissions
exceeds 600C. When this lamp light on, the
operator shall warn other people around not to
approach the vehicle or touch the exhaust
system, particularly at the back of the vehicle. If
there is any flammable substance such as gas or
particles around the vehicle, move it to a safe
place.
4) SCR cleaning inhibition lamp: One you press the
inhibition switch, this lamp lights up and the SCR
process is suspended. When in a place with
flammable substances or dust, you shall press
the inhibition switch to prevent any fire or
explosion that can be caused by high
temperature emissions.
25. Regen gauge – Shows DPF Soot or
DeSox Level
26. Clock – Shows Time
27. Weight scale indicator (Optional) –
Shows weight and over weight warning
28. Speed limit indicator – Shows limit
speed
29. Air cleaner indicator – If it on, need
to change the air filter
30. TM option indicator – When the TM
option is on, it is on.
