Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
20 - Version date: Nov. 01, 2013 - N° doc.: 30204400-B

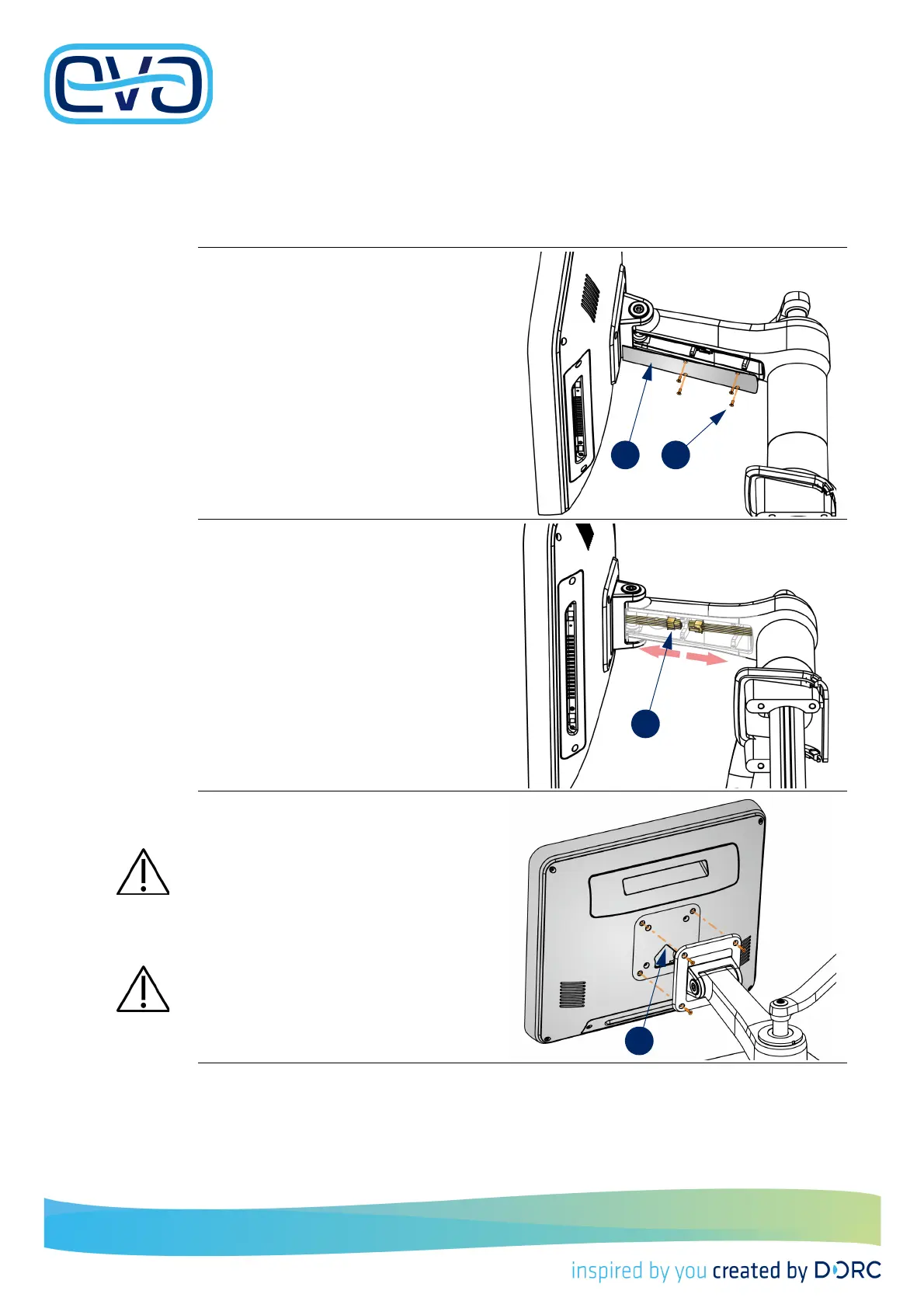

2.7.6 Panel PC
This paragraph describes the disassembly of the panel PC. Assembling is carried out in the
opposite way.
1. Unscrew the 4 screws at the bottom site
of the panel PC arm.
2. Remove the cover plate.
3. Disconnect the cable connectors in side
the panel PC arm.
4. Unscrew the 4 screws of the panel PC.
Support the panel PC during
unscrewing
.
5. Remove the panel PC.
Carefully pull out the cable
out of the arm
.
