Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 17

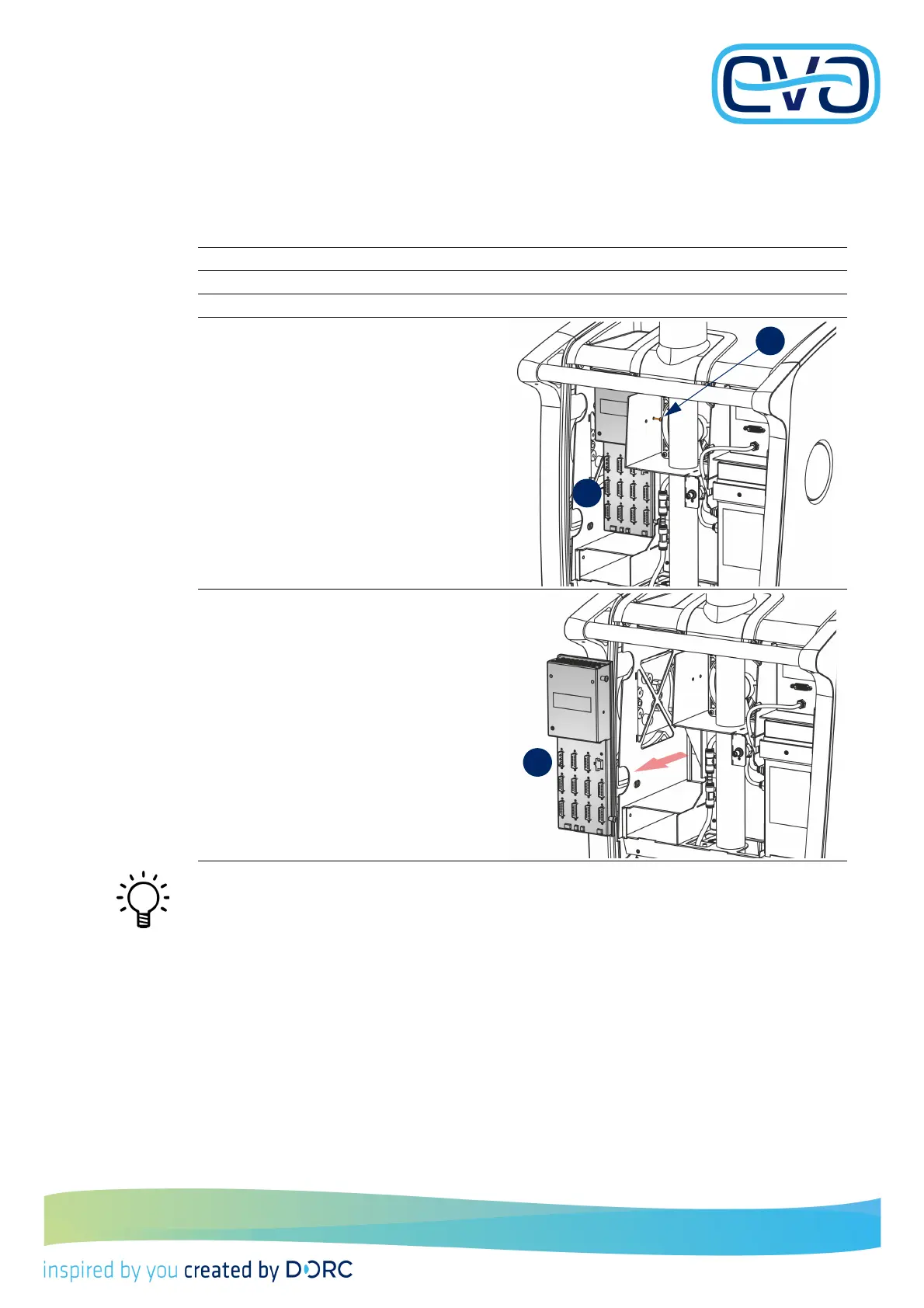

2.7.3 Main board
This paragraph describes the disassembly of the main board. Assembling is carried out in the
opposite way.
There is no specific order in the connection place of the CAN cables to
the main board. Choose the most logic place to connect each cable.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove all connectors out of the main
board.
5. Unscrew the screw behind the fan.
6. Remove the main board.
