Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
18 - Version date: Nov. 01, 2013 - N° doc.: 30204400-B

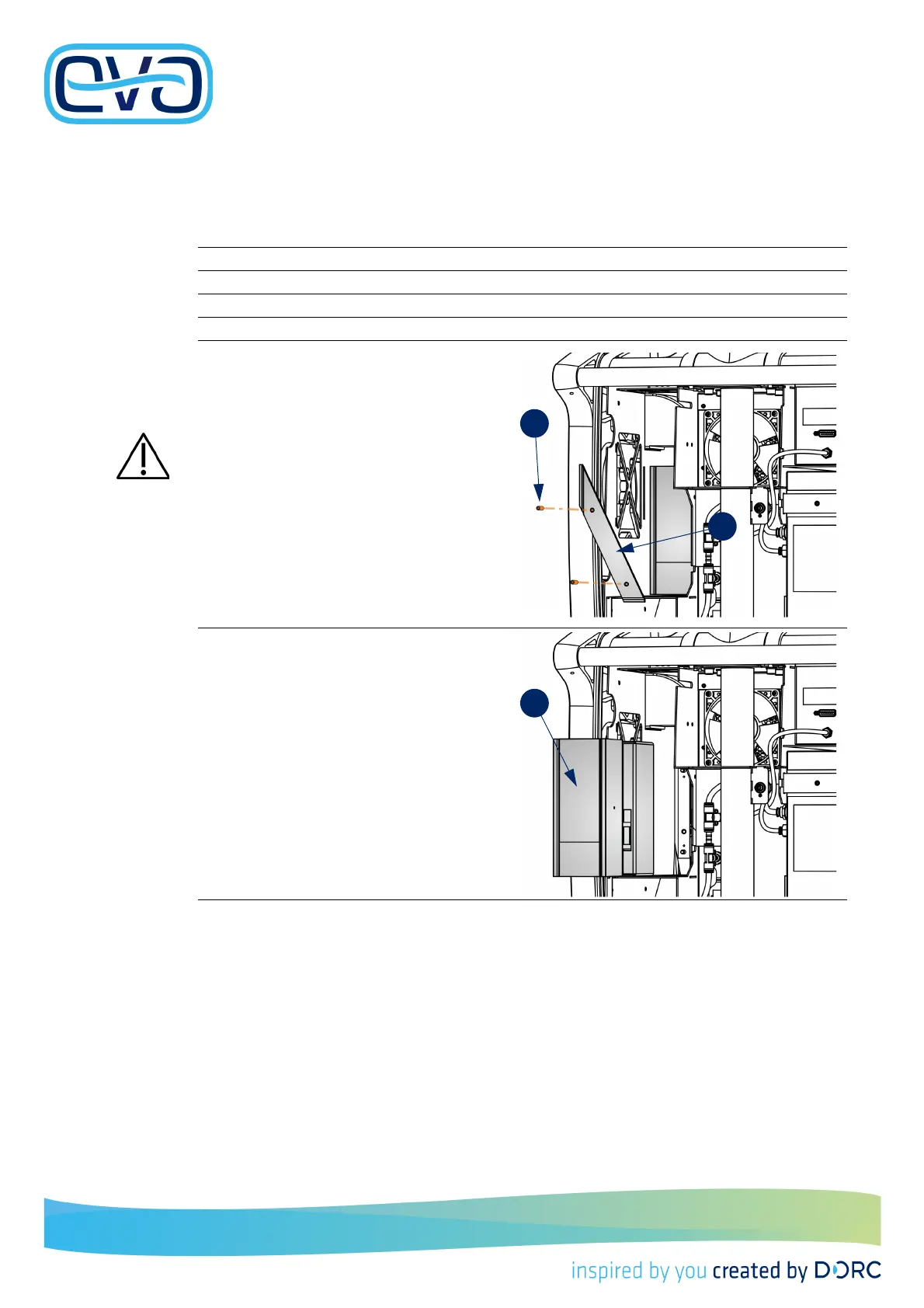

2.7.4 Illumination
This paragraph describes the disassembly of the Illumination module. Assembling is carried
out in the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the main board as described in par. 2.7.3, page 17.
5. Unscrew the 2 set screws of the lock
strip.
6. Remove the lock strip.
The set screw is mounted with
locking agent (Threebond normal
1374).
Assemble the set screw with
Threebond.
7. Remove the earth cable (not visible in the
picture).
8. Remove the CAN cable (not visible in the
picture).
9. Remove the Illumination module.
