Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
24 - Version date: Nov. 01, 2013 - N° doc.: 30204400-B
2.7.9 Vitrectome module

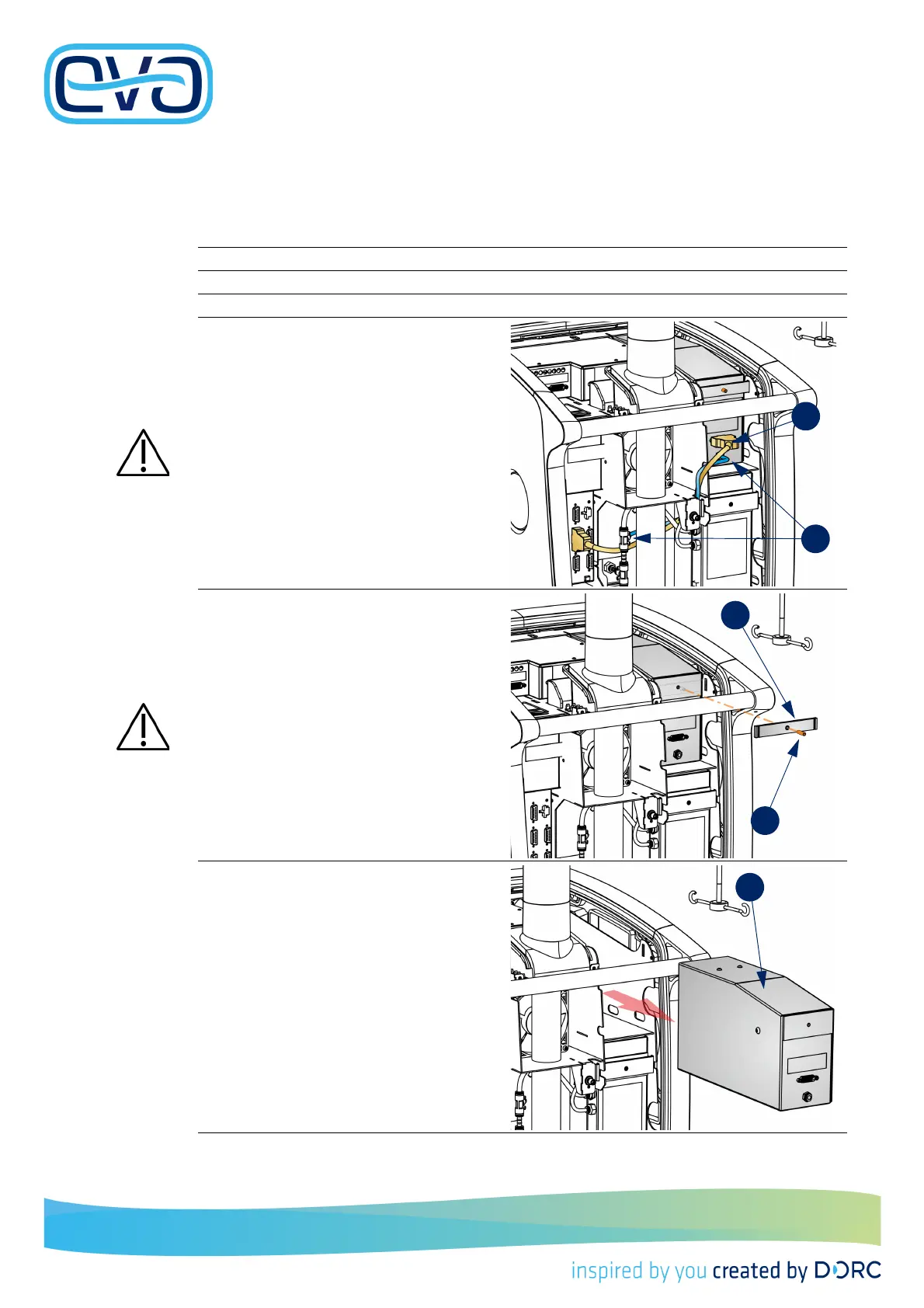

This paragraph describes the disassembly of the Vitrectomy module. Assembling is carried
out in the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the air connection.
Beware the system may still be
under pressure.
5. Remove the CAN cable.
6. Unscrew the set screw of the lock strip.
7. Remove the lock strip.
The set screw is mounted with
locking agent (Threebond normal
1374).
Assemble the set screw with
Threebond.
8. Remove the Vitrectome module.
